Transaxle Oil

Transaxle oil

Operation number: 43107-2






Check

Remove the left front wheel. Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

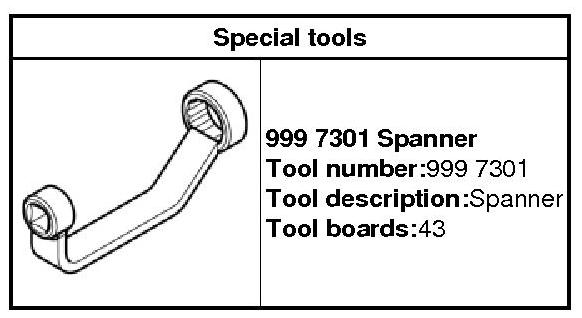

999 7301 Spanner 999 7301 Spanner




Follow the instructions regarding transmission lubricant Refer to: Lubrication transmission Tools and Equipment

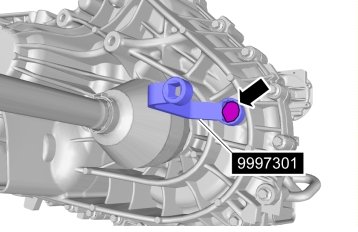

999 7301 Spanner 999 7301 Spanner
Torque: Level plug, gearbox, 35 Nm





Install the left front wheel Refer to: Wheels Service and Repair
