Connectors Transmission, Disconnecting/Connecting

Connectors transmission, disconnecting/connecting

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Preparatory work

Removing the air cleaner (ACL) module
Ignition off.
Remove the air cleaner (ACL) module. Service and Repair

Disassembly

Disassembling connectors





Note! Ensure that the area around the connectors is clean.

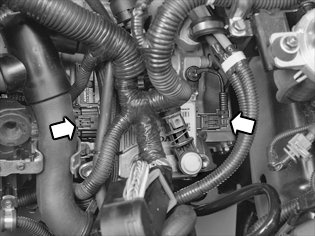

Disconnect the connectors from the control module.

Note! Do not touch the contact strips on the connectors or the control module pins with your fingers.

Assembly

Assembling the connector
Connect the connectors. Ensure that the catches for the connectors are in their positions.

Finishing

Installing the air cleaner (ACL) module
Install the air cleaner (ACL) module. Service and Repair
