Top Panel Geartronic, Replacing

Top panel Geartronic, replacing

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work
Removing components
Remove:
- the center console. See: Center console, replacing
- the gear selector knob. See: Gear selector knob, replacing.
Removal

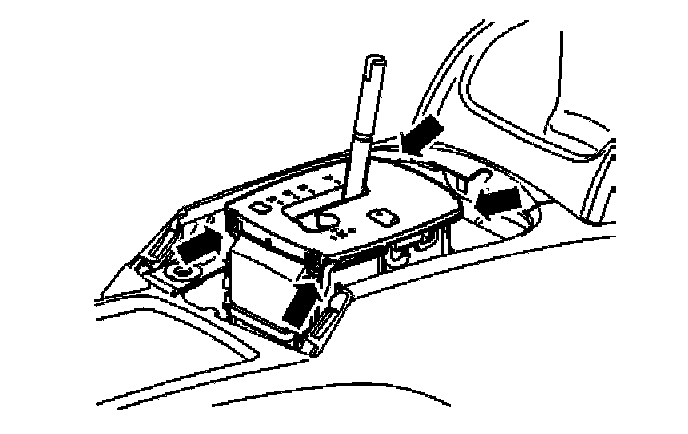

Removing the top panel





Carefully disconnect the four snap fasteners. Lift out the panel.

Caution: When the panel has been removed, a printed circuit board is visible. Do not touch the printed circuit board. Risk of electrostatic discharge.

Installation

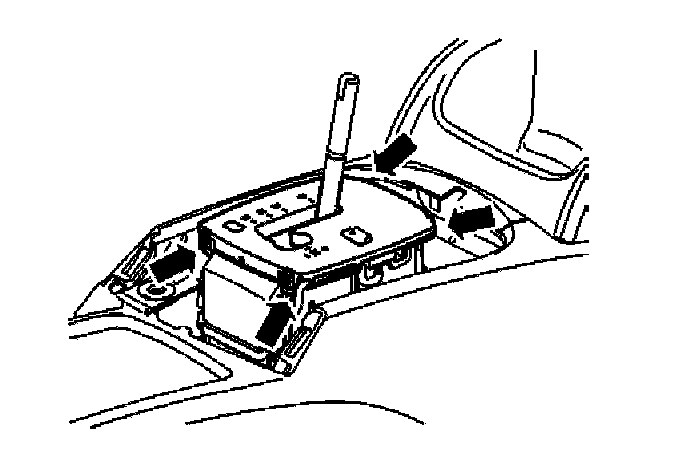

Installing the top panel Check that there is no dirt on the printed circuit board. Position the panel. Press the four snap fasteners into place in each corner.

Finishing
Installing components
Install:
- the gear selector knob. See: Gear selector knob, replacing
- the center console. See: Center console, replacing -
