Transmission Control Module (TCM)

Transmission Control Module (TCM)

Operation number: 43715-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Preparatory work

Information

Caution! The software can only be ordered when the control module is installed in the vehicle. VIDA reads off the new control module identity which is required to order the correct software.

Caution! Wait one minute after the ignition has been switched off. The main relay must be voltage free before the control module can be removed from the car. If the engine cooling fan runs on after the ignition has been switched off, wait until it stops. Then wait a further minute.

Removing the negative lead and the air cleaner (ACL) module




Ignition off.

Note! Shift the gear selector lever to neutral.

Disconnect the battery negative cable. See: Battery Disconnecting

Removal

Removing the air cleaner (ACL) module
Remove the air cleaner (ACL) module. Service and Repair

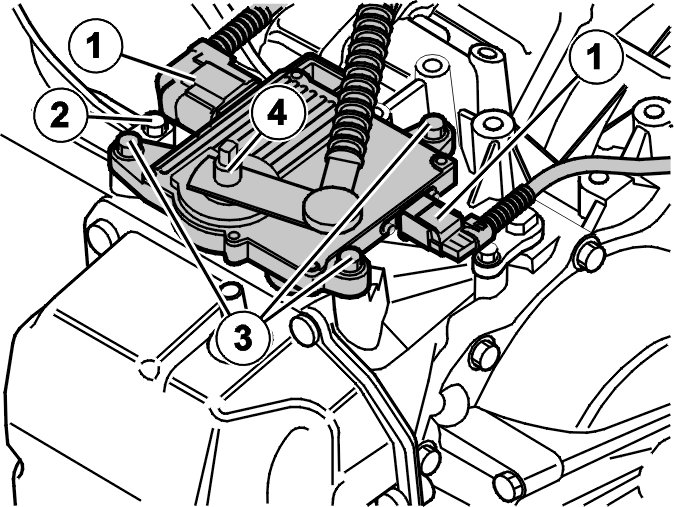

Removing transmission control module (TCM)





Caution! Do not touch the control module terminal pins with your fingers. Static electricity (electric static discharge - ESD) may damage components in the control module.

Remove:
- the 2 connectors (1)
- the M8 screw for the bracket (2)
- the bracket
- the 3 M8 screws (3)
- the nut (4)
- the lever
- the control module. Do not damage the terminal pins.

Installation

Note! For tightening torques, see Specifications. Tightening Torque.

Installing transmission control module (TCM)

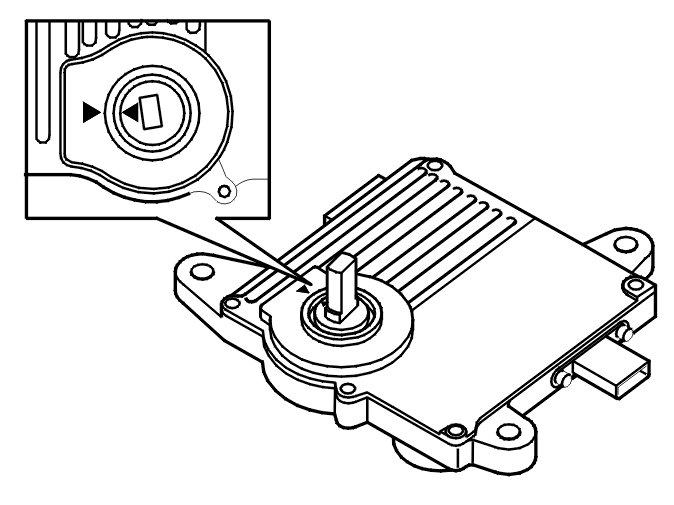

Note! Ensure that the arrows are opposite each other.

Note! Shift the gear selector lever to neutral.

Install:
- the control module. Do not damage the terminal pins
- the 3 x M8 screws
- the bracket
- the M8 screw for the bracket
- the 2 connectors
- the lever, 1 nut. Tighten. See Specifications. Tightening Torque.
- the battery negative cable. See: Battery Disconnecting

Installing the air cleaner (ACL) module
Install the air cleaner (ACL) module. Service and Repair

Finishing

Ordering software
Order software according to: Programming and Relearning






Checking diagnostic trouble codes (DTCs)
Check that no diagnostic trouble codes have been stored during the repair.

Calibrating the gear-shift position sensor
Calibrate the gear-shift position sensor according to transmission control module (TCM).
