ABS/TCS - New Hydraulic Control Unit
TIE - Technical JournalTitle Brake system hydraulic unit for DSTC, new spare parts available
Ref No US22178.1.1 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 5930 Func Desc anti-lock brake (anti-skid)
Status Released
Status Date 2010-09-07
Issue Date 2010-09-02
Reference VIDA, VSTG
ATTACHMENT

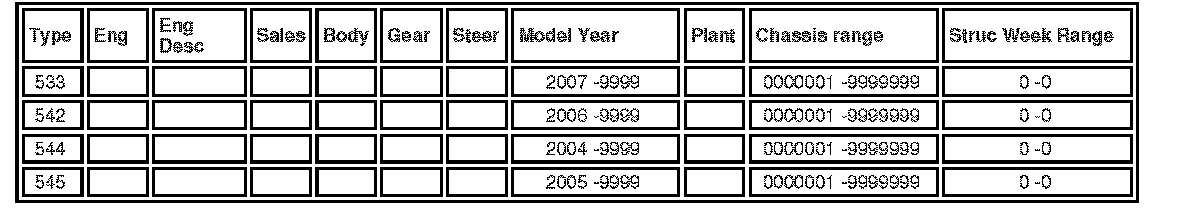

VEHICLE TYPE
CSC
DTC
Text

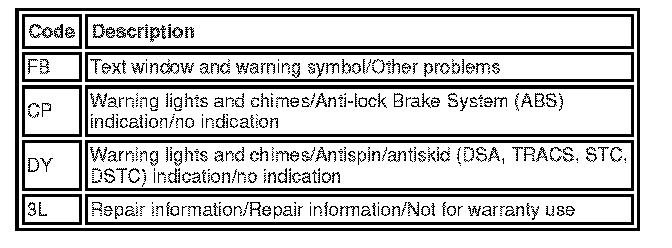

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL 22178 DATED 02-05-2010. The VIDA procedure will be updated in version 2010C. CSC FB has been added to this TJ header. PLEASE UPDATE YOUR FILES.
DESCRIPTION:

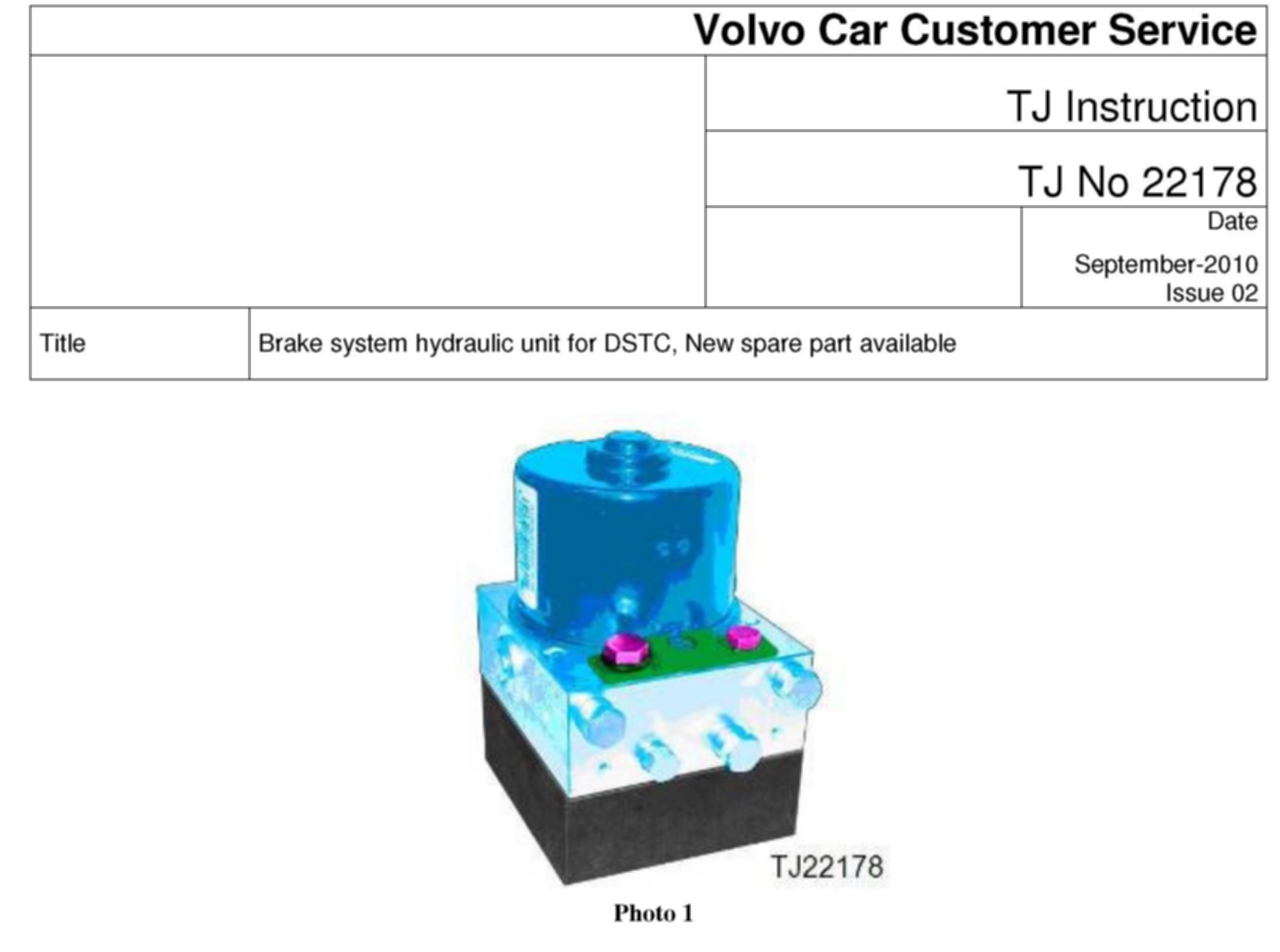

A new spare part has been introduced regarding the hydraulic unit for vehicles with Dynamic Stability Traction Control (DSTC). The new hydraulic unit (see Photo 1 in the attachment) does not include the Brake Control Module (BCM). As shown in the attachment the new unit includes only a pump motor and valve housing fitted together.
The updated service procedure will be included in VIDA 2010C.
SERVICE:
To remove and re-install the hydraulic unit PN 36001319 follow the procedure for replacement of Anti-lock Brake System Module (ABS) in VIDA:
INFORMATION
REPAIR
Removal replacement and installation
Brakes
Brake control system
Anti-lock brake (anti-skid)
When replacing the hydraulic unit on vehicle with DSTC (using the new PN 36001319) no software download is needed.

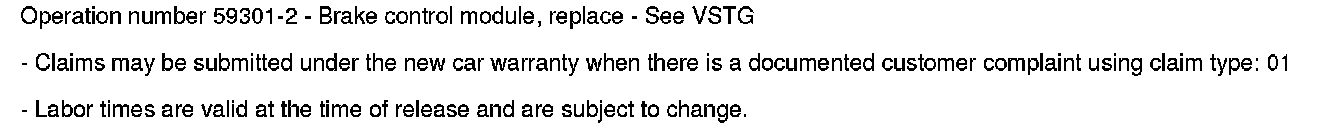

The labor operation code for replacing the BCM is used since the procedure and labor time for replacing the new hydraulic unit (PN 36001319) is the same as for replacing the BCM.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO
VOLVO CAR CUSTOMER SERVICE
