Steering - Revised Power Steering Pump Installation Procedure
Technical JournalTITLE:
P1 PS Pump New Style reservoir and harness,
installation method
CAR MARKET:
United States and Canada
ISSUING DEPARTMENT:
Technical Service
REF NO:
TJ 12828
ISSUE DATE:
YEAR
2013
MONTH
01
DAY
30
PARTNER:
3 US 7510 Volvo Cars North America
FUNC DESC:
6454
FUNC GROUP:
Power steering pump, parts;
mounting parts
"Fixed Right - First Time"
Attachment
Vehicle Type

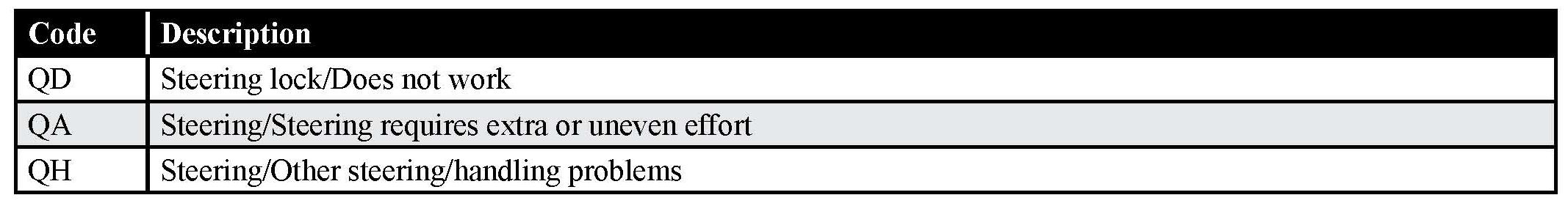

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
For all P1 cars, there is a new version of the power steering pump. With the introduction of this new pump, the separate fluid reservoir with delivery hose is discontinued. The fluid reservoir is now integrated in the power steering pump. The cable harness is also replaced with a new version.
We do not have a chassis break for production introduction of the new style pump.

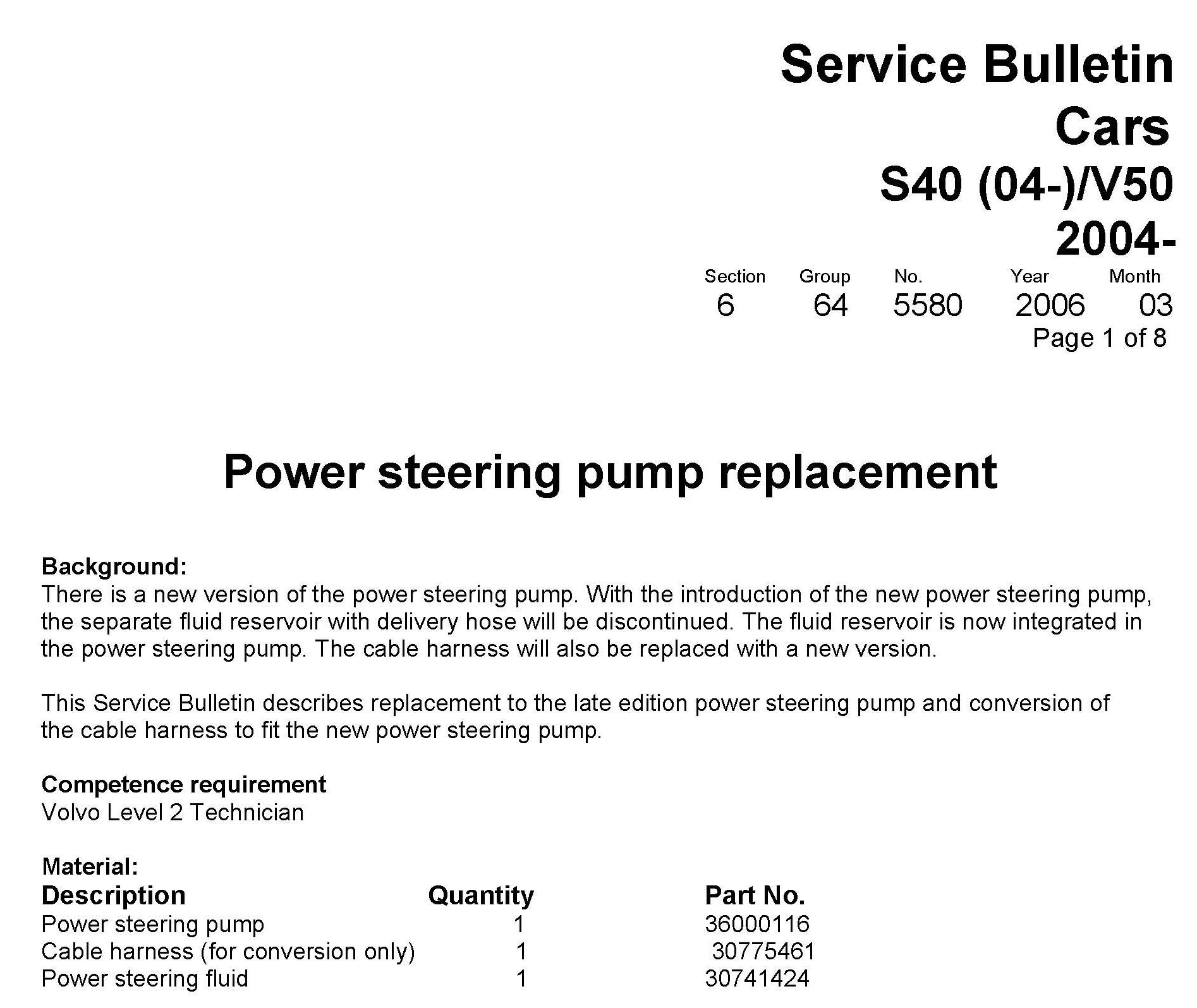

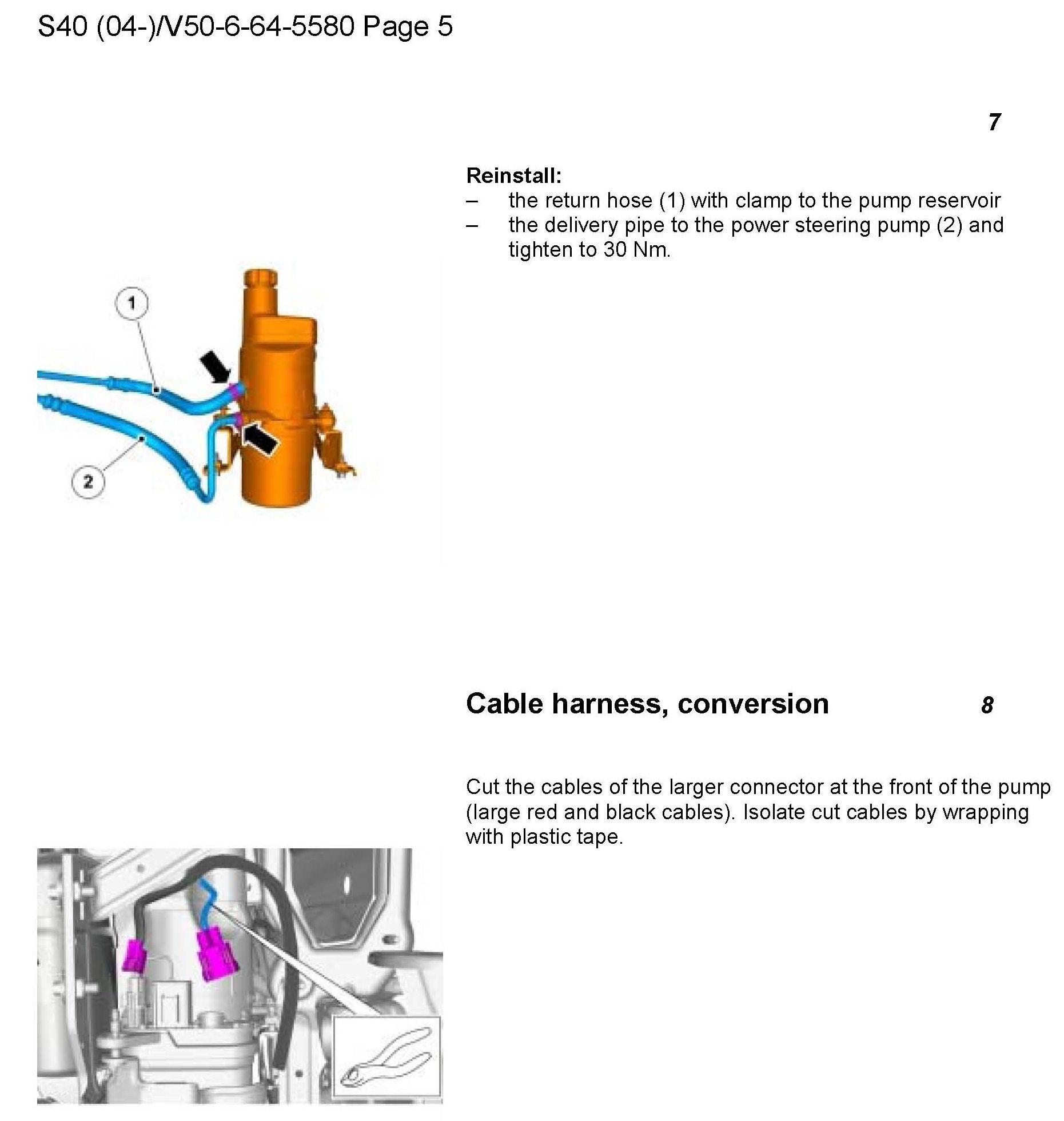

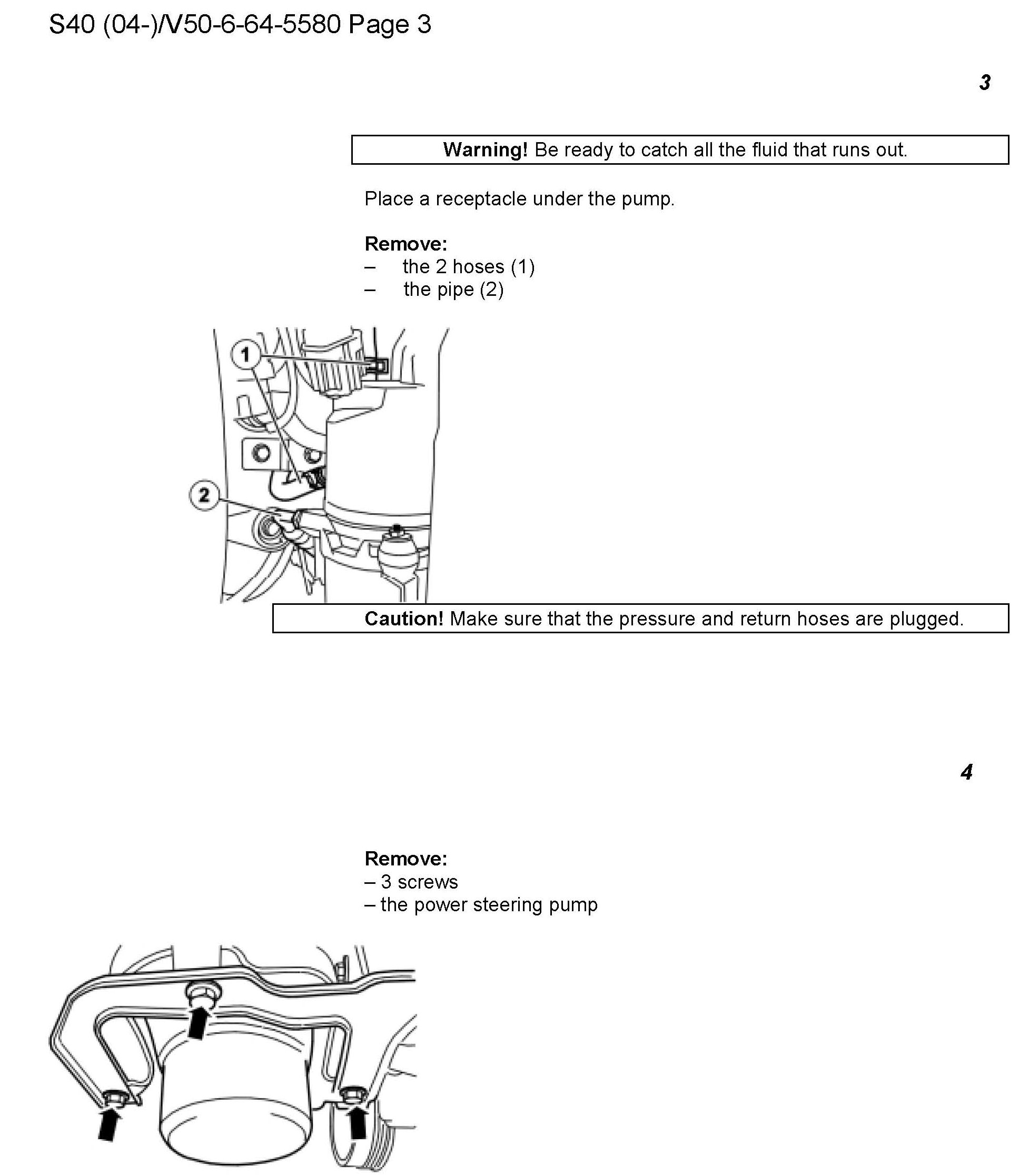

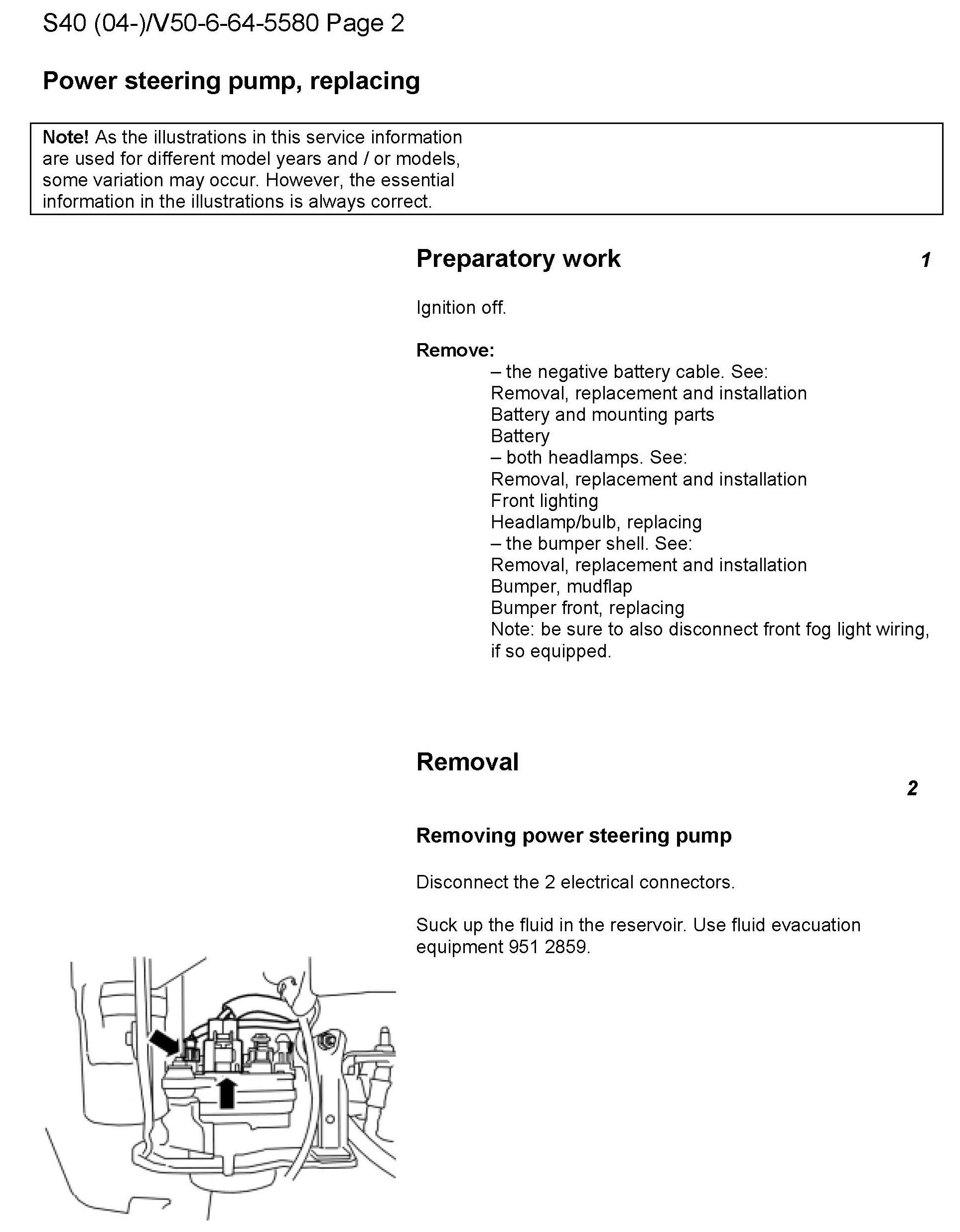

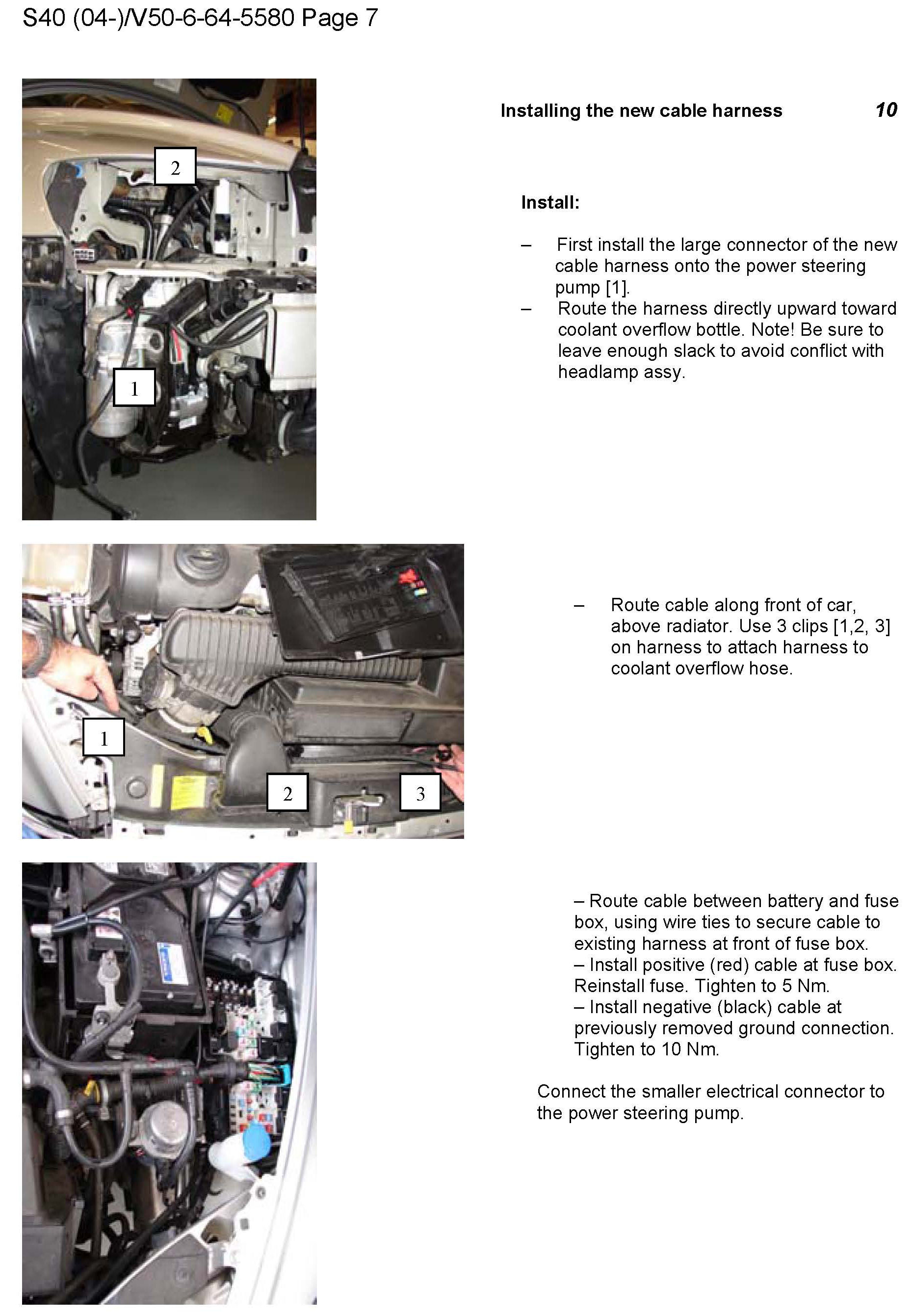

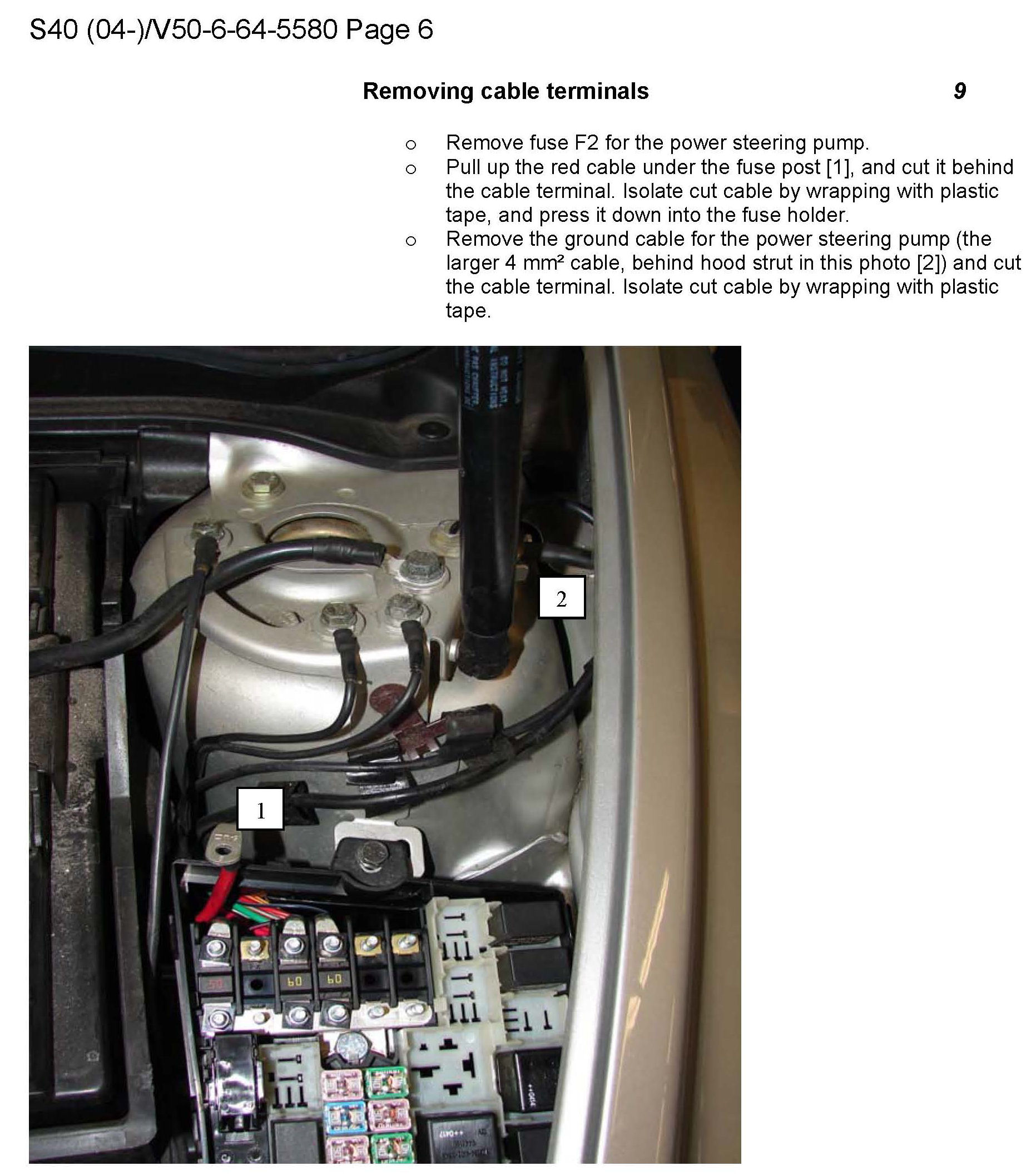

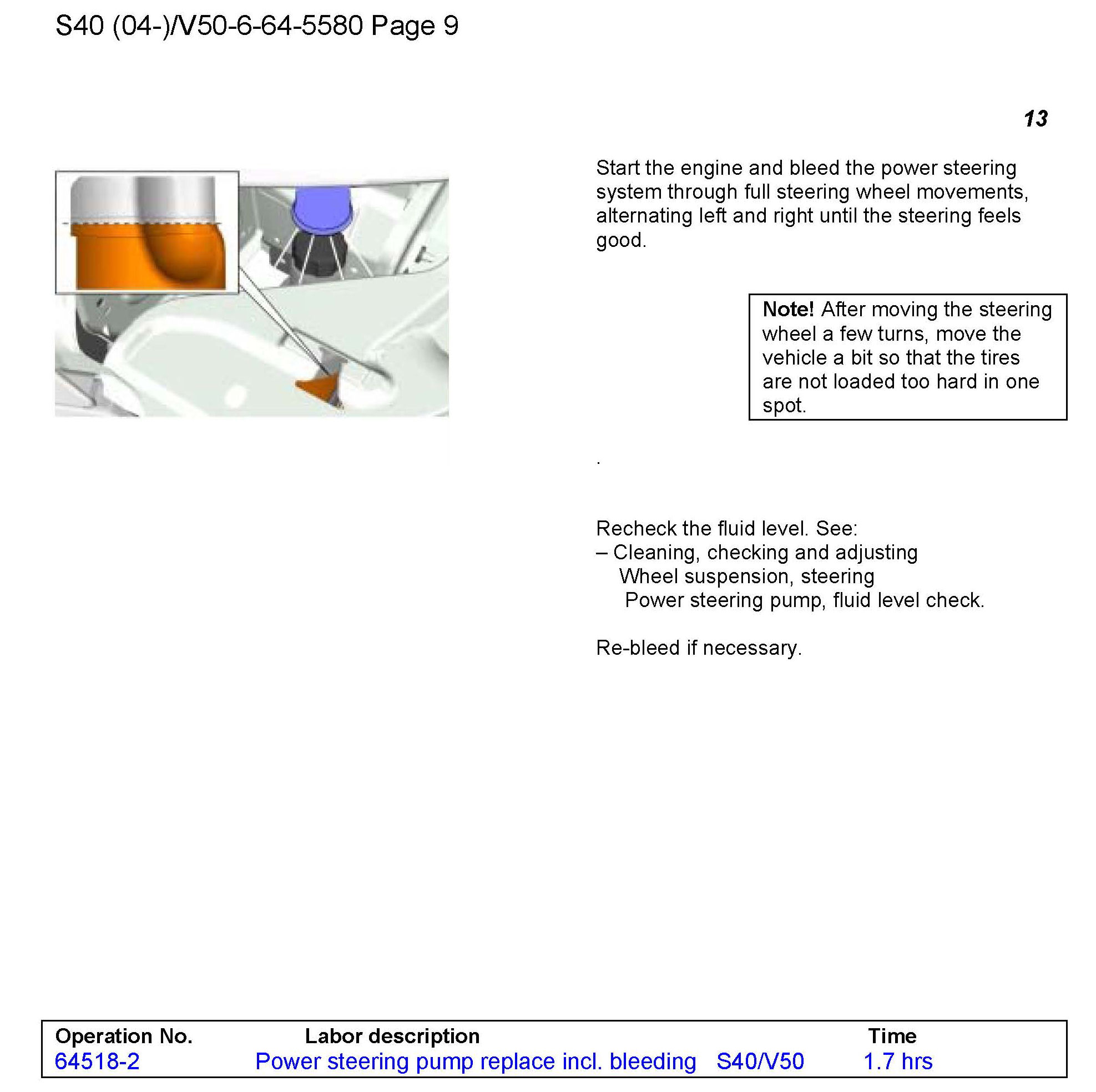

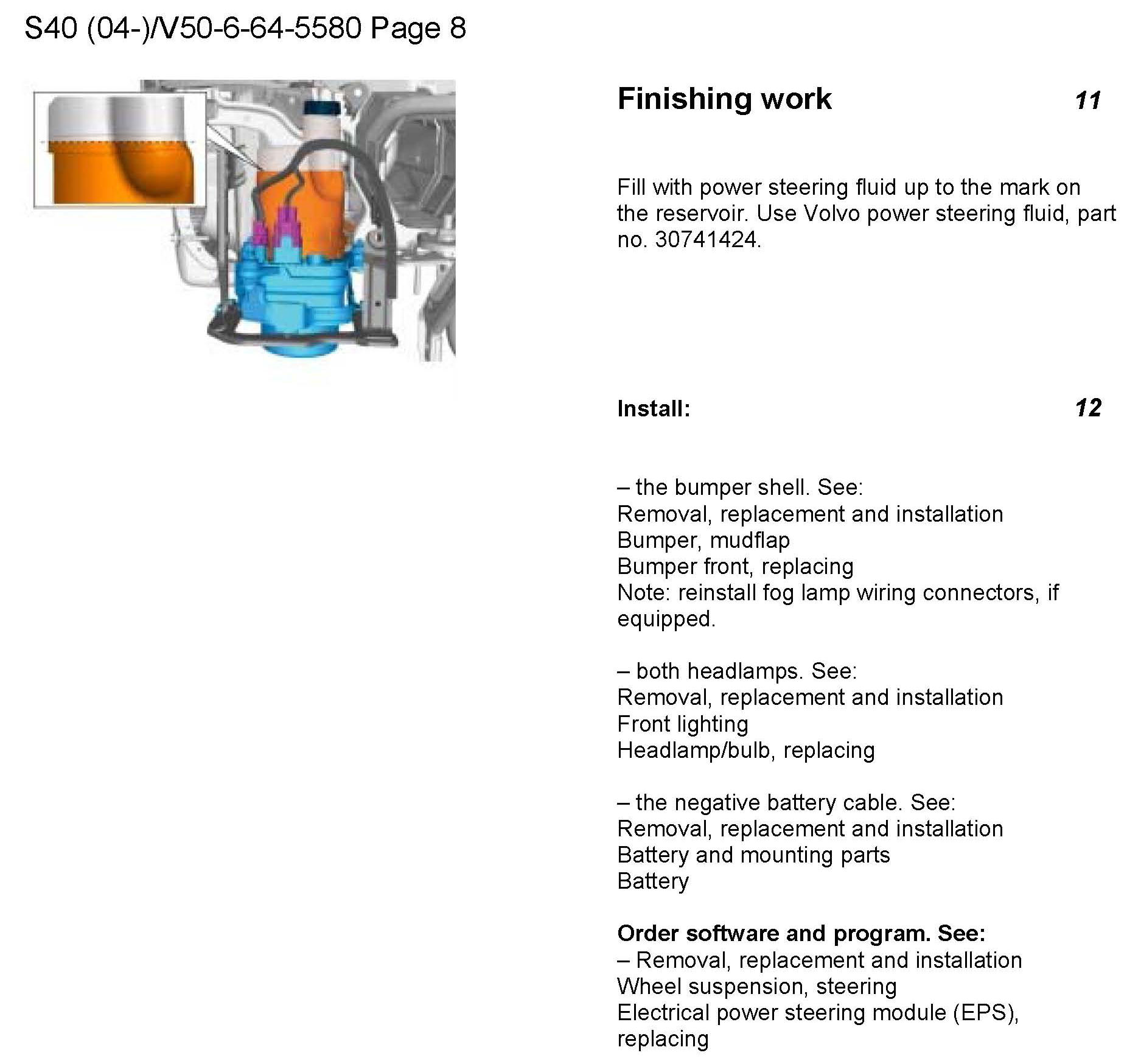

The attached Word document describes the method to replace the PS pump with the new style pump, and also describes the conversion of the cable harness. We have planned to release this as a Service Bulletin 64-5580 in the future. Until such time, share this document with retailers as necessary. Also, as we have done the method verification here in Rockleigh, feel free to contact us with any questions or comments.

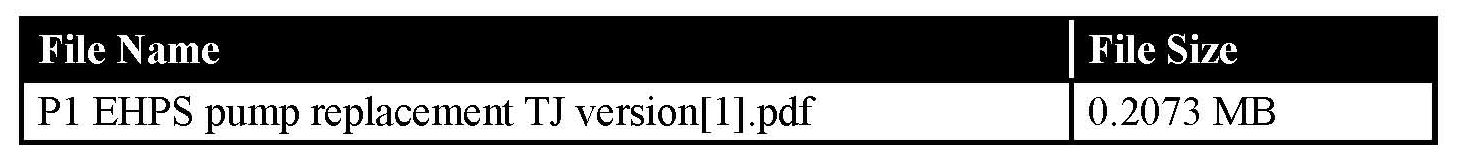

To view TJ attachment
