Component Resistance Values

Component resistance values

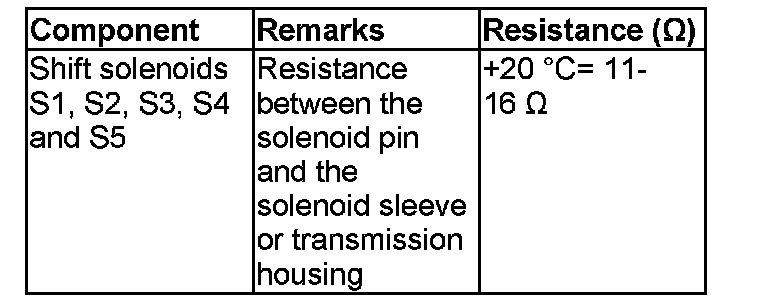

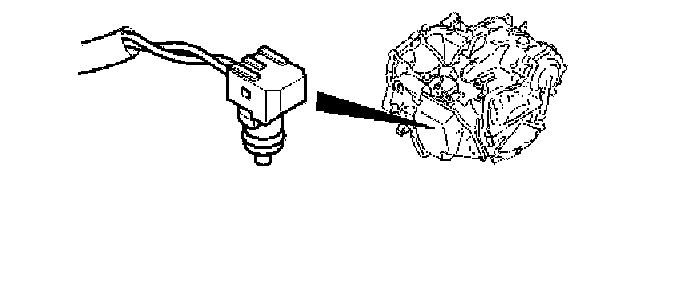

Gear shift solenoids








For other values, see diagram. When taking readings at temperatures other than +20 �C, a control reading must be taken at +20 �C. This is done to check whether the resistance is correct or not.

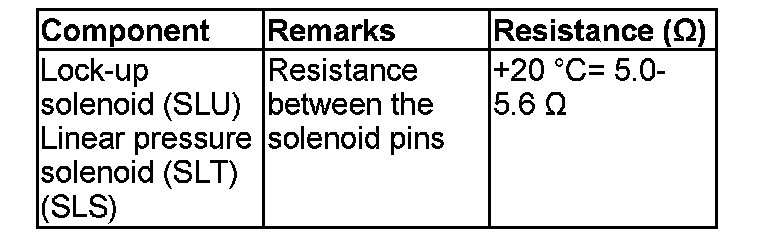

Linear pressure solenoid SLT, SLS/Lock-up solenoid SLU








For other values, see diagram. When taking readings at temperatures other than +20 �C, a control reading must be taken at +20 �C. This is done to check whether the resistance is correct or not.

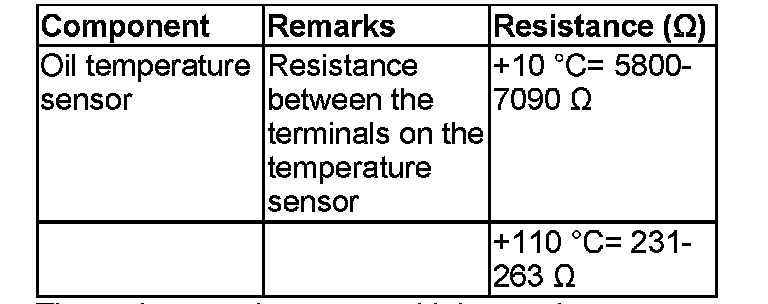

Oil temperature sensor







The resistance decreases with increasing temperature. The control reading should be taken at both temperatures to check whether the resistance is correct or not.

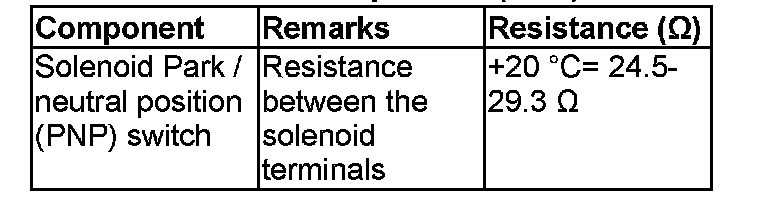

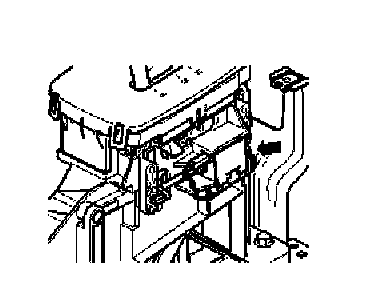

Solenoid Park / neutral position (PNP) switch
