Signal Description, Integrated Audio Module (IAM)

Signal Description, Integrated Audio Module (IAM)

Signal description, Integrated Audio

General

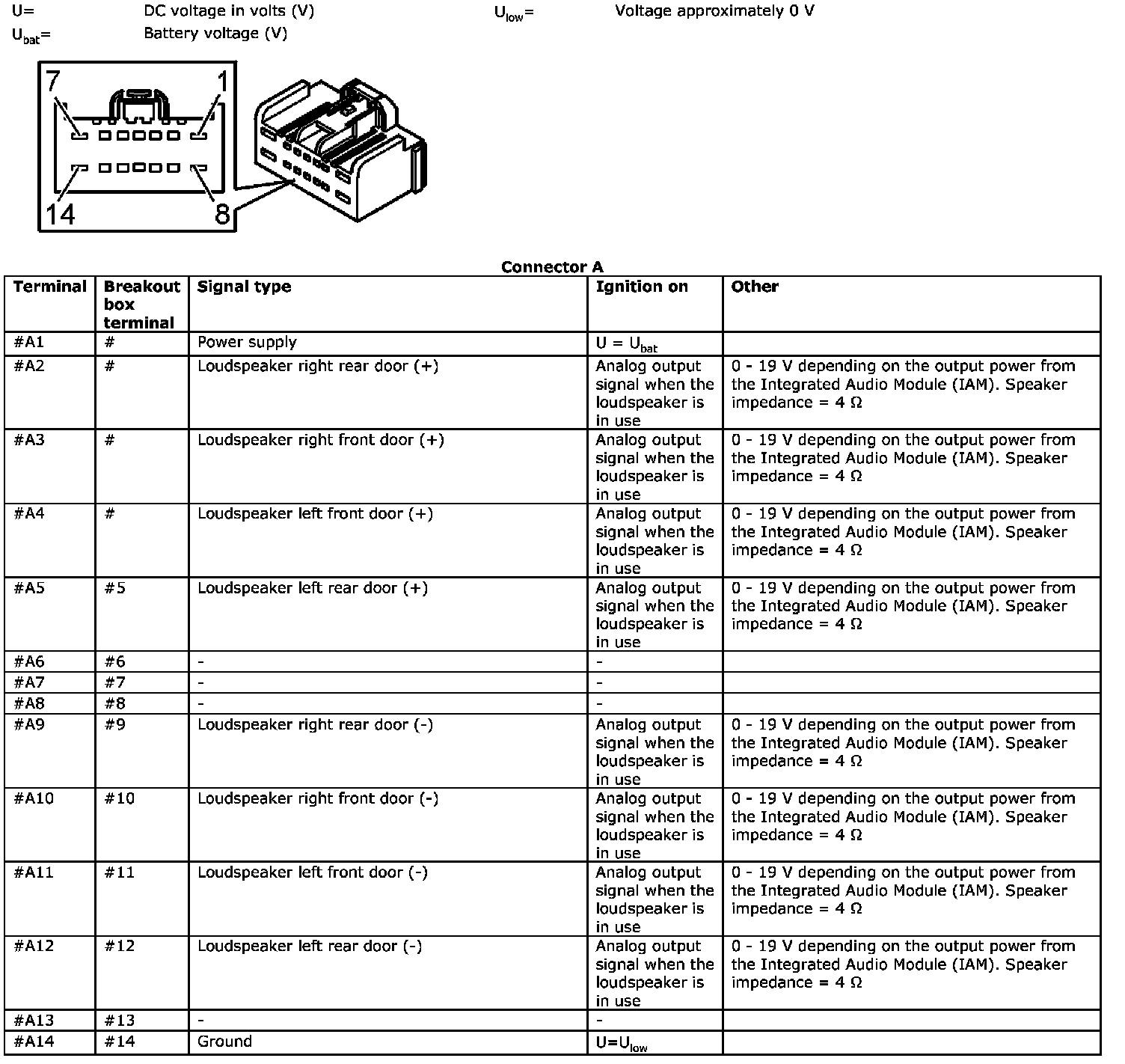

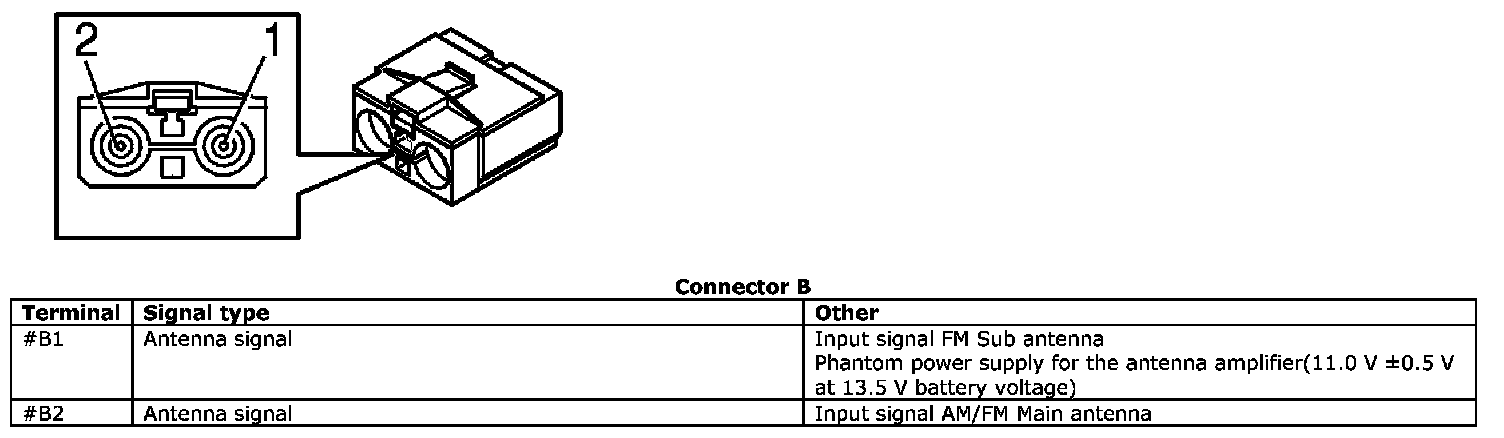

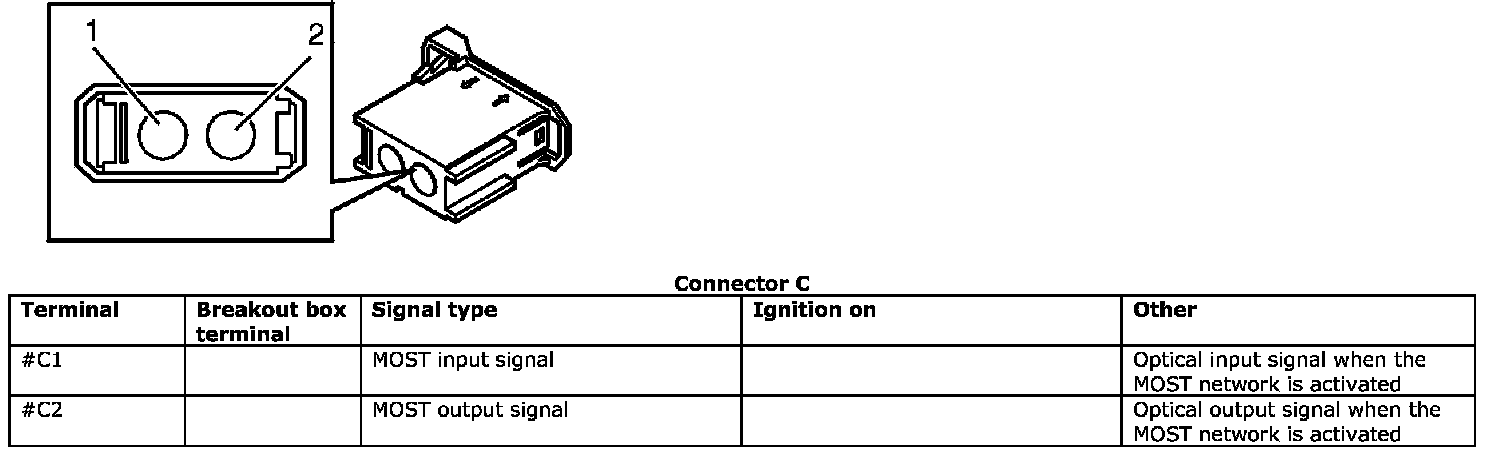

All the values given below are between the respective terminal in column 1 and terminal #A14 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.
