Position Sensor Rear, Headlamp

Position sensor rear, headlamp

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.
Raise the vehicle. Locations

Removal

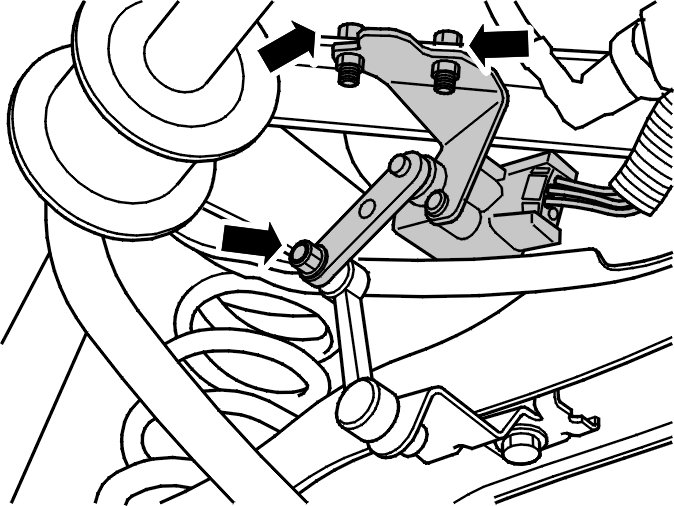

Removing position sensor





Remove:
- 1 M6 nut
- the position sensor
- screws bracket, 2 pcs.
- the connector

Installation

Note! For tightening torques, see Specifications. [1][2]Specifications

Installing position sensor

Install:
- the connector
- screws bracket, 2 pcs.
- the position sensor
- the nut, M6 x1.

Finishing

Calibration of position sensor
Lower the vehicle.
When replacing the position sensor the new position sensor must be calibrated. Carry out calibration using appropriate procedure.
