Evaporator Temperature Sensor / Switch: Service and Repair

Temperature Sensor Evaporator

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

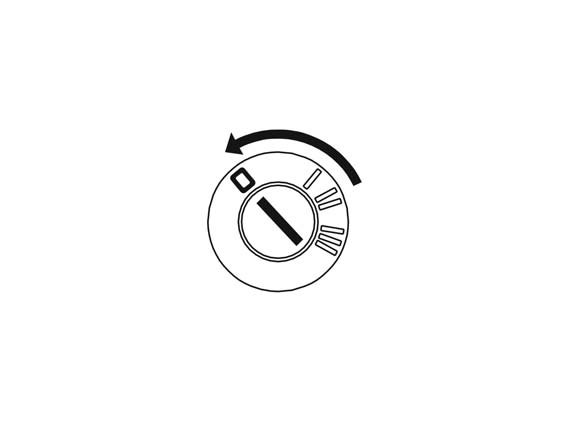

Ignition off





Ignition off.

Removal

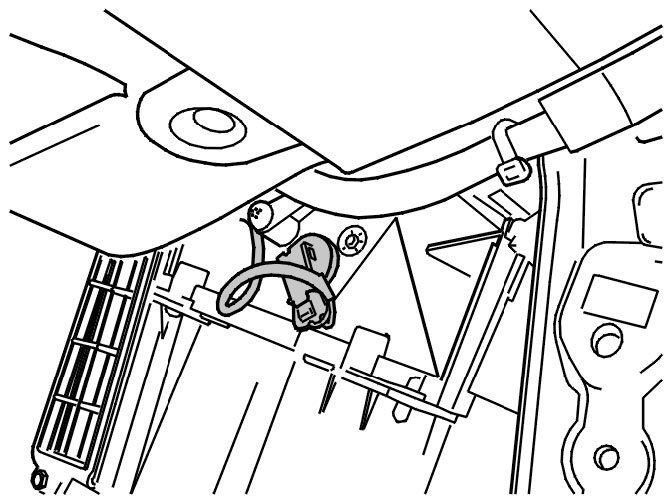

Removing the temperature sensor for the evaporator





Fold down the carpet in the driver's side footwell towards the heater unit.

Turn the temperature sensor together with the cable harness a 1/4 turn clockwise.
Pull the temperature sensor straight out. Remove the temperature sensor.

Remove the connector.

Installation

Installing the temperature sensor for the evaporator

Connect the connector.

Align the hooks for the temperature sensor in the opening so that the connector is turned down.
Place the temperature sensor down against the surface of the heater unit. Turn the temperature sensor a 1/4 turn counter-clockwise.

Finishing

Testing the climate control system

Carry out a performance test on the climate control unit. See: Climate control system, check.
