Power Door Lock Switch: Service and Repair

Switch, central locking system

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

Removing door panels
Remove door panel. See: Panel front door Panel Front Door.

Removing the central locking switch





Remove:

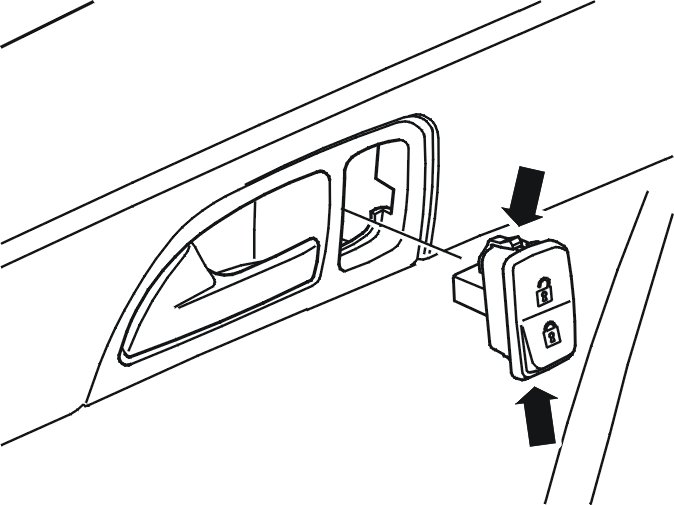

- the switch. Press in the catches and press out the switch
- the connector.

Installation

Installing the central locking switch

Install:
- the connector
- the switch.

Installing the door panel
Install the door panel. See: Panel front door Panel Front Door

Finishing

Function test
Check the function
