Covertible Top Position Switch

Covertible Top Position Switch

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Positioning the hall sensor

Location Of Components, Sensors (Part 1):

There are 14 hall sensors at the locations illustrated.
Number 2 and 17 in the illustration are position sensors for the rear and front roof sections respectively.

Preparatory work

Applies to all hall sensors.









Removal

Applies to all hall sensors.

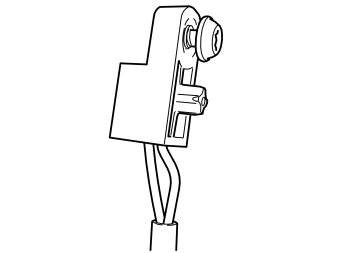

Removing the hall sensor




Remove 1 screw.

Splicing the cables
Splice the cable harness for the Hall sensors. See: Joining cables Joining Cables.

Removing/installing

Removing hall sensor no. 1
Remove the panel as described in Headerrail Trim Panel Header Rail Trim Panel.
Remove the screw, 1 x M4 (0.5 Nm).

Removing hall sensor no. 3
Remove the side panel as described in Side panel rear seat Side Panel Rear Seat.
Remove the screw, 1 x M4 (1.5 Nm).

Removing hall sensor no. 5
Remove the panel as described in Headerrail Trim Panel Header Rail Trim Panel.
Remove the screw, 1 x M4 (0.5 Nm).

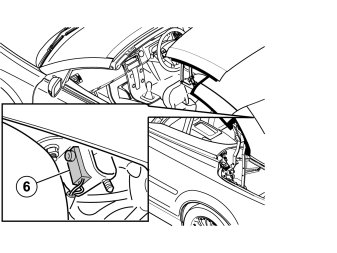

Removing hall sensor no. 6




Remove the screw, 1 x M4 (0.5 Nm).

Removing hall sensor no. 7




Remove the screw, 1 x M4 (2.2 Nm).

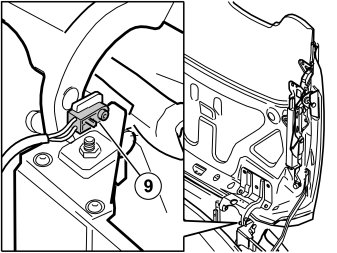

Removing hall sensor no. 9




Remove the screw, 1 x M4 (2.2 Nm).

Removing hall sensor no. 10
Remove the lock according to: Load limiter rear locking Load Limiter Rear Locking.

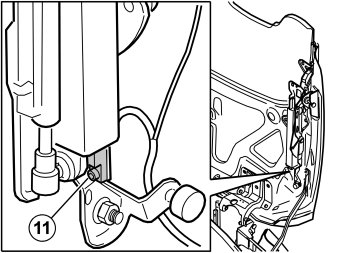

Removing hall sensor no. 11




Remove the screw, 1 x M4 (2.2 Nm).

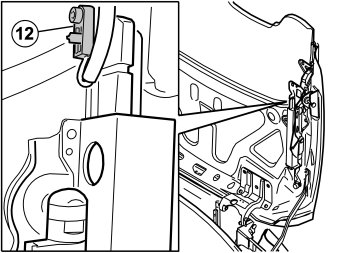

Removing hall sensor no. 12




Remove the screw, 1 x M4 (2.2 Nm).

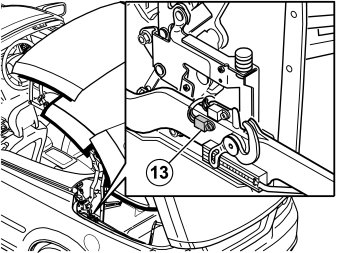

Removing hall sensor no. 13




Remove the screw, 1 x M4 (2.2 Nm).

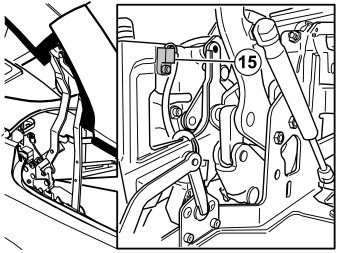

Removing hall sensor no. 15




Remove the screw, 1 x M4 (1.8 Nm).

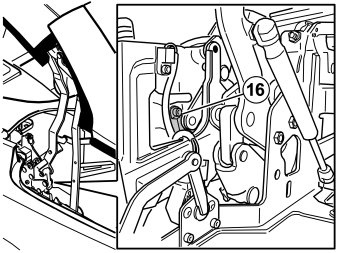

Removing hall sensor no. 16




Remove the screw, 1 x M4 (1.8 Nm).

Removing hall sensor no. 18
Remove the headlining as described in Front headliner Front Headliner.
Remove the screw, 1 x M4 (1.8 Nm).

Removing hall sensor no. 19
Remove the headlining as described in Front headliner Front Headliner.
Remove the screw, 1 x M4 (1.8 Nm).

Install in the reverse order.

Finishing





Caution! Check the function of the roof by closing the roof, opening it and then closing it again.
