Convertible Top Position Sensor

Convertible Top Position Sensor

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Method contents:

This method consists of:
- front, replacing
- rear, replacing.

Position sensor, front, replacing

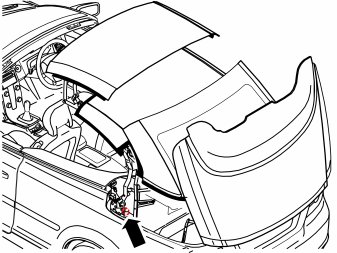

Removing the front position sensor, convertible roof




Switch off the ignition.
Detach the negative battery cable.




Detach the front headlining on the left side as described in Front headliner Front Headliner
Remove the 2 screws.

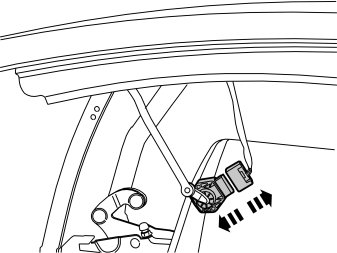

Remove the connector.




Remove the locking washer.

Installation

Installing the front position sensor, convertible roof
Install in the reverse order.

Finishing

Initiate the position sensor. See VIDA Vehicle communication, Position sensor calibration.

Position sensor, rear, replacing

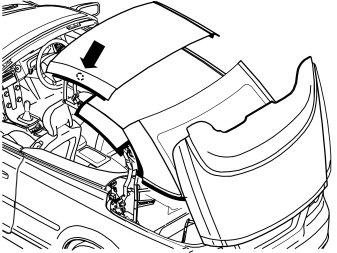

Removing the rear position sensor, convertible roof




Switch off the ignition.
Detach the negative battery cable.





Remove:

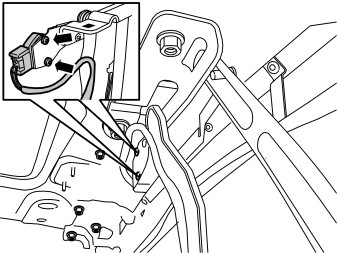

- the 2 screws
- the connector

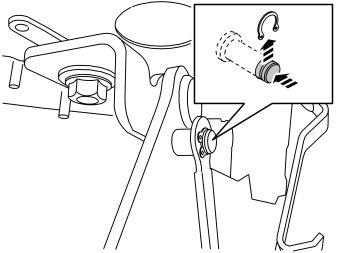

- the locking washer.

Installation

Installing the rear position sensor, convertible roof
Install in the reverse order.

Finishing

Initiate the position sensor. See VIDA Vehicle communication, Position sensor calibration.
