Collision Sensor, Side

Collision sensor, side

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the side door pressure sensor
Make sure that the window is completely closed.





Remove:
- The panel in the side door as described in Panel front door Panel Front Door

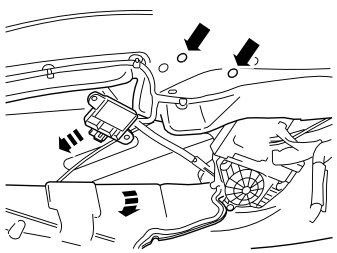

- the 2 x M5 screws.
Fold the anti-drip protection to one side.
Angle out the pressure sensor through the opening in the door.

Remove:
- connector.

Installation

Installing the side door pressure sensor

Note! For tightening torques, see Tightening torque [1][2]Body and Frame

Install in the reverse order.
