ISOFIX Guide, Child Seat

Isofix guide, child seat

MY 2004-











INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Isofix guide, child seat

Installing/removing the Isofix guide

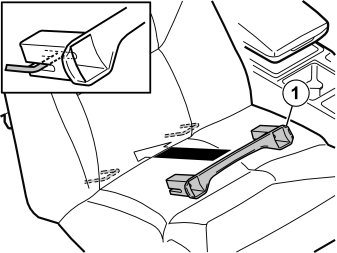

Illustration A applies to the passenger seat and car models




S40 (-04)/V50/S60 (04-)/C70 (06-)/V70 (04-)/XC70 (04-)/S80 (04-)/XC90 (04-)

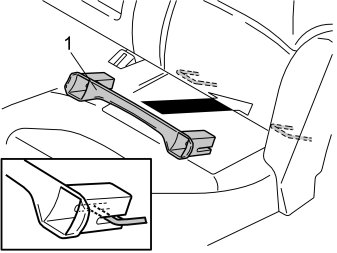

Illustration B applies to the rear seat and car models




S40 (-04)/V40/S40 (04-)/V50

Installing the Isofix guide:
- Press the Isofix guide (1) into place between the backrest and seat cushion. Press it down to the Isofix mountings.
- The Isofix mountings must be visible in the guide's (1) openings. Check that the guide is correctly installed.

Removing the Isofix guide:
- Grip the outer edges. Carefully pull the guide outwards.
