Fuel Pump Control Unit: Service and Repair

Fuel pump driver module

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Ignition off.

Removal of the control module, option 1 (by the fuel tank)





Note! When replacing the control module, the new control module must always be placed under the seat cushion, see option 2.

Raise the car.

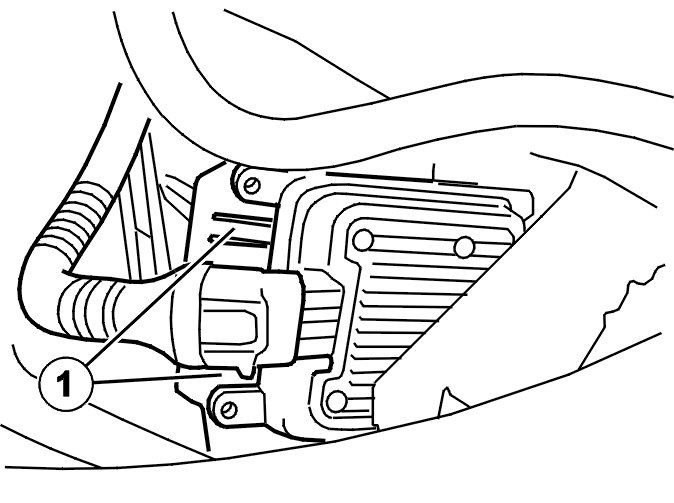

Fold in the two metal tabs (1).

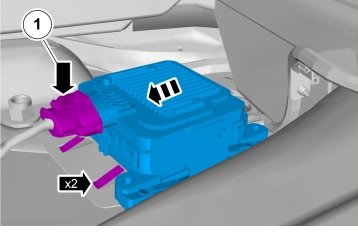

Remove:
- the connector
- the control module.

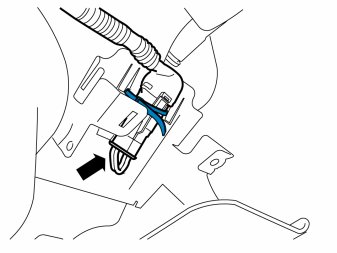

Insert the plug into the connector from the kit.
Secure the cable to the bracket using a cable tie.

Removal of the control module, option 2 (under the seat cushion, backseat)

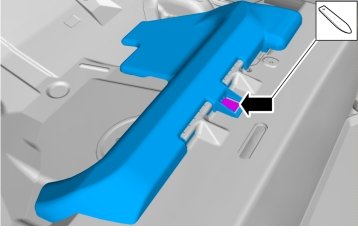

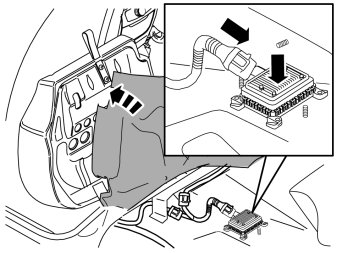

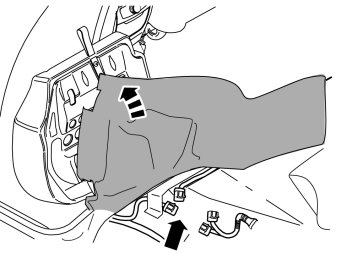

Remove the left-hand seat cushion, backseat. Refer to: Seat cushion, rear seat Seat Cushion, Rear Seat
Remove the sill molding. (Only applies to S40/V50)

Only applies to C70






Applies to all variants





Installation

Installing the control module










To install, reverse the removal procedure
