Fog/Driving Lamp: Service and Repair

Front fog lights

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

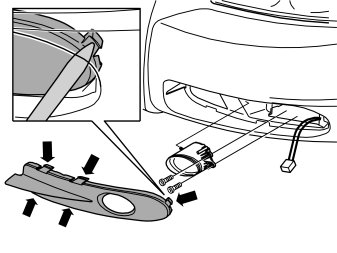

Replacing front fog lights





Remove:
- the cover panel. Start at the outer edge with a pry tool.
- the 2 screws
- the fog light
- the connector.

Installation

Installing components

Install:
- the connector
- the fog light
- the 2 screws
- the cover panel.

Finishing

Function test
Check the fog light's function and setting.
