Remote start, electric engine block heater
INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
Cars equipped with SRS/SIPS (Airbag)
Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:
- Personal injury
- Damage to or malfunction of the SRS/SIPS system.
Work on the SRS/SIPS systems or related components must always be carried out by an authorized Volvo workshop.
Is the car equipped with SRS (supplemental restraint system)?

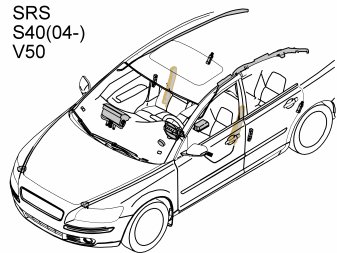

Cars equipped with a driver's airbag have the letters "SRS" imprinted on the center panel of the steering wheel. Cars equipped with driver's and passenger airbags are marked with "SRS" on both the steering wheel center panel and also on the dashboard close to the airbag.
If the car is equipped with SIPS (side impact protection system ) a "SIPS" decal is marked on both the front seats.

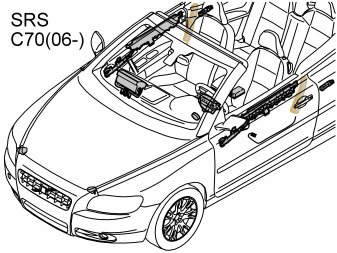

Cars equipped with inflatable curtains have the marking "SRS" on one of the panels along the posts on the inside of the car.
Cars equipped with SRS (supplemental restraint system) also have an "SRS" decal on the front windscreen.
Warning! The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery or accessories, within these areas. The panels must be able to open in the correct manner at the right time, otherwise there is an increased risk of personal injury in the event of a collision.
Do not damage the SRS wiring!
Do not trap, chafe, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.
Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the SRS (supplemental restraint system) or service instructions in VIDA for information on carrying out such work. This is to prevent damage.
SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorized Volvo workshop.
Supplemental restraint system module, SRS
C30/S40(04-)/V50/S60/XC60/C70(06-)/V70/XC70/S80/XC90
The supplemental restraint system module (SRS) is located on the tunnel under the center console, in front of the parking brake.
Warning! The ignition must be in position "0" and the key removed from the ignition switch if any connector in the SRS system is to be unplugged. Then wait at least three minutes and disconnect the battery negative lead before unplugging any of the connectors. When work is completed, the ignition key must be turned to position "II" before reconnecting the battery negative lead.
Remote start, electric engine block heater
- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
Steps 2-25 apply to cars with a 5-cylinder engine
- Turn the seven clips 90°.
- Detach the engine splashguard from the clips and place to one side.

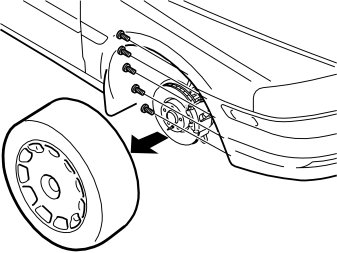

- Remove the right-hand front wheel.
- Remove the five screws holding the bumper cover at the right-hand wing liner.

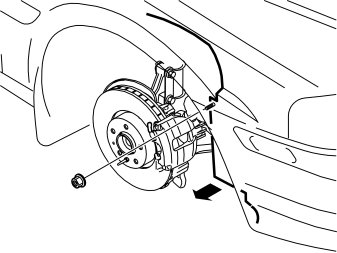

- Remove the nut holding the wing liner at the right-hand front member.
- Bend the front edge of the wing liner up over the brake caliper.
Only applies to cars with an engine block heater
- Cut off the tie strap above the locking sleeve.

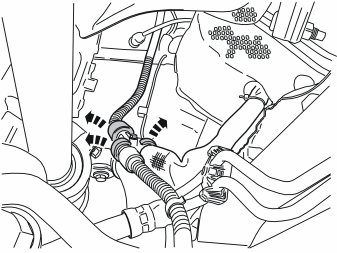

- Detach the wiring from the front intake from its clamps, to facilitate installation of the timer relay. If necessary, also detach the cable from the engine block heater.
- Remove the locking sleeve over the cable splice and separate the cables.
Applies to cars with an engine block heater and passenger compartment connector socket
- Detach the wiring from the front intake from its clamps, to facilitate installation of the timer relay.
- Detach the clamp that holds the junction connector at the stay.
- Remove the junction connector with cables from the clamp and stay.
Applies to cars with an engine block heater and passenger compartment connector socket
- Remove the sleeves from above the splices on the cables for the front intake, engine block heater and passenger compartment connector socket.
- Remove the wiring from the junction connector.
- Place the hose clamp and holder with the junction connector to one side. New components are in the kit.
- Lubricate the O-rings on the cable from the front intake, timer relay and cable for passenger compartment connector socket (if applicable). Use low temperature grease (part no. 1161417-9).
Note! Do not get any grease on the surfaces of the connector.
- Take the bracket and rubber guard from the kit (or use the existing one). Press the rubber guard onto the bracket.
Only applies to cars with an engine block heater
- Take the screw, toothed washer and nut from the kit. Tighten the timer relay at the holder in the position illustrated. The holder must be longitudinally parallel with the timer relay.
- Press the cover (1) (part no. 346509, not included) onto the free socket in the timer relay.

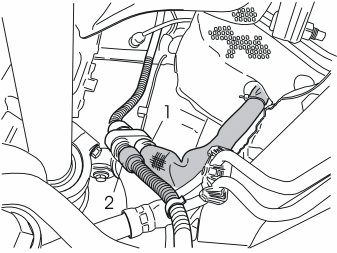

1. Position (2) cable for the engine block heater
2. Position (3) cable from the front engine block heater socket.
Applies to cars with a passenger compartment connector socket
- Take the screw, toothed washer and nut from the kit. Tighten the timer relay at the holder in the position illustrated. The holder must be longitudinally parallel with the timer relay.
1. Position (1) cable for the passenger compartment socket
2. Position (2) cable for the engine block heater
3. Position (3) cable from the front engine block heater socket.
Illustration A

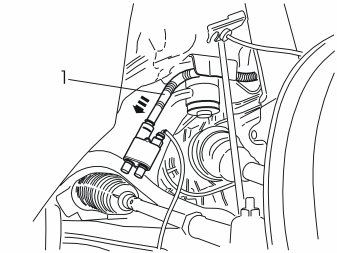

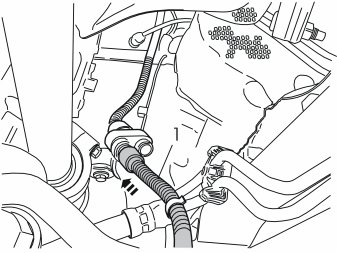

- Connect the front intake cable (1) to the timer relay. Press the cable splice together securely.
Illustration B

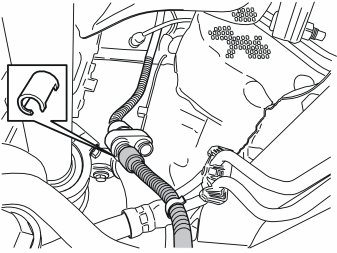

- Press in the existing locking sleeve over the cable splice.
Only applies to cars with an engine block heater
Illustration A
- Connect the cable (1) from the engine block heater to the timer relay. Press the splice together securely.
Illustration B
- Press a locking sleeve (from the kit) over the cable splice.
Applies to cars with an engine block heater and passenger compartment connector socket
Illustration A
- Connect cable (1) from the passenger compartment connector socket and the cable (2) from the engine block heater to the timer relay.
- Firmly press the splices together.
Illustration B
- Press two locking sleeves from the kit and press over the cable splices.
Illustration A
- Install the holder with the connected timer relay with the hose clamp.
Illustration B

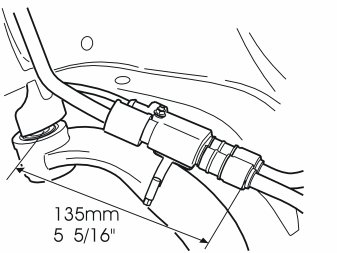

- Check that the same dimensions as in the image are used.
- If the cables for the front intake and engine block heater are disconnected, reinstall them in their clamps.
- Route the ground lead from the timer relay.

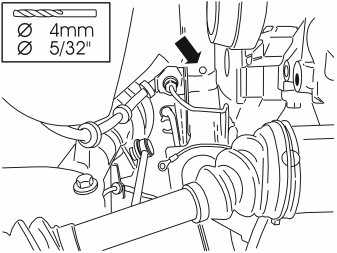

- Drill a - 4 mm (5/32") hole on the underneath of the right-hand front member, for the ground lead to the timer relay. Drill the hole in the middle of the underneath of the member, opposite the brake pipe connection.
- Remove any swarf. Rust-proof the edges of the holes.

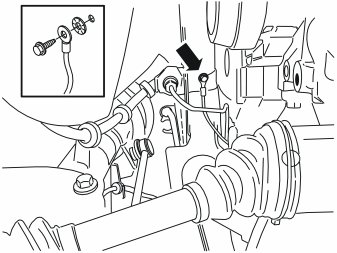

- Take a screw and toothed washer from the kit and tighten the ground cable in the front member.

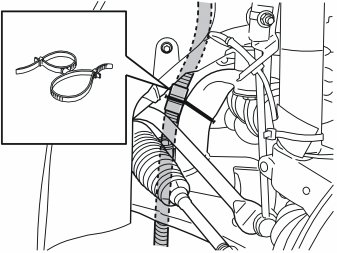

- Take a tie strap from the kit and clamp the cable excess.
- Remove the panel from the right-hand end of the dashboard. Use a weatherstrip tool and carefully pry around the panel, so that the three clips on the inside release.
Note! Do not damage the dashboard.
- Remove the sill trim panel from the right-hand front door. First pull off the front edge of the sill trim panel so that the clip there releases. Then continue backwards until the remaining clips on the underneath have released.
- Unhook the sill trim panel from the B-pillar panel.
Applies to cars without a passenger compartment connector socket
- Push the floor carpet to one side to access the grommet in the cowl panel.
Applies to cars with a passenger compartment connector socket
- Remove the locking sleeve over the cable splice in the passenger compartment connector socket.
- Disconnect the cable from the passenger compartment connector socket.
- Remove the passenger compartment connector socket from its bracket.
- Push the floor carpet to one side to access the grommet in the cowl panel.

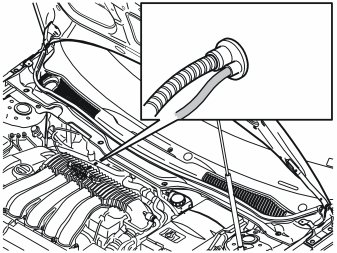

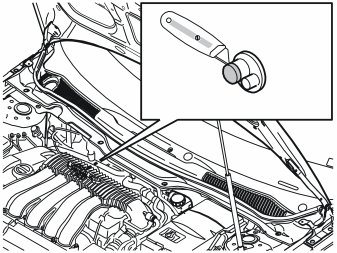

- Cut off the top of the small "rubber nipple" in the cowl panel's rubber grommet, on the right-hand side of the engine compartment. Use a knife.
- Route the cable from the timer relay to the rubber grommet in the cowl panel.
- Insert the cable through the rubber grommet and into the passenger compartment.
- Insert all the cable excess into the passenger compartment.
- If the car is equipped with a passenger compartment connector socket; take a tie strap from the kit and clamp the cable at the cable to the passenger compartment connector socket.
- Pull the cable from the rubber grommet in the cowl panel.
- Reinstall the wing liner for the side member and bumper cover.
- Reinstall the engine splash guard.
- Remount the wheel and tighten the lug bolts to 90 Nm (66 ftlb.).
