Mechanical Cable Parking Brake Right-Hand

Mechanical cable parking brake right-hand

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Release adjustment. Adjustments

Removal

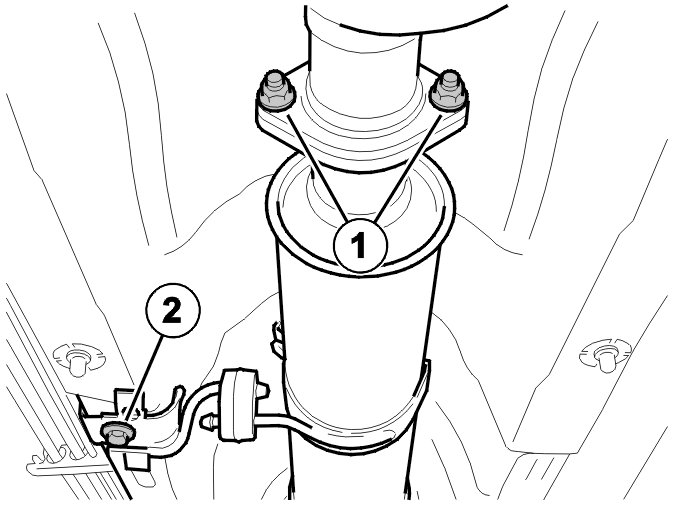

Removing the exhaust system





Remove:
- the 2 x nuts (1)
- the screw (2) for the rubber mounting.

Note! Hang up the catalyst in a suitable position.




Remove the rubber mounting from the exhaust pipe. Hang the exhaust system to one side in a suitable way.

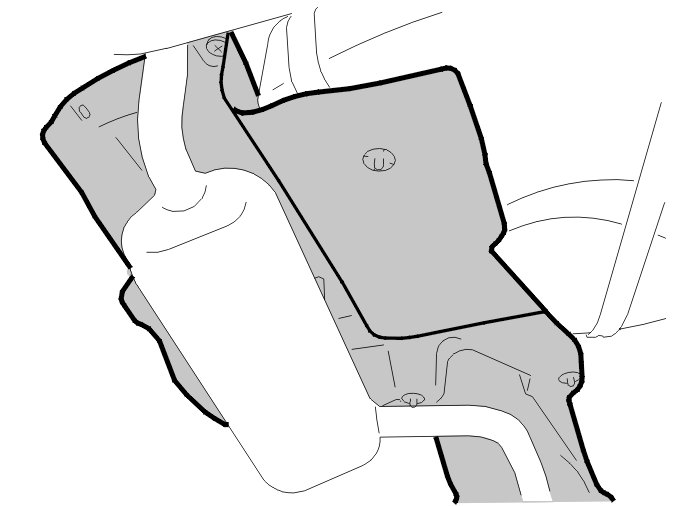

Removing the heat deflector plate





Remove:
- the 4 x plastic nuts
- the heat deflector plate.

Removing the air baffle





Remove:
- the 2 x plastic nuts (1)
- the screw (2)
- the air baffle.

Note! The illustration displays the left-hand side. When replacing the cable on the right-hand side, the same procedure applies with the right-hand air baffle.

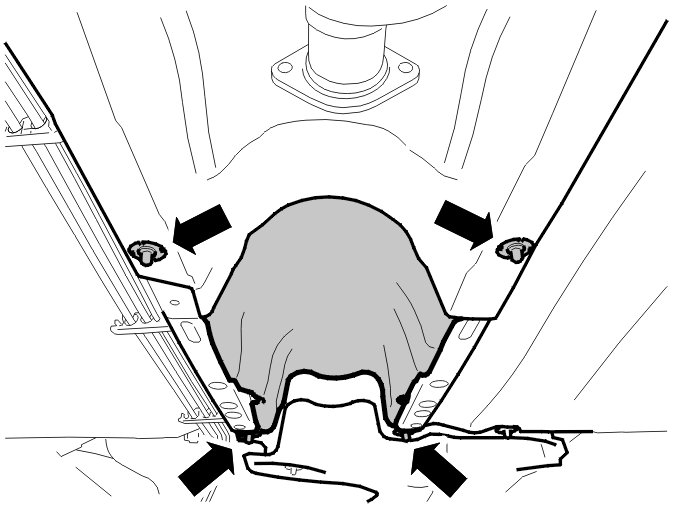

Removing the heat deflector plate





Note! Applies only when replacing the cable on the left-hand side.

Remove:
- the 7 x plastic nuts
- the heat deflector plate.

Removing the brake cable





Remove:

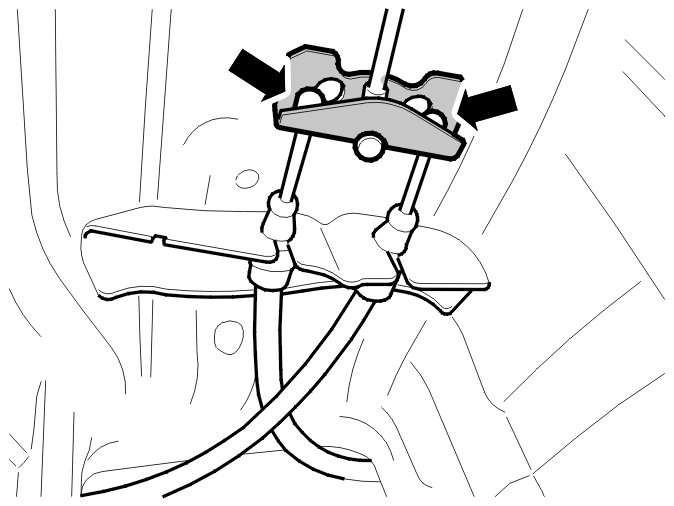

- the cable at the power distributor
- the cable from brake caliper.
Slacken off and remove the cable from the clip.

Installation

Installing the brake cable

Install:
- the cable in the clips
- the cable in the brake caliper
- the cable in the power distributor.

Installing the heat deflector plate

Install:
- the heat deflector plate
- the 4 x plastic nuts.

Installing the heat deflector plate

Note! Applies only when replacing the cable on the left-hand side.

Install:
- the heat deflector plate
- the 7 x plastic nuts.

Installing the air baffle

Install:
- the air baffle
- the 2 x plastic nuts
- the screw.

Installing the exhaust system

Install:
- the 2 x M8 nuts
- the M8 screw for the front rubber mounting
- the rear rubber mounting.

Finishing

Adjust the parking brake. Adjustments
