Bushing Push Rod, Replacing

Bushing push rod, replacing

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work
Remove the soundproofing panel. See: Soundproofing panel driver's side, replacing

Removal
Removing the bushing

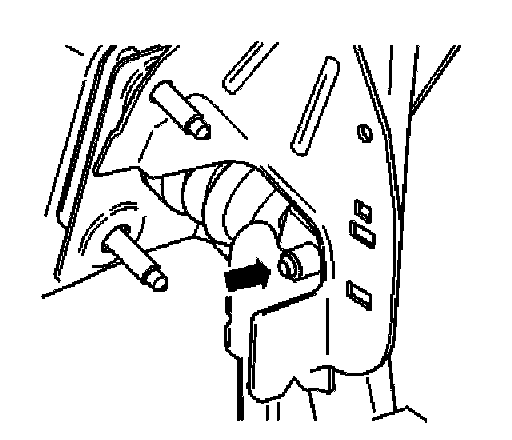

Break off the bushing together with the pin from the push rod.

Note: The pin cannot be separated entirely. It must be replaced with a new pin on installation.

Installation
Installing the bushing
Press in the bushing together with the pin into the push rod.

Note: The pin cannot be separated entirely. It must be replaced with a new pin on installation.
