Tilt Mechanism Front Seat Backrest

Tilt Mechanism Front Seat Backrest

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

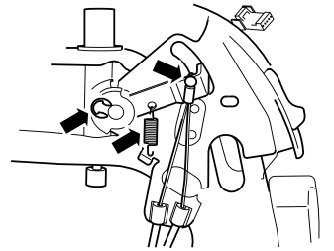

Remove:
- the backrest electric motor as described in Electric motor, backrest rake
- the retaining clip
- the spring

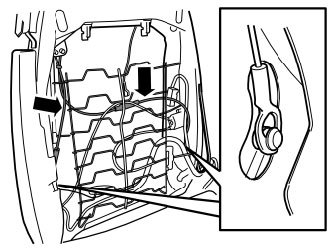

Angle out the handle and unhook the lock cable.





Follow the cables. Detach the clips and cable tie from the seat frame.
Unhook the 2 cables from the folding mechanism.

Installation

Install in the reverse order.

NOTE: Take care when routing the cables. Do not twist them.
