Body - Retractable Hard Top Seal Strip Replacement

TIE - Technical Journal

Title
Rplacing roof sealing strips

Ref. No. US23134.1.1 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 8300

Func Desc doors, lids and convertible top

Status Released

Status Date 2010-08-09

Issue Date 2010-06-02

Reference VIDA





Attachment

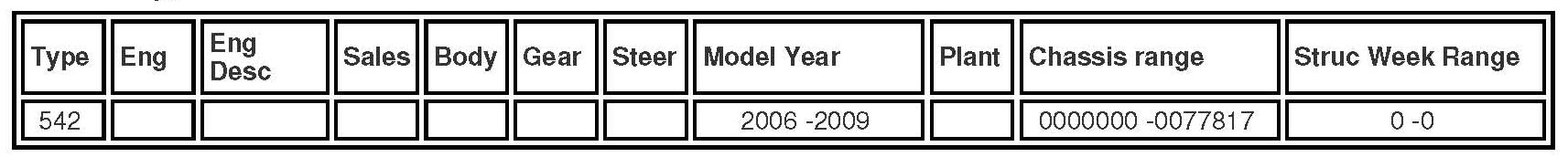

Vehicle Type

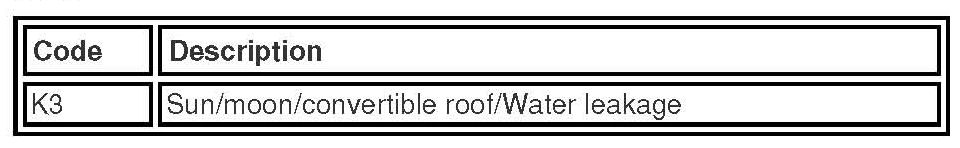

CSC

DTC

Text

CSC= Customer Symptom Code

DTC= Diagnostic trouble code

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

DESCRIPTION:





Due to a change in the material of sealing strips for the roof section all three (seal front roof LH seal front roof RH and seal middle roof) must be replaced at the same time in order to avoid water leakage.

PRODUCT MODIFICATION:

A new material in the roof seal was introduced from chassis number 077817 and up.

SERVICE:

When replacing any one of the 3 roof sealing strips (see picture in attachment) listed below the other 2 must also be replaced with the updated type to avoid any possible future water leaks.

After chassis number 077817 only the faulty seal need be replaced.
Part numbers:

P/n 31256572 Seal front root L.H.

P/n 31256571 Seal front roof R.H.

P/n 31256573 Seal middle roof.

VOLVO SERVICE TIME GUIDE (VSTG) INFO:

Operation number *83844-2* - **Weatherstrip center roof panel replace**(part # 31256573) - "See VSTG for times" Operation number *83843-2 - **Weatherstrip front roof panel replace** (part # 31256571 or 31256572) - "See VSTG for times"

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

- Labor times are valid at the time of release and are subject to change.
