Flow Chart for Roof Operation






Flow chart for roof operation

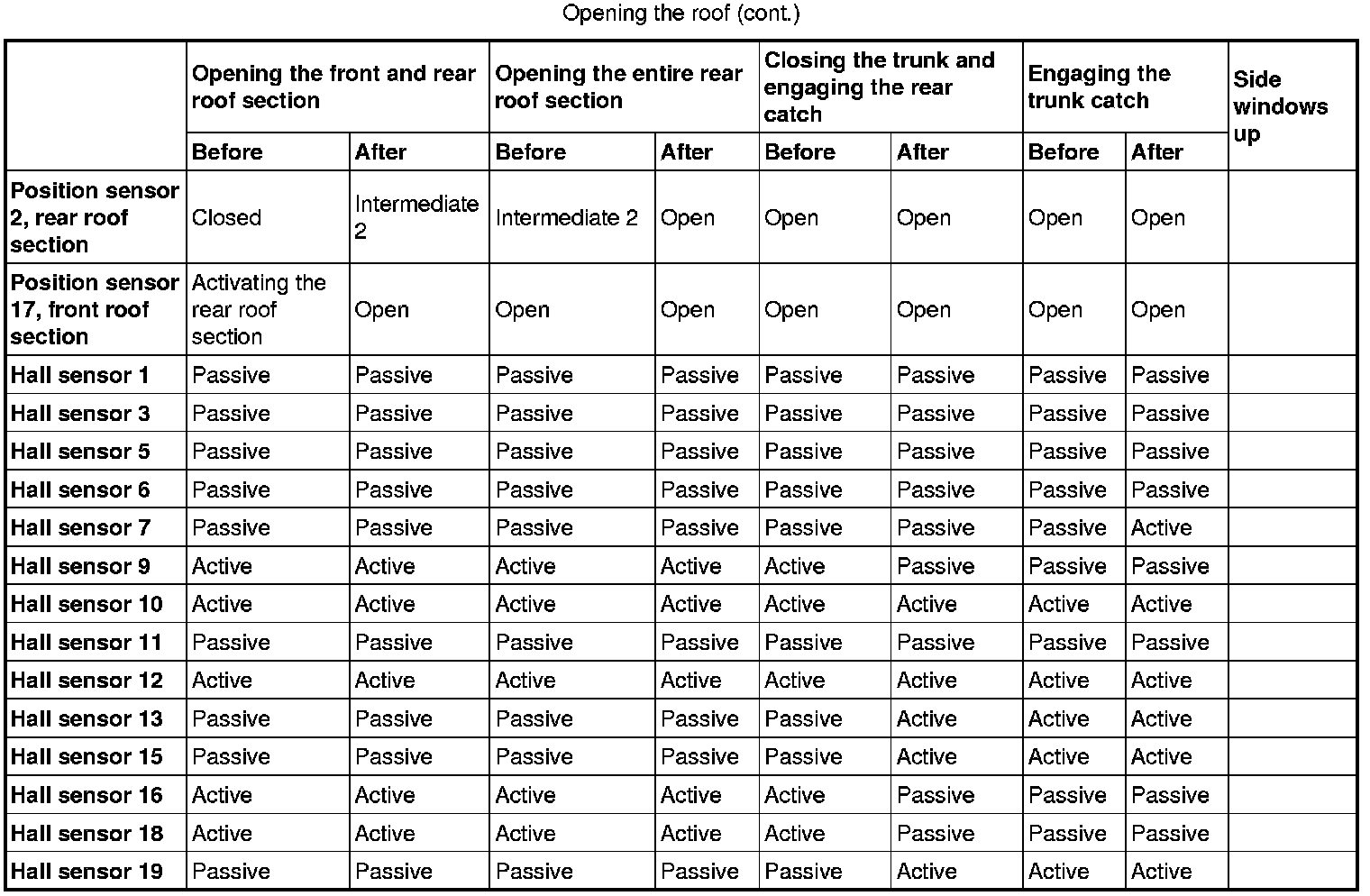

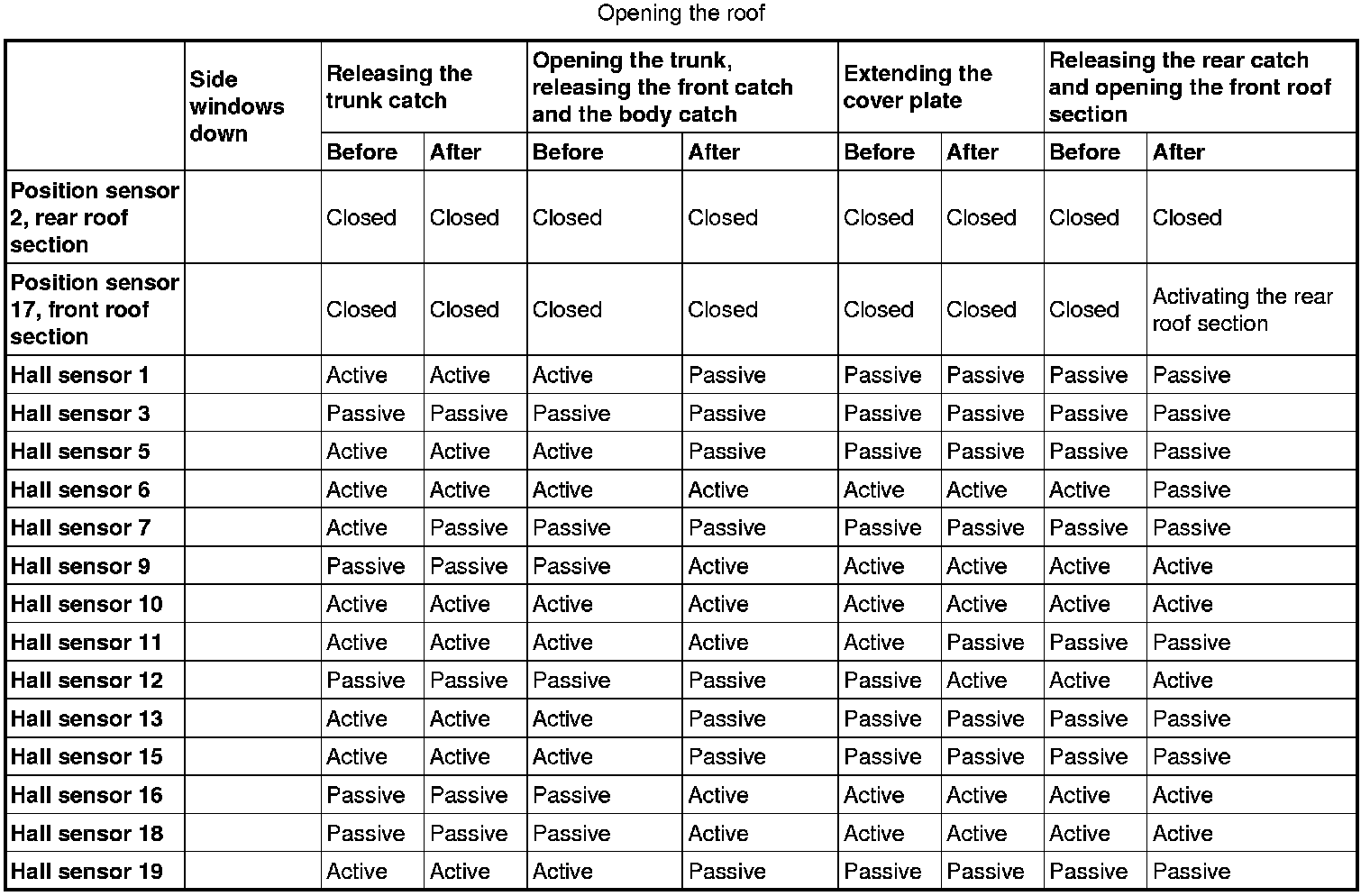

Tables for roof opening

Note! For a more detailed description of Hall sensor locations, see Location of components Locations.





Note! For a more detailed description of Hall sensor locations, see Location of components Locations.

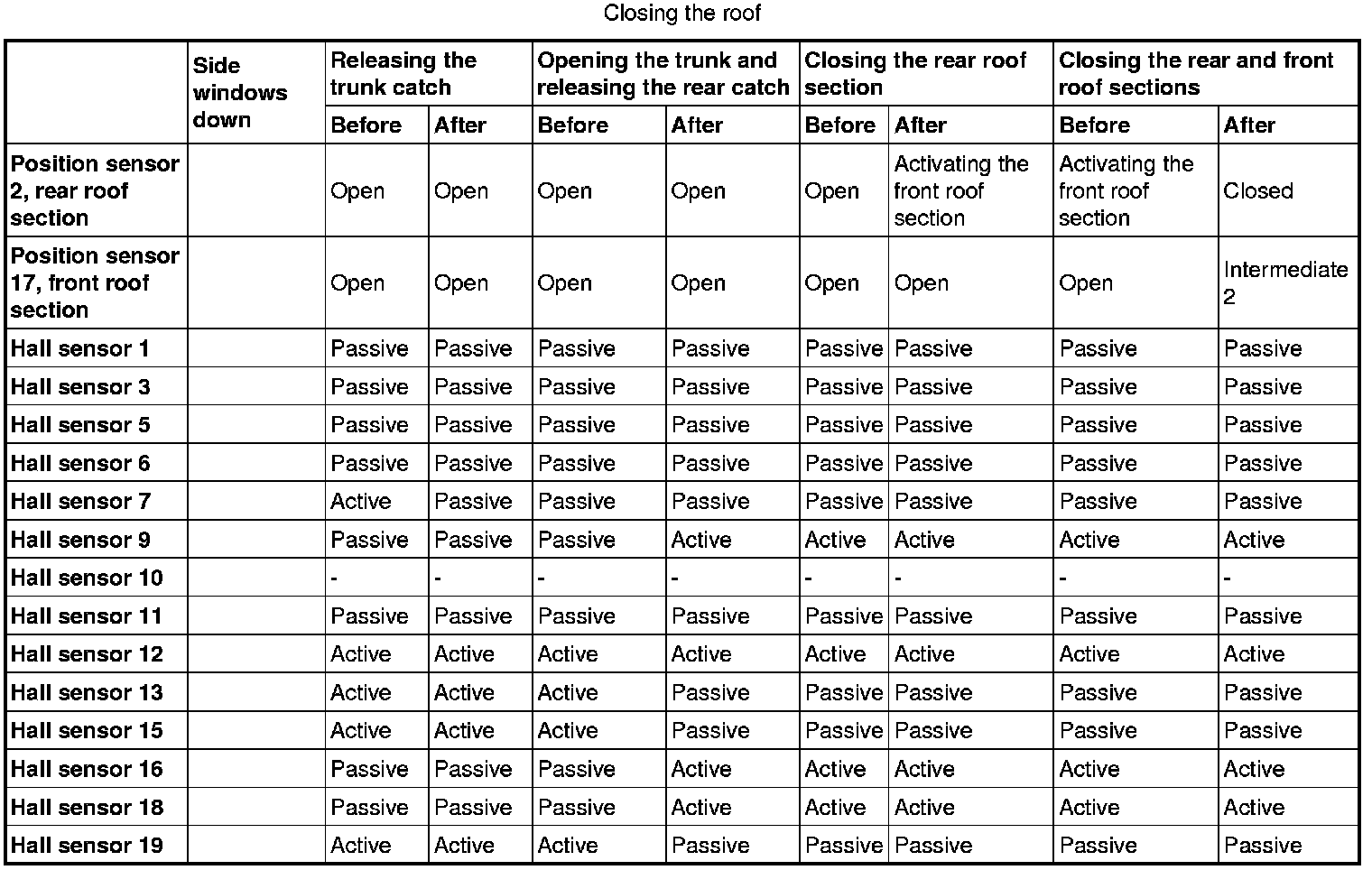

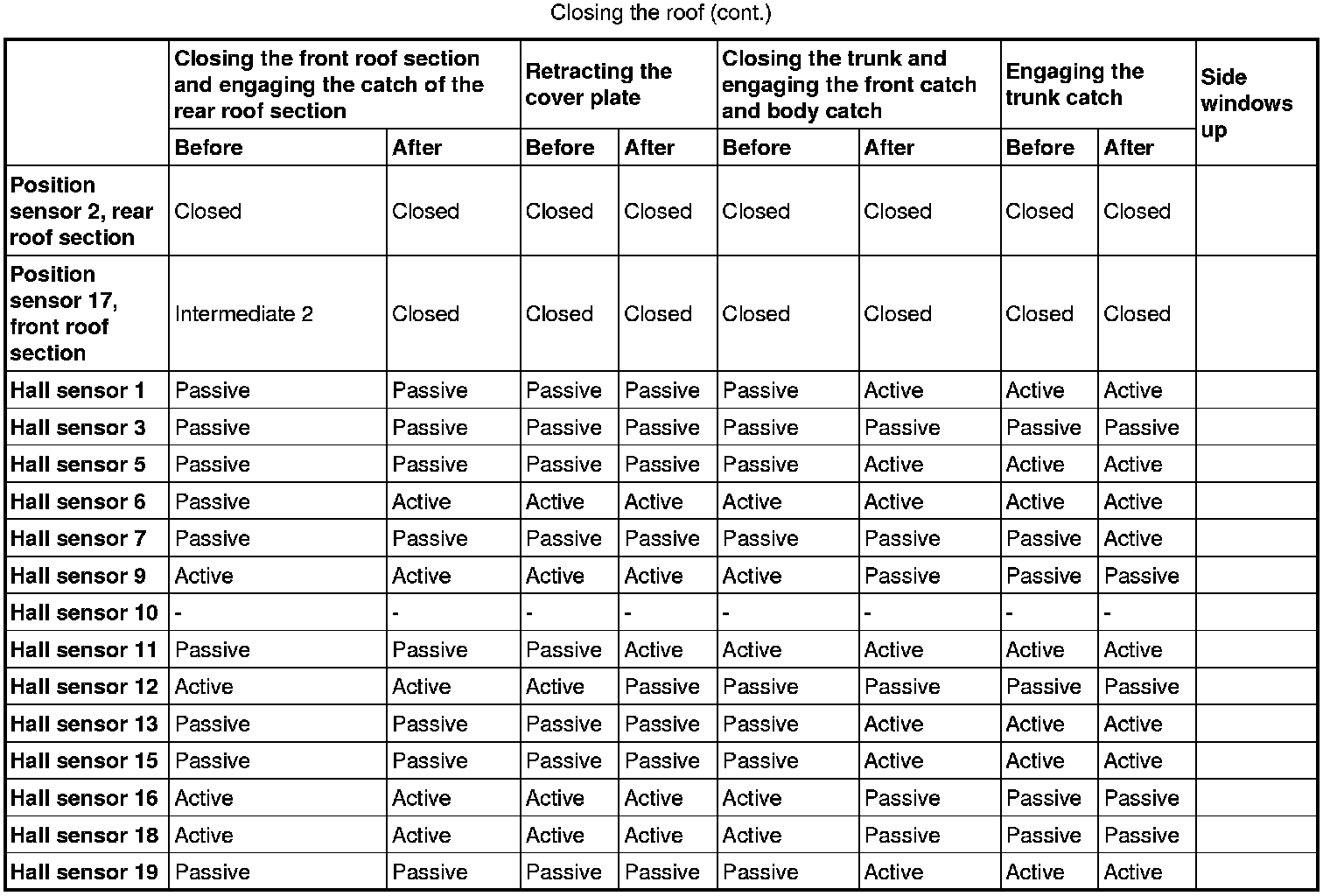

Tables for roof closing

Note! For a more detailed description of Hall sensor locations, see Location of components Locations.





Note! For a more detailed description of Hall sensor locations, see Location of components Locations.

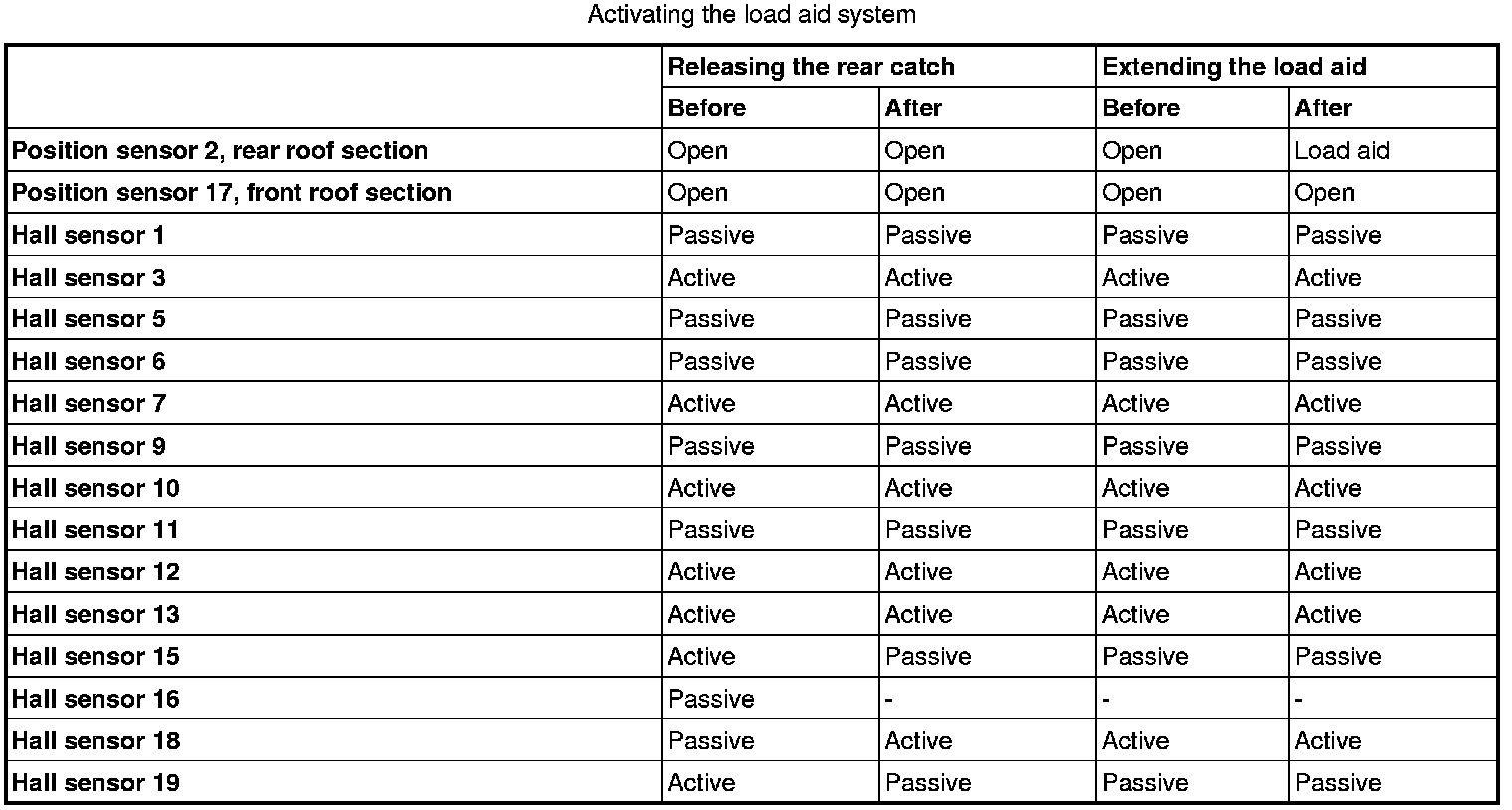

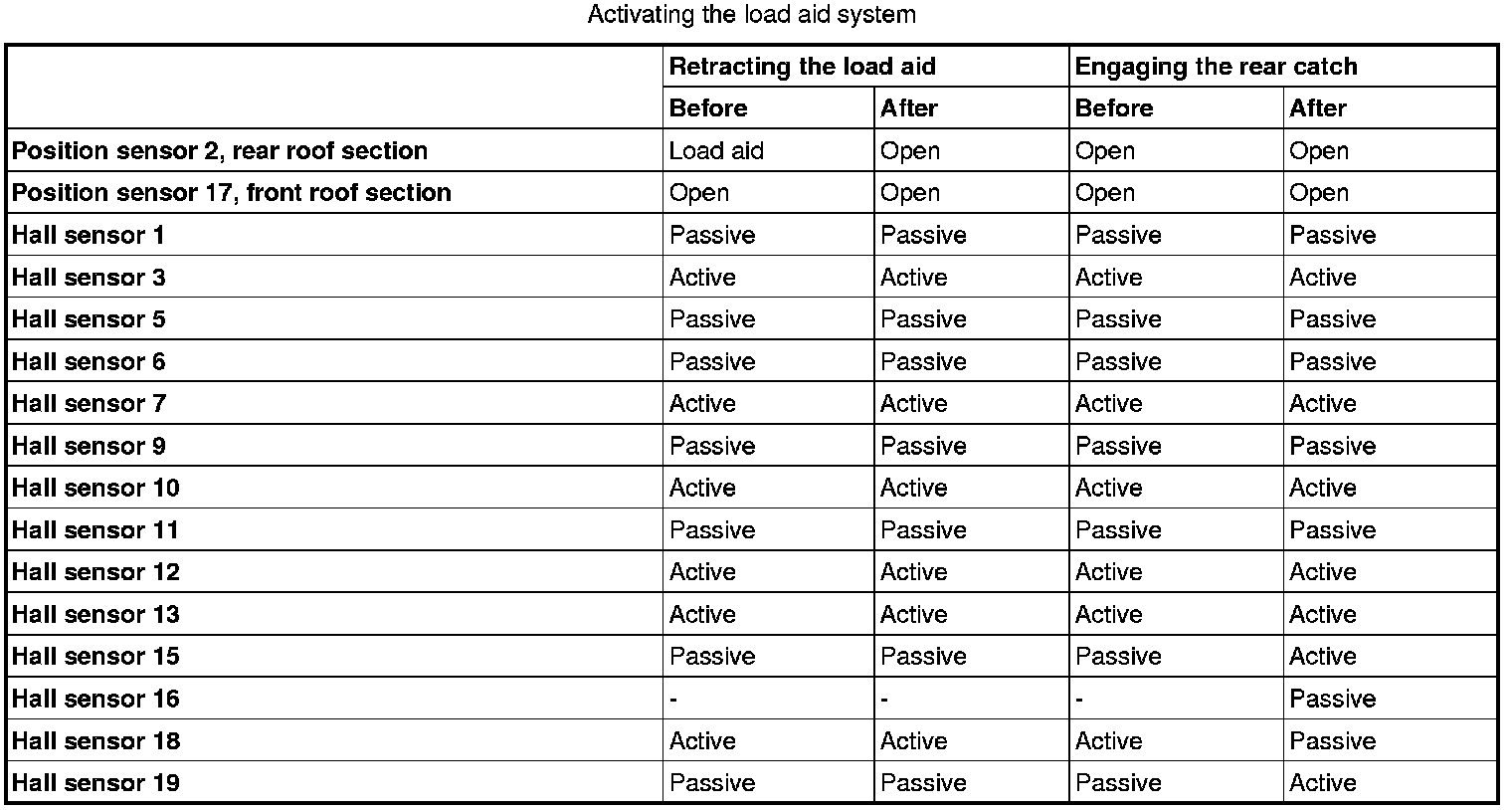

Table for load aid system

Note! For a more detailed description of Hall sensor locations, see Location of components Locations.





Note! For a more detailed description of Hall sensor locations, see Location of components Locations.
