Convertible Top Rear Latch

Convertible Top Rear Latch

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the rear roof panel lock




1. Remove nuts, 2 pcs M6.

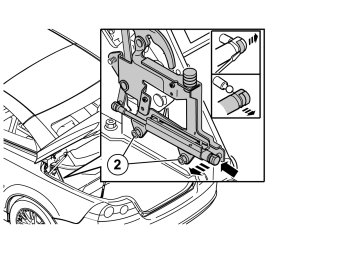

Detach the rear edge of the hydraulic cylinder.

Remove:
- the 2 M6 nuts (2).

Installation

Installing the rear roof panel lock

Note! For tightening torques, see: Tightening torque [1][2]Body and Frame.

Install in the reverse order.
