Convertible Top Front Latch Cylinder

Convertible Top Front Latch Cylinder

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal





Remove:
- the front headlining as described in Front headliner Front Headliner. Completely close the roof

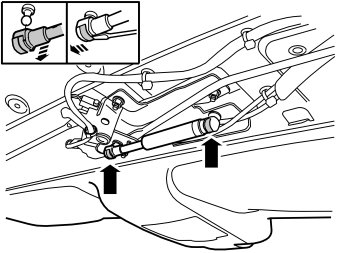

- the 2 retainers

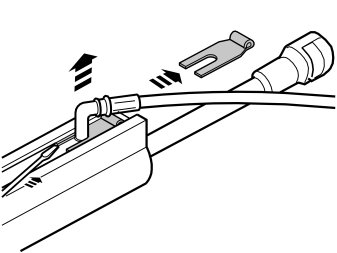

Remove the 2 retainers of the hydraulic hoses.

Note! Mark the hoses before replacement.

Caution! Risk of oil spill. Use protective paper. O-rings must always be replaced.

Installation

Install in the reverse order.

Caution! Check the function of the roof by operating it from the closed position to the open position and then closed again. Check the fluid level in the hydraulic pump's expansion tank. Fill with fluid as necessary, part no. 3074 1424.
