Convertible Top Deck Lid Strut: Service and Repair

Tonneau Cover Lift Cylinder

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

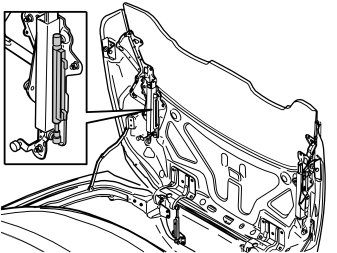

Remove the panel as described in Luggage Compartment Lid Trim Panel Luggage Compartment Lid Trim Panel .

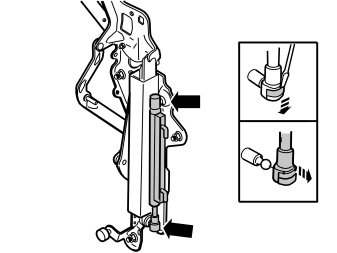

Remove:
- the 2 retainers








- the 2 retainers of the hydraulic hoses.

Note! Mark the hoses before replacement.

Caution! Risk of oil spill. Use protective paper. O-rings must always be replaced.

Installation

Install in the reverse order.

Caution! Check the function of the roof by operating it from the closed position to the open position and then closed again. Check the fluid level in the hydraulic pump's expansion tank. Fill with fluid as necessary, part no. 3074 1424.
