Inner Rear View Mirror

Inner rear view mirror

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

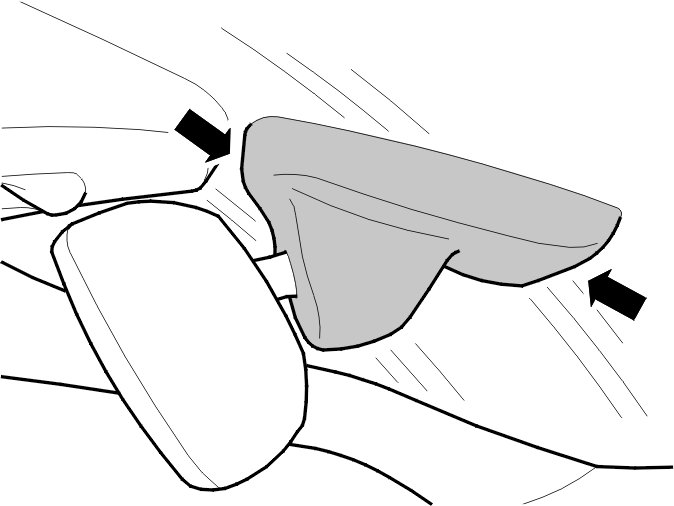

Removing the cover




Press together the two short sides on the cover. Pull the cover towards you.

Removing the door mirror





Remove:
- the mirror. Turn counter-clockwise
- the connector.

Installation

Installing the door mirror

Install:
- the connector.
- the door mirror
- the cover.

Note! If the mirror has a compass, the relevant geographical area must be set. Calibration must then be carried out.

Finishing

Calibrating the compass
Calibrate the compass. See: Compass Calibration Testing and Inspection.
