Center Armrest Rear

Center armrest rear

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the upholstery

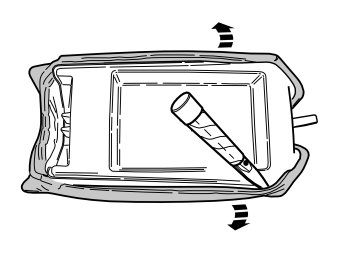

Undo the grip strips starting at the top edge.
Remove the upholstery.

Transferring components

Transferring the retaining strap
Pull out the retaining strap.

Installation

Installing the upholstery
Install in the reverse order.
