Front Cross-Member: Service and Repair

Sub-frame front, replacing

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

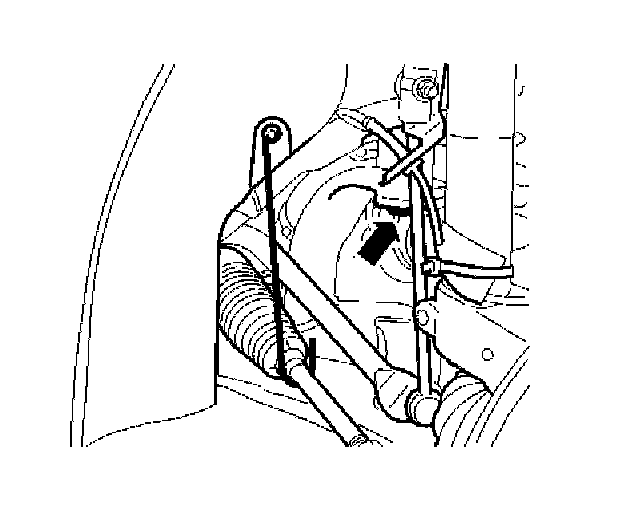

Remove the anti-roll bar.

Removing the sub-frame





Remove the 2 screws for the front mounting for the sub-frame.

Lower the sub-frame approximately 10 cm.

Detach the heated oxygen sensor (HO2S) wiring from the sub-frame.

Remove the sub-frame.

Note: Take care not to fray or trap any cables when lowering the sub-frame.

Installing the sub-frame
Carefully lift the sub-frame.

Install:
- the heated oxygen sensor (HO2S) wiring. Use new clips
- the 2 screws for the front mounting for the frame loosely.

Finishing
Install the anti-roll bar.
