Front Door Limiter: Service and Repair

Door stop front side door

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal





Remove:
- the speaker as described in Loudspeaker, side door front Loudspeaker, Side Door Front

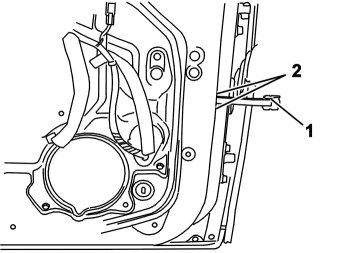

- the screw (1) from the A-post
- the 2 nuts (2) from the front edge of the door.
Pull out the door stop through the speaker aperture.

Installation

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

Install:
- the door stop
- the 2 M6 nuts
- the M8 screw.
- the speaker as described in Loudspeaker, side door front Loudspeaker, Side Door Front.
