Antenna, Global Positioning System Module (GPS)

Antenna, Global positioning system module (GPS)











Note! Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Applies to vehicles with GSM or Sirius reception

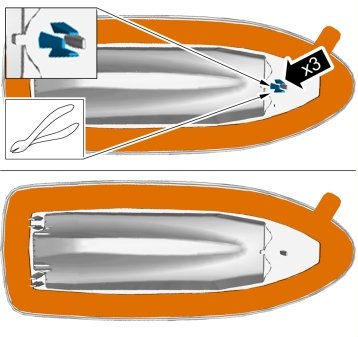

Remove the panel. Refer to: Luggage Compartment Lid Trim Panel





Applies to all





Caution! Make sure that the surface is clean and free of foreign material before taping around the component.

Caution! Apply force uniformly from both directions to prevent paint damage.

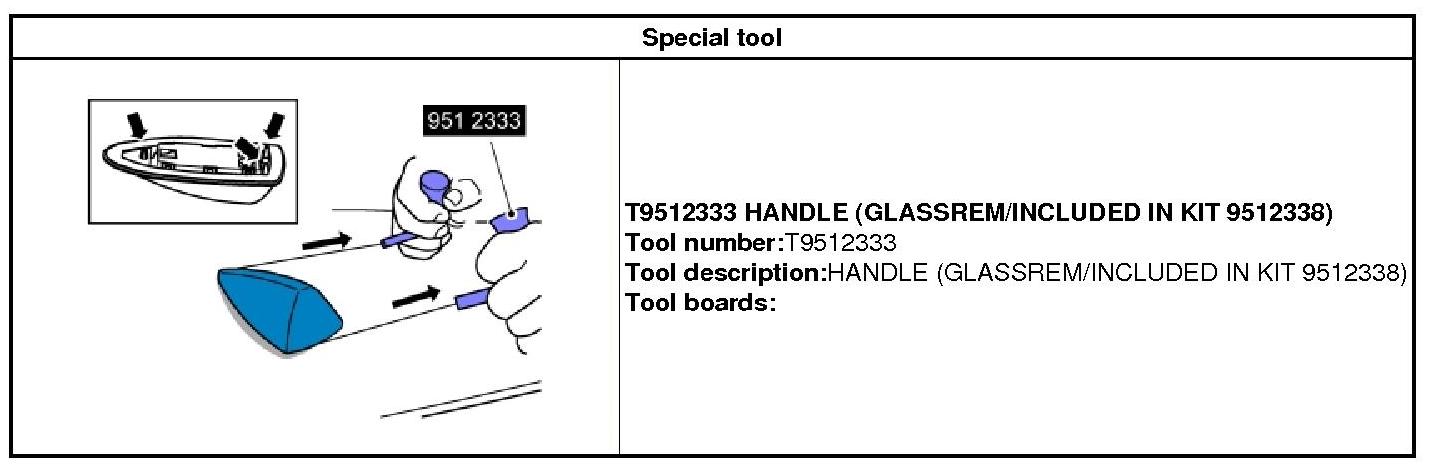

951 2333 handle 951 2333 Handle
Use: Piano wire 0.75 mm.





Installation

Vehicles manufactured before chassis number: 022788






Applies to all
If re-using screws the antenna cover, replace the tape. Refer to: Tape antenna cover navigation system (GPS) Tape Antenna Cover Navigation System (GPS)




Follow the instructions for work with double-sided tape. Refer to: Components with double-sided tape

Caution! Ensure that an even amount of force is used as a counterhold from underneath the roof.

To install, reverse the removal procedure.
