Auxiliary Input / Output Jack: Service and Repair

Extra audio input (AUX)

Operation number: *

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Note! Removal steps in this procedure may contain installation details.

Remove the general audio player control module. Service and Repair

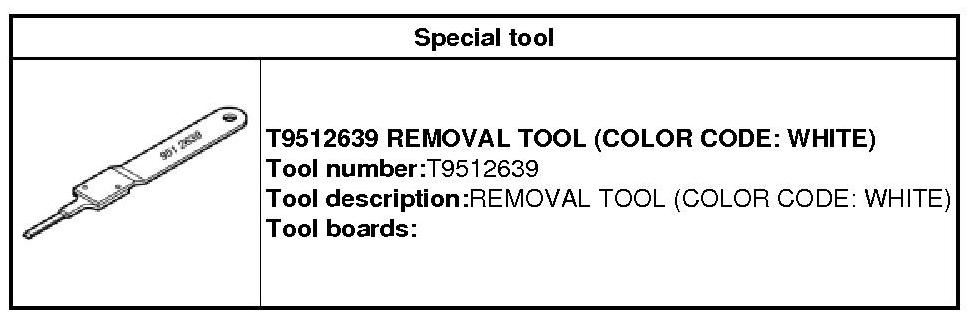

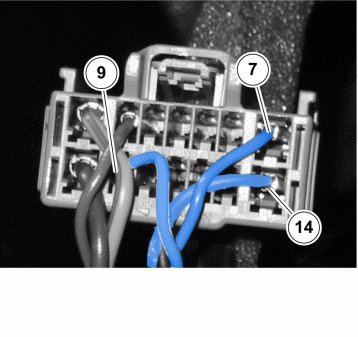

- Remove cables 7, 9 and 14. Use: 951 2639 Terminal removal tool 951 2639 Terminal Removal Tool
- Install the cables.

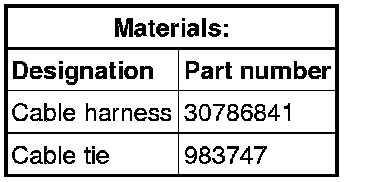

Use: Cable harness, 30786841

Use: Cable tie, 983747

Installation

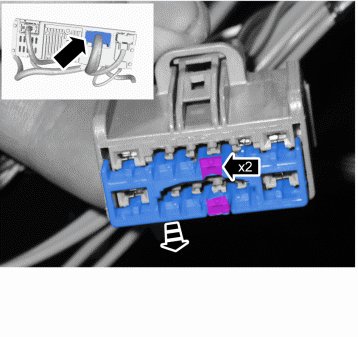

Install the service cable according to markings on the terminals.

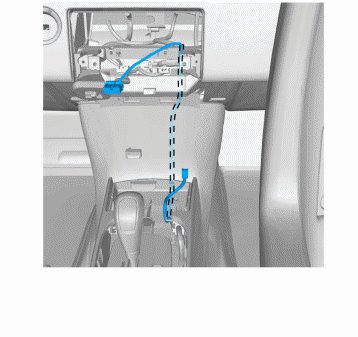

Route the cable behind the panel and install the connector in the AUX socket.

Install the general audio player control module. Service and Repair
