Bluetooth, Mute Kit
Bluetooth, mute kit
INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.
Bluetooth, mute kit
Note! These installation instructions display installation on left-hand drive cars. Where the operations differ, right-hand drive versions are also displayed with text and images. Steps 1-19 and 45 show installation on left-hand drive cars. For installation on right-hand drive cars carry out the procedures on the opposite side and/or mirrored

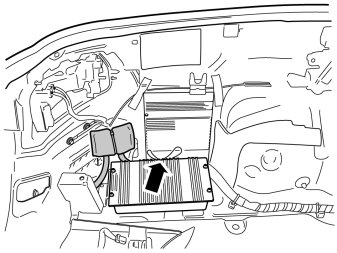

Note! Cars with Performance Sound audio system have an internal amplifier that is placed in the media player. Cars with High Performance and Premium Sound audio systems have an external amplifier, which is located on the left-hand side of the cargo compartment.
- Turn the ignition switch to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
Preparations, passenger compartment
Steps 2-19 apply to cars with internal amplifiers
- Open the glovebox.
- Pry off the panel in front of the center console. It is secured with two clips on each short side.
- Pull the panel away downwards.
- Apply tape to the center console to protect it during removal and installation of the glove compartment.
- Remove the panel.
- Detach the clip holding the vent from the glove compartment.
- Remove the rubber mat from the glovebox.
- Remove the 5 x screws from the opening.
- Pull the glovebox straight back in the vehicle in order to release the hidden clips, x 2, in the top edge.
- Remove the outer section of the glovebox.
- Unplug the connectors on the top.
- Fold the carpet to the right of the center console.
Connection for the mute relay
- Locate the mute relay and lift it out.

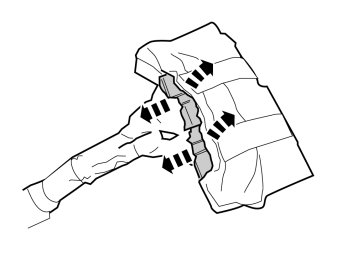

- Raise the foam tape slightly and remove the connectors.

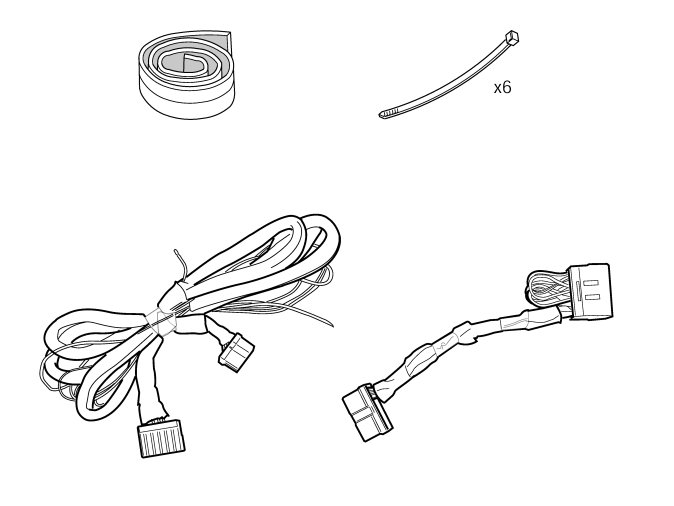

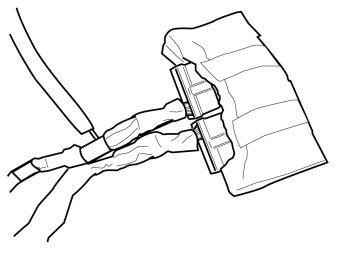

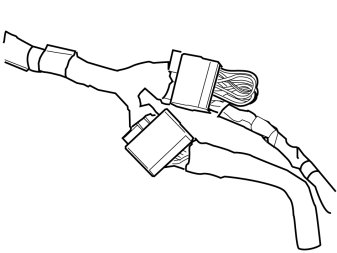

- Take the two cable harnesses from the kit and connect them to the disconnected connectors.
- Connect the new cable harnesses to the relay.
- Fold the tape back into place.
- Take the foam tape from the kit and cut it off in the middle. Tape one piece around each connector.
- Reinstall the relay.
- Fold back the carpet.
- Route the yellow cable on the impact pipe and continue along to the sill.
- Secure the cable using two tie straps.
Preparations, continued
- Remove the center section of the rear seat backrest.
- Detach the two rear backrests by gripping them at the top and pulling forward/up.
- Detach the seat cushion by gripping the front edge and pulling it forward.

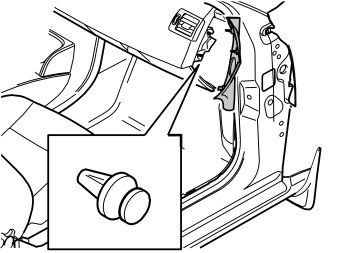

- Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.
- Remove the screw and the rear sill trim panel.
Preparations, cargo compartment, applies to all models
- Open the boot lid/tailgate.
- Lift up the cargo compartment divider.
- Remove the covers on each side of the divider.
- Unscrew the two nuts on each side of the divider four turns.
- Lower the divider slightly.
- Unscrew the third nut on each side of the divider four turns.
- Lower the divider completely.
- Detach the wire frame from the clip.
- Lock the two partition arms in place with a cable tie (for example) on the right and left side.
- Remove the partition by taking hold of the arms and lifting upward.
Remove:
- the cover
- the spare wheel, if in place.
- Remove the screw clip and anchorage eyelet with its screw.
Applies to cars with a tool box
- Take the tools out of the toolbox.
Remove:
- the screw clip.
- the screw.
- the toolbox.
- Remove the three screws and the cargo lashing eyes from the floor.
- Remove the cover for the trunk lid's stop by prying off the cover and weatherstrip using a weatherstrip tool.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Remove the two light bulbs by pressing in the two catches at the top with a screwdriver.
For cars with emergency release handle in cargo compartment
- Remove the emergency opening handle by pressing out the pin at the eye and unhook the wire.
- Remove the two screws in the sill molding.
- Pull the sill molding up until the clips release. Remove the large connector and remove the sill molding.
- Remove the cargo compartment carpeting.
- Remove the rubber stop on the roof's stop bracket on the right side.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Mark out the stop bracket for the roof in relation to the screw.
- Remove the screw and the roof's stop brace.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Remove the load divider lock by using a weatherstrip tool to pry between the carpet and lock.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Disconnect the connector on the left-hand lock.
- Remove the screws and the anchorage eyelet on the right side.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Remove the stop bracket cover on the right side.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Mark out the stop brackets for the roof in relation to the screw and the nut.
- Remove the screw, nut and the roof's stop braces.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Undo the four clips on the side panel.
Applies to cars with external amplifier
- Repeat the operation on the other side.
- Remove the side panel by unhooking it from the stop lug at the front edge and the pulling outward and upward so that it releases from the sealing strip.
Applies to cars with external amplifier
- Repeat the operation on the other side.
Cable routing
Steps 45-48 apply to cars with internal amplifier.
- Route the cable between the floor mat and sill.
Caution! Position the cable so that it does not get trapped or damaged.
Only applies to left-hand drive vehicles.
- Route the cable along the existing cable harness backwards and into the cargo compartment.
Only applies to Right-hand vehicles
- Route the cable (2) over to the right-hand side of the car and along the existing cable harness backwards and into the cargo compartment.
Caution! Position the cable so that it does not get trapped or damaged.
- Route the cables along the existing cable harnesses in the cargo compartment.
Caution! Ensure that the cable is positioned so that there is no risk of it catching or rubbing.
Connection for the mute relay
Steps 49-54 apply to cars with external amplifiers
- Locate the mute relay. Cut off the tie strap and lift it out.

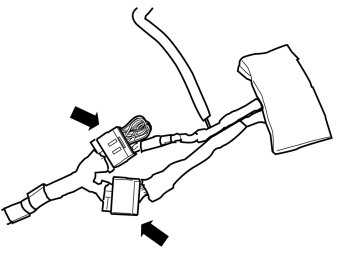

- Unplug the connectors.
- Raise the foam tape slightly and remove the connectors.
- Take the two cable harnesses from the kit and connect them to the disconnected connectors.
- Connect the new cable harnesses to the relay.
- Fold the tape back into place.
- Take the foam tape from the kit and cut it off in the middle. Tape one piece around each connector.
- Reinstall the relay.
- Fold back the carpet.

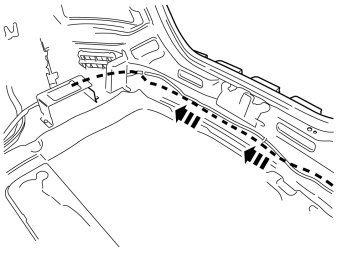

- Position the cable by the existing cable harness, at the side and at the rear edge of the cargo compartment, all the way from the mute relay to the right-hand wheel arch.
Note! Do not damage the cable terminal when routing the cable.
Connecting to the accessory electronic module (AEM), applies to all models
- Pull the accessory electronic module (AEM) away from its console.
- Unplug the small connector (1) on the accessory electronic module (AEM).
- Disconnect the large connector on the accessory electronic module (AEM) by pressing in the catch (2) and pulling the black handle (3) in the direction of the arrows until a click is heard.
- Disconnect the connector from the accessory electronic module.
- Remove the black catch holding the black switch in place in the connector by pulling in the direction of the arrow.
- Remove the black switch by inserting a pointed object in the hole on the other shorter side. Press the switch out.
Note! The numerical markings on the top and bottom of the black terminal pin are extremely small, so be careful when installing the cable.

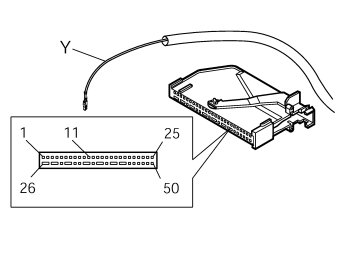

- Connect the routed yellow (Y) cable to terminal 11 (telemute) in the black connector.
- Reinstall the black switch in the connector. Lock into place using the catch.
- Press the connector into the Accessory Electronic module. Secure using the black locking handle.
- Reinstall the small connector.
- Reinstall the accessory electronic module (AEM).
- Secure the excess cable using a tie strap.
Finishing work
Steps 59-60 apply to cars with internal amplifier
- Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.
Reinstall:
- the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
- the clip in the vent on the glovebox
- the panel on the dashboard end face.
- Remove the tape.
- the panel inside the center console.
- the sill trim panels.
- the seat cushion and backrests.
Applies to all models
Reinstall:
- the side panels (Check that the sealing strip is on the outside of the panel).
- stops and attaching braces.
- the cargo compartment carpeting.
- the sill panel with lighting.
- any emergency release.
- the cover for the cargo compartment stop.
- the cargo lashing eyes, tightening torque: 24 Nm (18 ftlb.)
- the tool box, if applicable.
- the spare wheel, if in place
- the divider, remove the tie straps, tighten the nuts to 10 Nm (7.3 ftlb.).
- Download the software for the accessory's function.
Carry out a function test as follows:
- Turn the ignition key to position I.
- Turn on the radio.
- Check that the control panel for Bluetooth lights up.
- Press the round button in the middle of the control panel.
The radio should mute and a voice should start to speak.
- Press the button with the red handset symbol.
The voice should stop and the radio sound should return.
