Volvo Guard Alarm System, Movement Sensor

Volvo Guard Alarm System, movement sensor




























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Alarm, movement sensor

Note! When affixing the tape, the underlying surface must maintain a temperature of at least +20°C (68°F).

Preparations




- Turn the ignition switch to position 0.




- Remove the center section of the rear seat backrest.

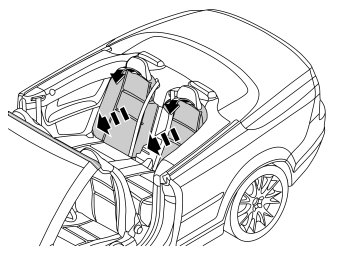

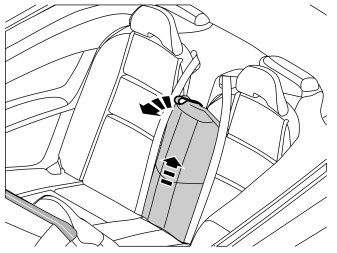

- Undo the two rear backrests by pulling them at the top.




- Detach the seat cushion by gripping the front edge and pulling it forward.




- Carefully use a weatherstrip tool to pry loose the panel at the rear edge of the center console. Unplug the connectors.




- Remove the screws.




- Open the glovebox.
- Carefully pry off the panel inside the center console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel away downwards.




- Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Note! Do not damage the panel and dashboard.

Repeat the operation on the other side.

Hint: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.

- Fold the surround backwards. Remove by pulling upwards.




- Press out the display module (1) from the reverse of the center console. Use both hands and press straight back.
- Disconnect the two connectors. Put the display to one side.




- Remove the two screws holding the center console to the dashboard.
- Remove the connector on the reverse of the dashboard environment panel.
- Remove the center console from the dashboard and tunnel console.





Applies to cars with manual gearbox
- Detach the gear selector boot by prying loose the front edge using a weatherstrip tool.
- Thread the boot through.

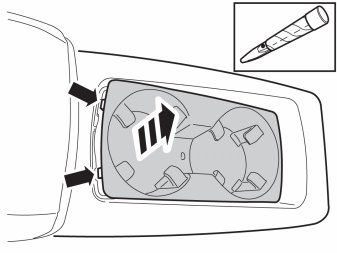

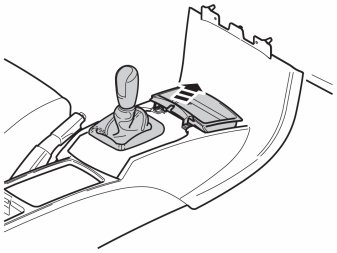

- Remove the rear cupholder from the rear tunnel compartment by prying the front edge and pressing in the two catches.

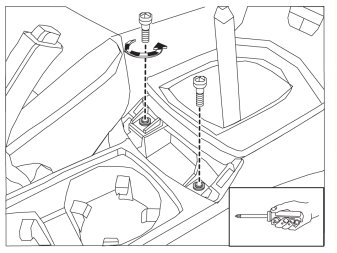

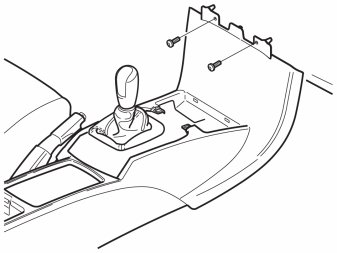

- Remove the screws.

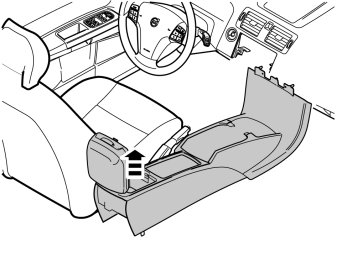

- Remove the rear tunnel compartment by pulling it upward/rearward so that it releases from its retainers.

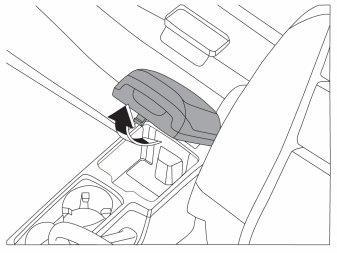

- Raise the armrest.

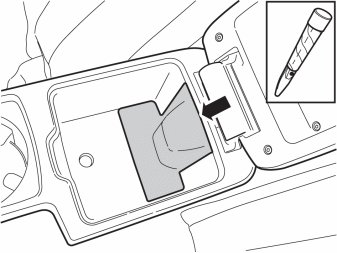

- Remove the cover.

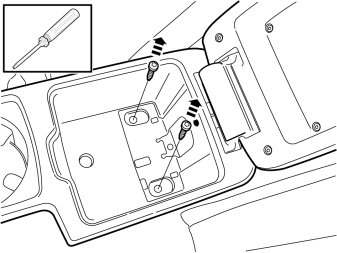

- Remove the screws.




- Remove the cover panel.

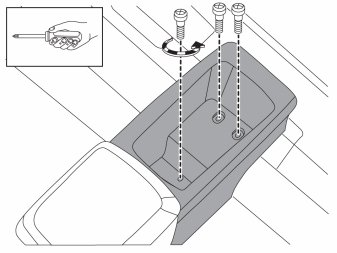

- Remove the screws.




- Detach the handbrake boot frame from the tunnel compartment.

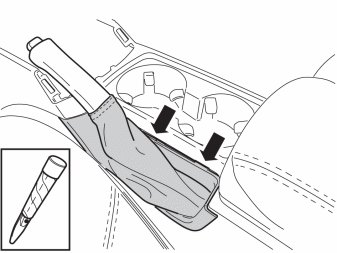

- Remove the boot from the handbrake lever.

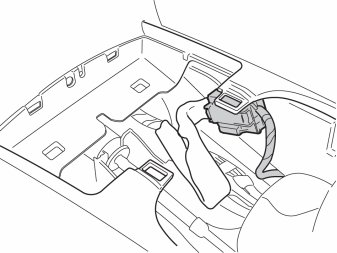

- Unplug the front connector.




- Unplug the rear connector and clip.




- Apply the handbrake.

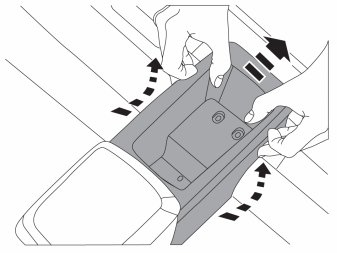

- Raise the rear edge of the tunnel compartment about 45° so that it is free of the handbrake lever. The lift the compartment upwards and rearwards.
- Position the tunnel compartment bottom side up.

Installation

Installing the front movement sensor




- Locate the three guide lugs on the back of the tunnel compartment.





For tunnel compartment without pre-drilled holes

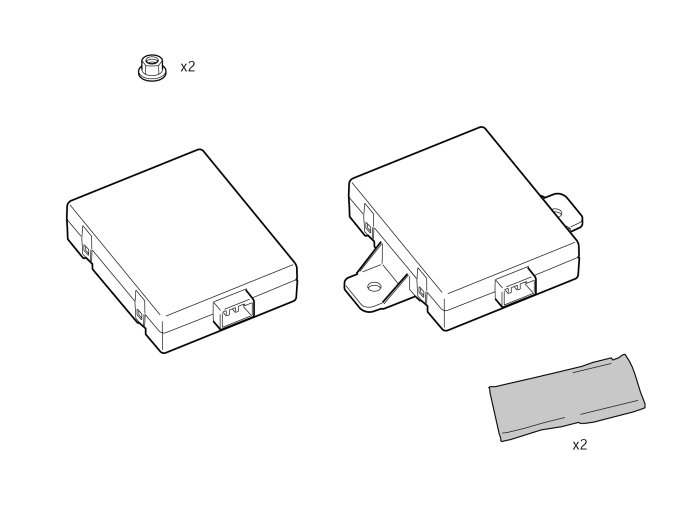

- Take the movement sensor without mounting eyelets from the kit. Position the sensor between the guide lugs with the label facing up and the connection facing forwards.

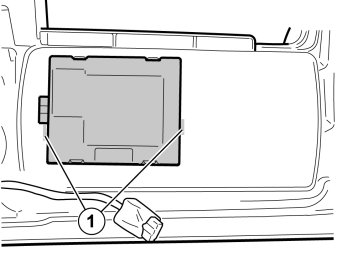

- Make markings (1) 18 mm from the lower long side at the edge of the sensor.





For tunnel compartment without pre-drilled holes

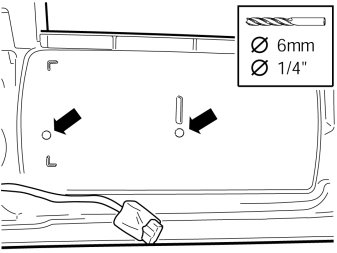

- Remove the sensor and drill holes in the markings using a -6 mm (1/4") bit.

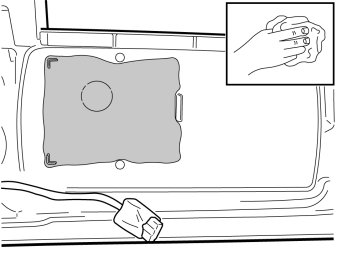

- Use isopropanol to clean the area of the tunnel compartment where the movement sensor will sit. Allow to dry.




- Use isopropanol to clean the smooth side of the movement sensor without mounting eyelets. Allow to dry.

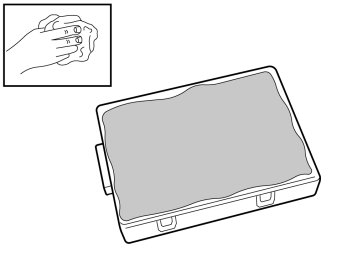

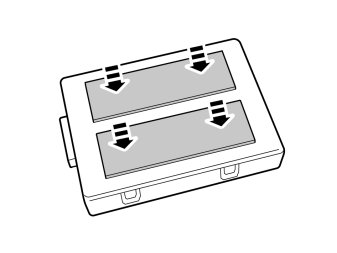

- Affix the double-sided tape to the movement sensor.

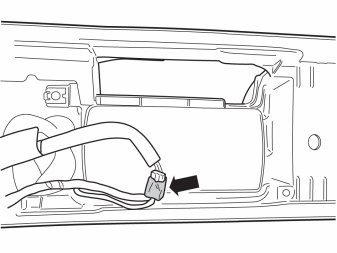

- Remove the tape holding the pre-routed, 4-pin green connector in place.

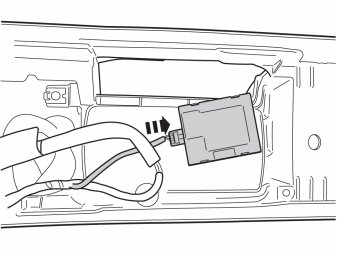

- Plug in the connector to the movement sensor.

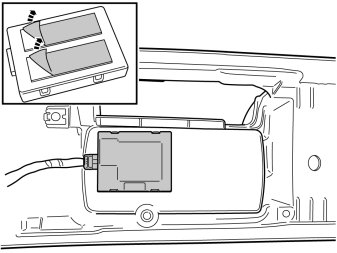

- Remove the protective backing from the tape and position the movement sensor between the guide lugs as illustrated. Press hard so that the tape adheres.

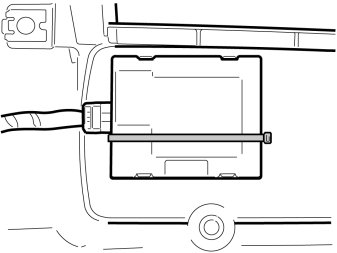

- Secure the sensor with a tie strap threaded first through the rear hole and then through the front. The tie strap catch should face rearwards.

Installing the rear movement sensor




- Remove the tape holding the connector of the pre-routed cable harness on the floor beneath the rear seat.

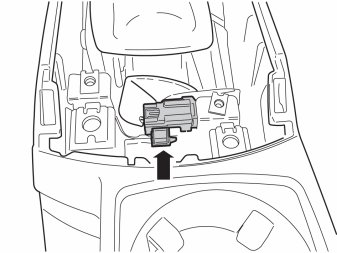

- Take the other movement sensor from the kit and position it at the back part of the floor on the existing screws. Secure it with two nuts from the kit.




- Plug in the pre-routed connector to the movement sensor.

Reinstall:
- the tunnel compartment with panels
- the connectors

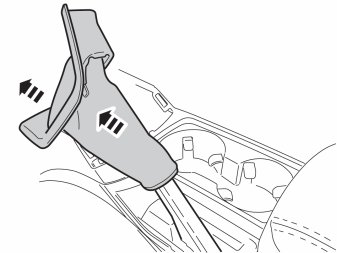

- the handbrake lever boot
- the rear tunnel compartment with cupholder
- the center console

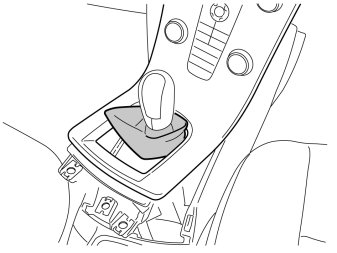

- the gear selector boot (hook the rear edge into place first)
- the display unit
- the panel behind the center console
- the seat cushion
- the backrests.
- Download the software for the accessory's function.
