Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information ICM-1A55

Condition

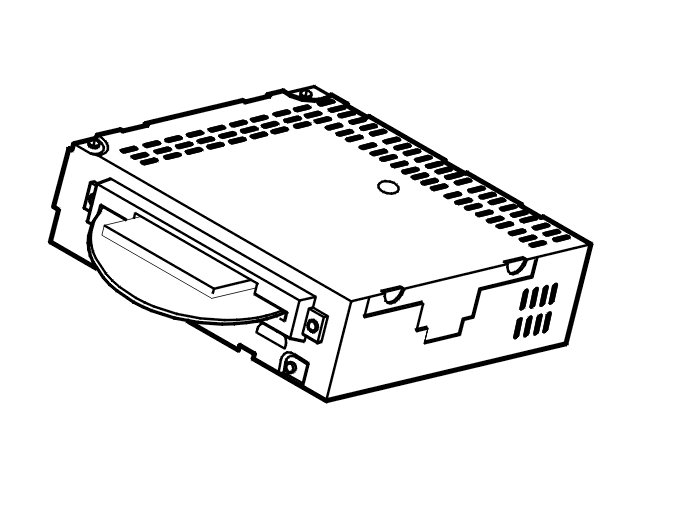

The infotainment control module (ICM) checks the communication with the media player module (MPM).
The diagnostic trouble code (DTC) is stored if the infotainment control module (ICM) registers a fault in the communication with the media player module (MPM).
The diagnostic trouble code (DTC) can be diagnosed with the ignition on and the battery voltage above 11 V.

Substitute value
- None.

Possible source
- Internal fault in the media player module (MPM)
- The media player module (MPM) missing.

Fault symptom[s]
- The media player does not function.
