Home >> Volvo >> 2005 >> XC90 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/274 >> Premier Only

Premier Only

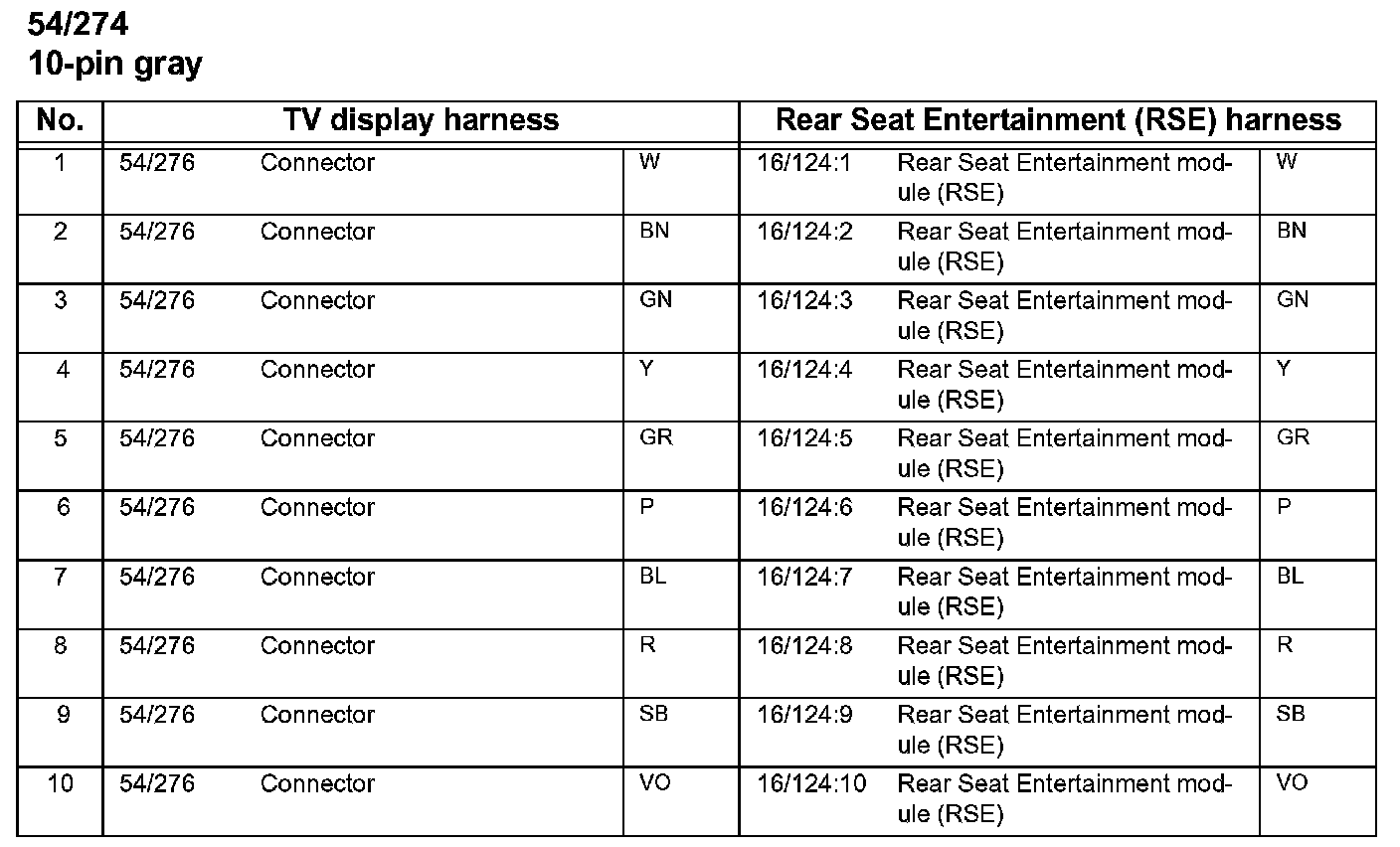

54/274:



54/274, 275 Connector:
