Infrared Transmitter Head Restraint, Replacing

Infrared transmitter head restraint, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

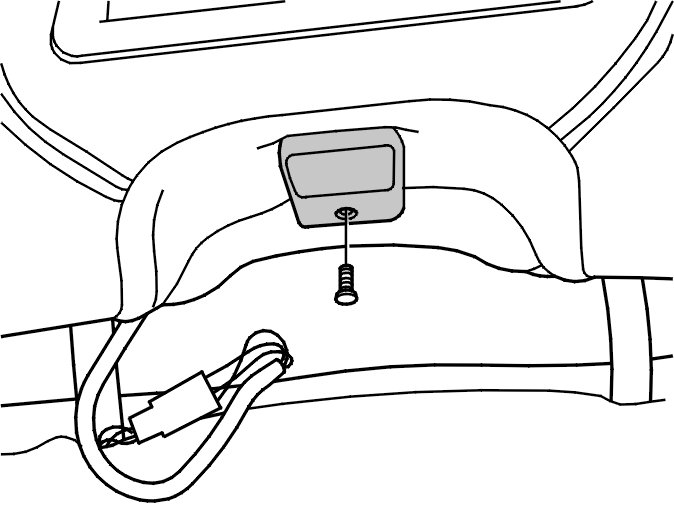

Removing the infra red transmitter





Remove:
- the head restraint. See: Head restraint front seat Head Restraint Front Seat Head restraint front seat Head Restraint Front Seat
- the screw
- the infra red transmitter.

Installation

Installing the infra red transmitter

Install:
- the infra red transmitter
- the screw
- the head restraint. See: Head restraint front seat Head Restraint Front Seat Head restraint front seat Head Restraint Front Seat.
