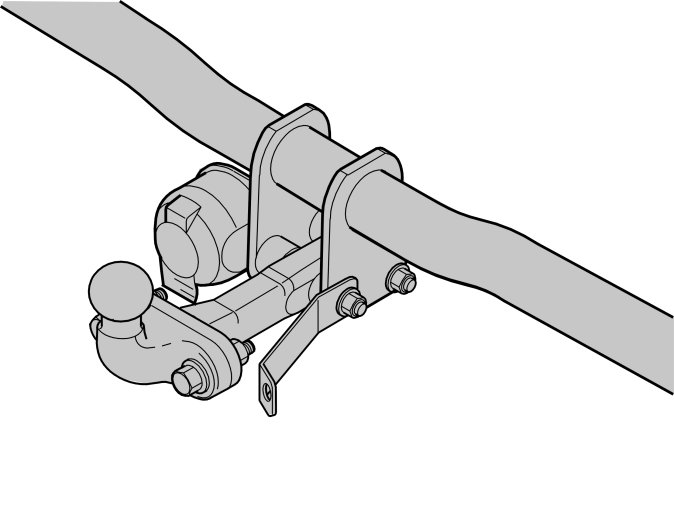

Tow Hitch, Flange

Tow hitch, flange

ENG/FRA




































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






S60 / V70 (00-) / S80 / XC90
The impact sensor control module is located on the tunnel below the centre console in front of the parking brake.

WARNING!
The airbag inflation areas must be free from obstructions. Do not place any objects, e.g. clothes or accessories, within these areas. The panels must be able to open the exact right way at the exact right time. Otherwise there is a greater risk of injury in the event of an accident.






WARNING!
The ignition key must be set to position '0' and removed from the ignition switch before any connector for the SRS system is unplugged. Then wait at least one minute. Disconnect the negative lead of the battery before unplugging any of the connectors. After work is complete, turn the ignition key to position 'II' before reconnecting the negative lead of the battery.
