Treble Loudspeaker, D-Post

Treble loudspeaker, D-post















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Treble loudspeaker, D-post

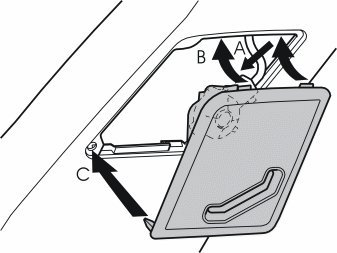

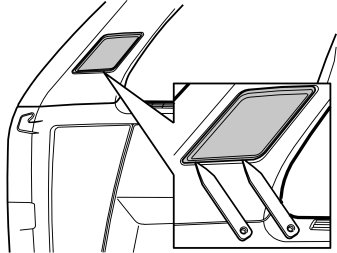

- Remove the loudspeaker grille in the D-post (secured by two catches) by carefully prying loose at the rear edge using a weatherstrip tool.

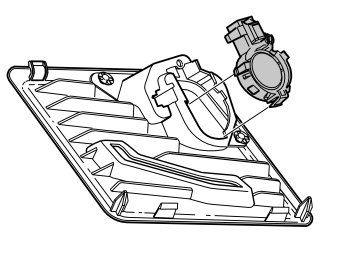

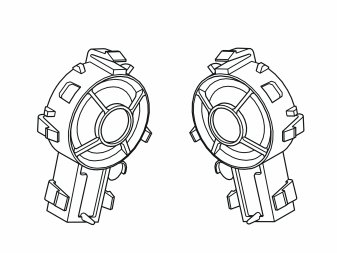

- Install the treble loudspeaker (marked LH for the left and RH for the right) on the reverse of the loudspeaker grille. Press into position.




- Connect the pre-routed cables to the treble loudspeaker. Reinstall the loudspeaker grille with the loudspeaker
- Repeat the operation on the other side.
