Sealing Rings Connecting Socket, Replacing
Drive Shaft, CV Joint, B5254T4, TF-80SC AWDSealing rings connecting socket, replacing
Special tools:
999 5777
999 5575
999 5576
999 2615
999 7181
999 7182
NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.
Removal
Removing bevel gear
Remove the bevel gear according to: Bevel gear, replacing.

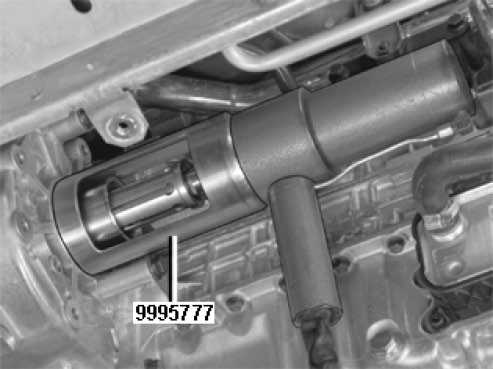

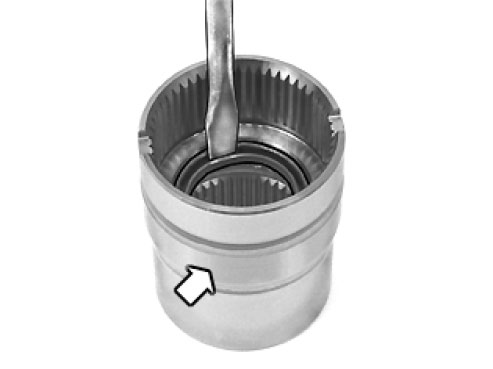

Install: 999 5777 and 999 5777 to 999 5575.
999 5575 used with: 999 5576 (foot operated).
Alternatively: 999 2615, which consists of puller cylinder and a compressed air powered hydraulic pump.
NOTE: Place a container under the transmission.
Installation
Heat the sleeve in an oven to 100 - 120°C and place in: 999 7181. Install on the transmission and tap in the sleeve until it reaches the differential.
WARNING: Use protective gloves when handling the heated sleeve.
WARNING: Use ear protectors
Cool the sleeve using compressed air.

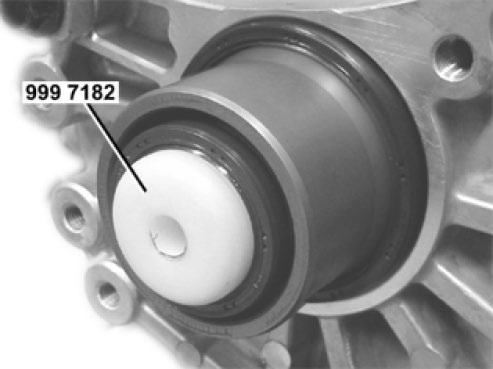

Install: 999 7182.
Carefully install both sealing rings.

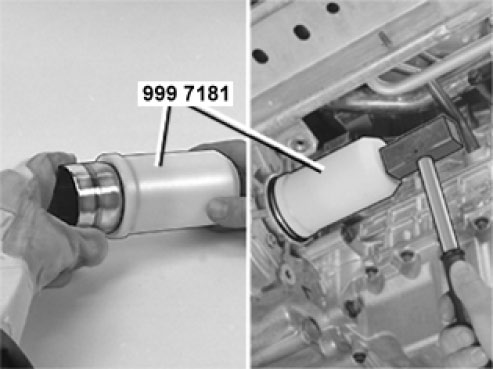

Use: 999 7181 and tap in both the seals.
Installing the angle gear
Fit the bevel gear according to: Bevel gear, replacing.
Checking the oil level
Check the fluid level in the transmission. See: Oil level, checking.
