Relays, Fuse Boxes and Wiring

Relays, fuse boxes and wiring

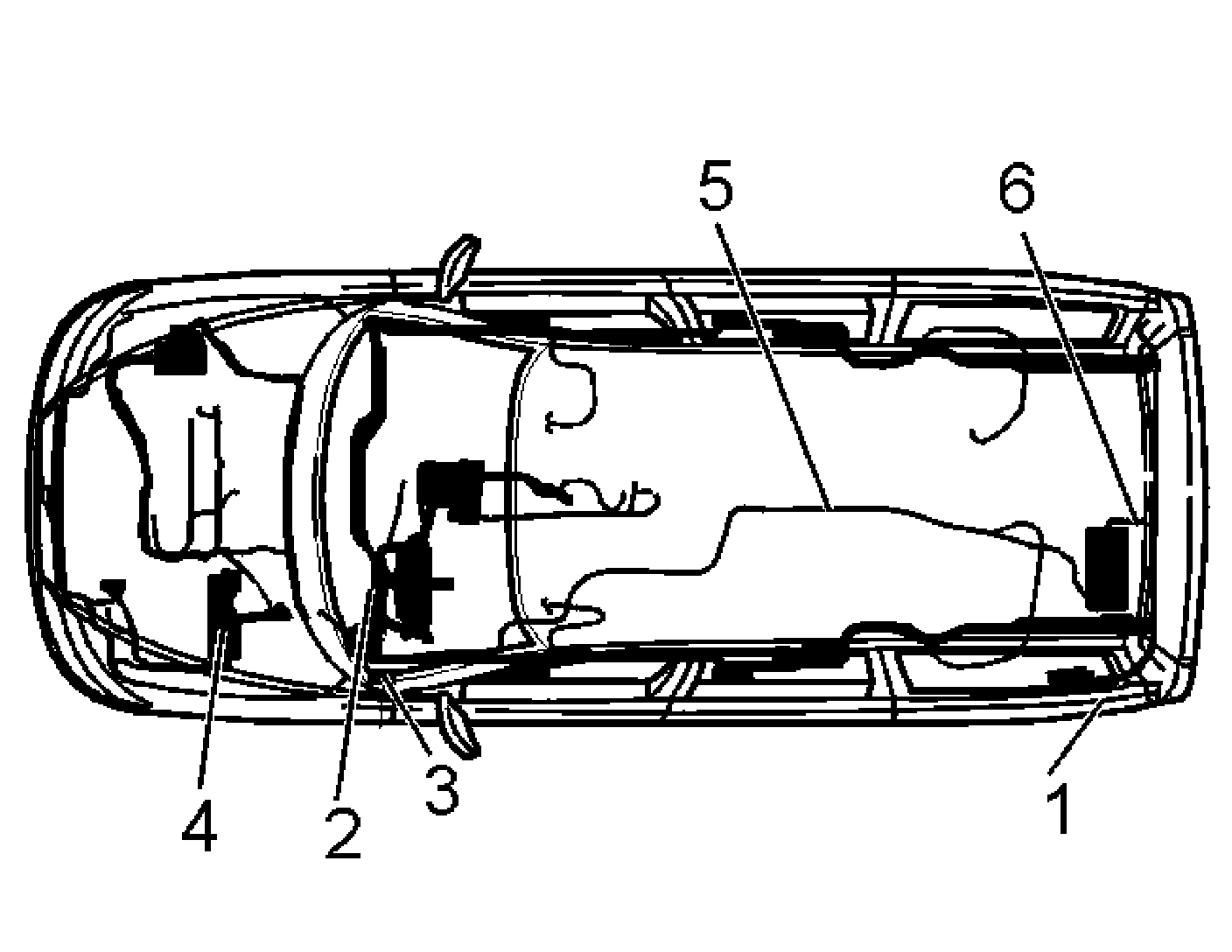

1 Integrated relay / fusebox in the cargo compartment, rear electronic module
2 Relay box in the passenger compartment, central electronic module (CEM)
3 Fusebox in the passenger compartment
4 Integrated relay / fusebox in engine compartment
5 Cable harness
6 Ground cable, battery.
