Engine Control Module

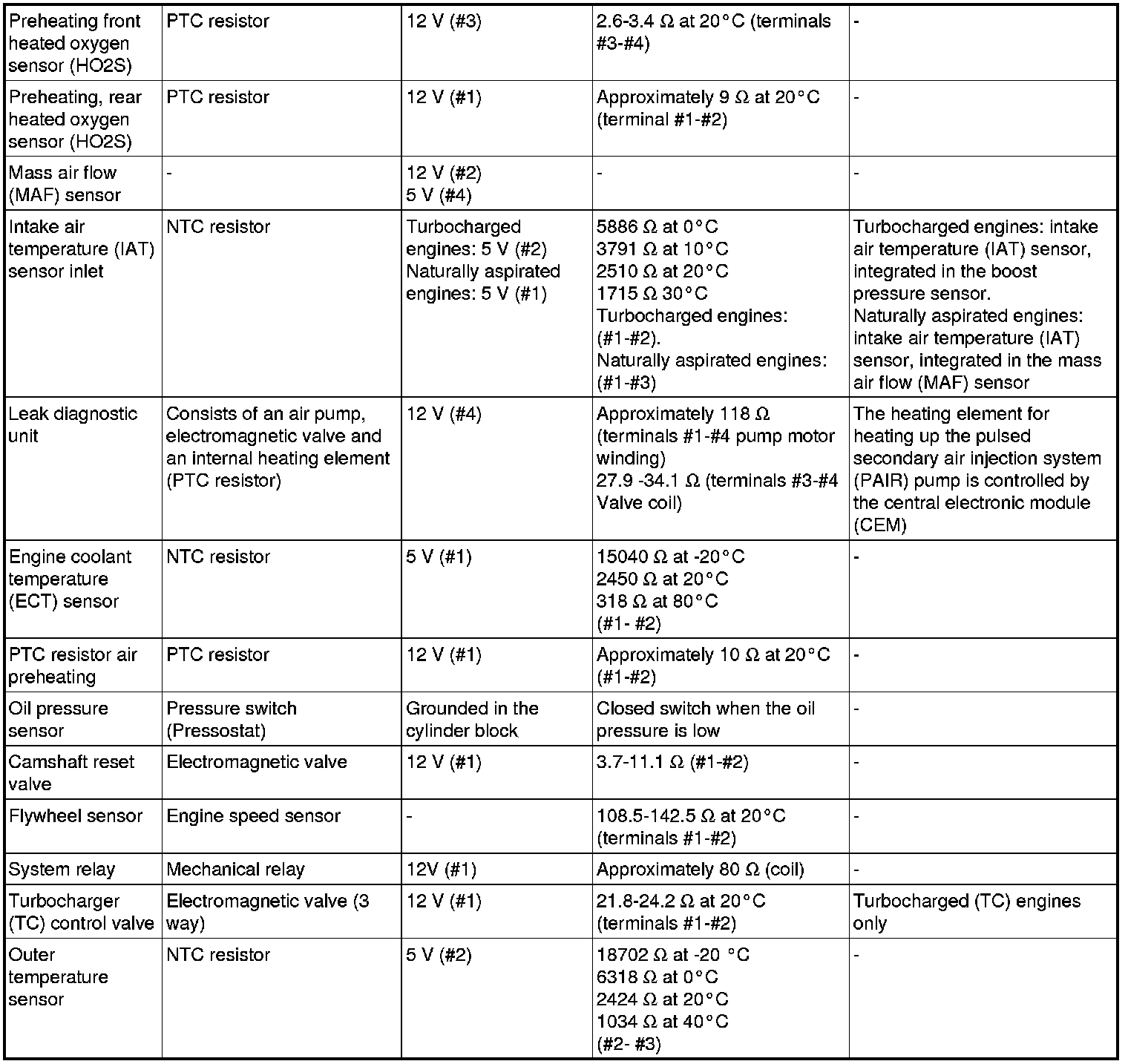

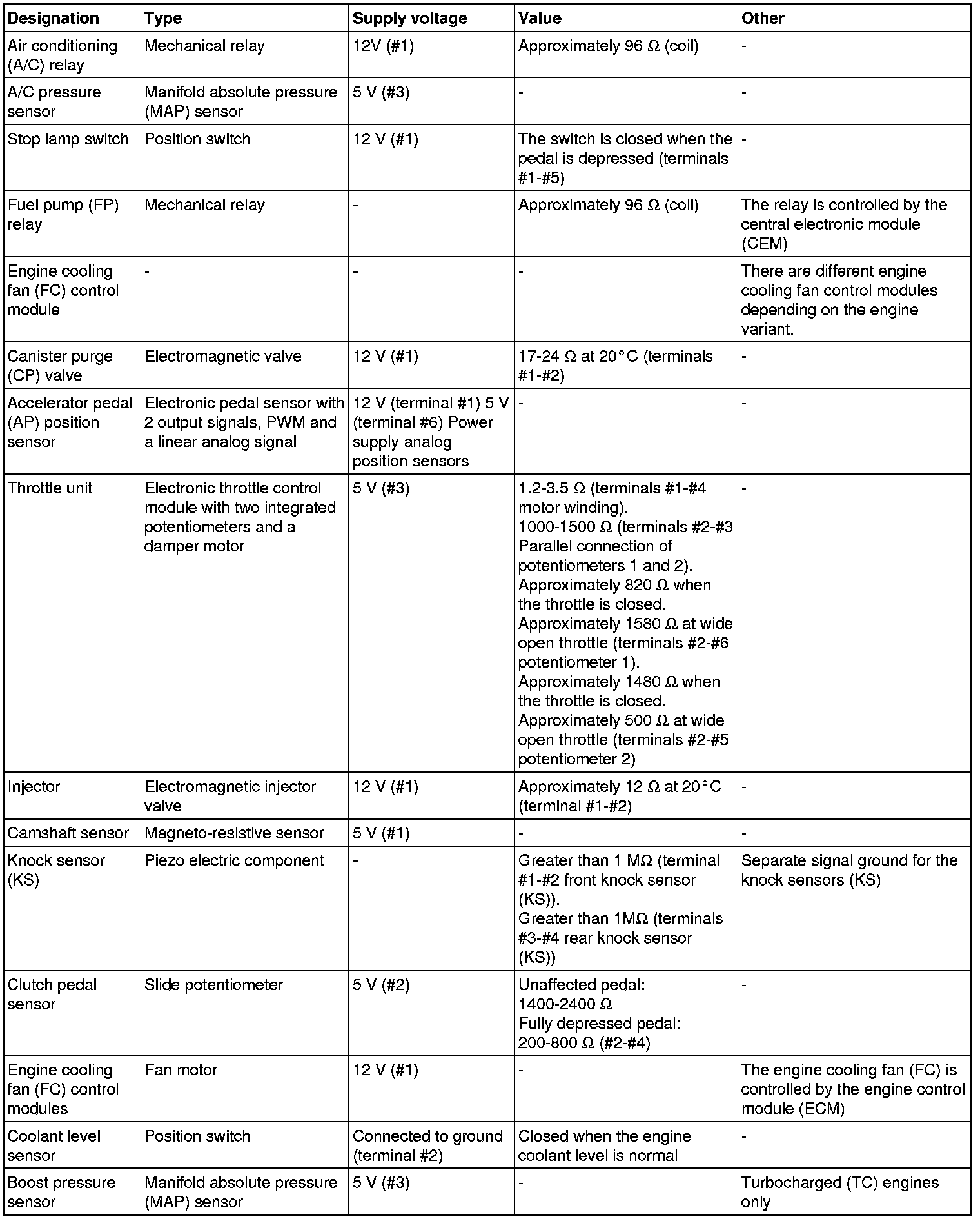

Component specifications

Note! For S60/V70 2004- B5254T2 AW55-50SN US market, see Component specifications [1][2]Engine Control Module.

The component specification gives the value of the component when the connector is disconnected. Where no value is given, it is not possible to measure a relevant value at the component.
The figure within the brackets indicates the terminal pin on the component to which the value refers.
