Headlamp Alignment Sensor: Locations

Other electrical components

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Cleaner

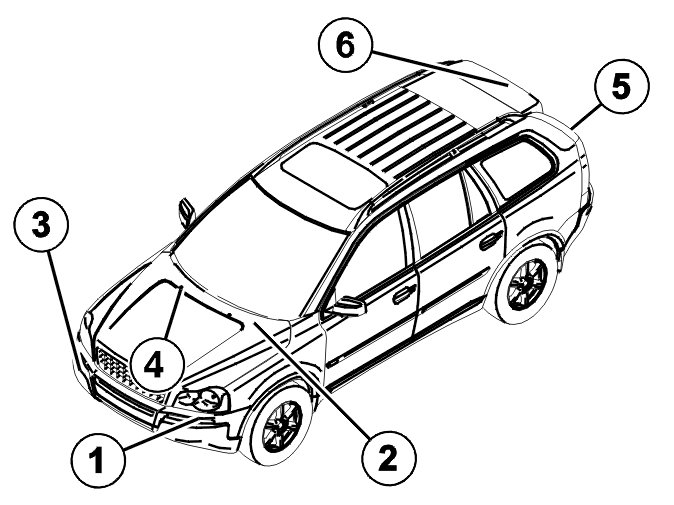

Location Of Components (Cleaner):

1. High-pressure headlamp washer
2. Windshield wiper mechanism and wiper motor
3. Washer fluid reservoir
4. Windshield washer nozzle
5. Rear windshield wiper motor
6. Rear windshield washer nozzle.

Electrical connector

Location Of Components (Electrical Connector):

1. Start switch
2. Turn signal lamp and dip switch
3. Windshield wiper and washer switch
4. Light switch
5. Front cigarette lighter and electrical socket
6. Rear cigarette lighter and electrical socket
7. Data Link Connector (DLC)
8. Door module, driver's door module and passenger door module
9. Switch power window rear side door
10. Switch for the hazard warning signal flasher
11. Dashboard environment panel switches
12. Keypad in the steering wheel.

Automatic monitoring and horn

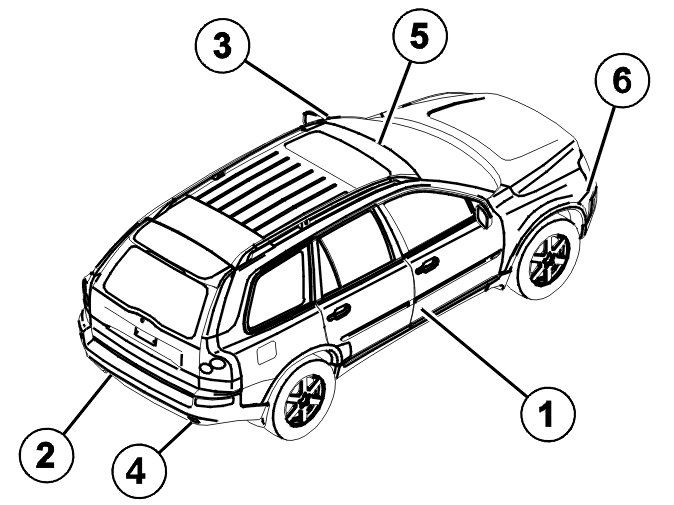

Location Of Components (Automatic Monitoring and Horn):

1. Active yaw control sensor
2. Position sensor Bi-xenon lamps (rear axle)
3. Outer temperature sensor
4. Sensor back-up (reverse) warning
5. Rain sensor
6. Horn.
