Parking Assistance, Rear
Parking assistance module (PAM), rear
INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.
Cars equipped with SRS/SIPS (Airbag)
Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent: 1. Personal injury 2. Damage to or malfunction of the SRS/SIPS system. Work on the SRS/SIPS systems or related components must always be carried out by an authorized Volvo workshop.
Is the car equipped with SRS (supplemental restraint system)?
Cars equipped with a driver's airbag have the letters "SRS" imprinted on the centre panel of the steering wheel. Cars equipped with driver's and passenger airbags are marked with "SRS" on both the steering wheel centre panel and also on the dashboard close to the airbag.
If the car is equipped with SIPS (side impact protection system ) a "SIPS" decal is marked on both the front seats.
Cars equipped with inflatable curtains have the marking "SRS" on one of the panels along the posts on the inside of the car.
Cars equipped with SRS (supplemental restraint system) also have an "SRS" decal on the front windscreen.
Warning! The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery or accessories, within these areas. The panels must be able to open in the correct manner at the right time, otherwise there is an increased risk of personal injury in the event of a collision.
Do not damage the SRS wiring!
Do not trap, chafe, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.
Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the service instructions in VIDA for information on carrying out such work. This is to prevent damage.
SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorized Volvo workshop.
Supplemental restraint system module, SRS
C30/S40(04-)/V50/S60/XC60/C70(06-)/V70/XC70/S80/XC90
The supplemental restraint system module (SRS) is located on the tunnel under the centre console, in front of the parking brake.
Warning! The ignition must be in position "0" and the key removed from the ignition switch if any connector in the SRS system is to be unplugged. Then wait at least three minutes and disconnect the battery negative lead before unplugging any of the connectors. When work is completed, the ignition key must be turned to position "II" before reconnecting the battery negative lead.

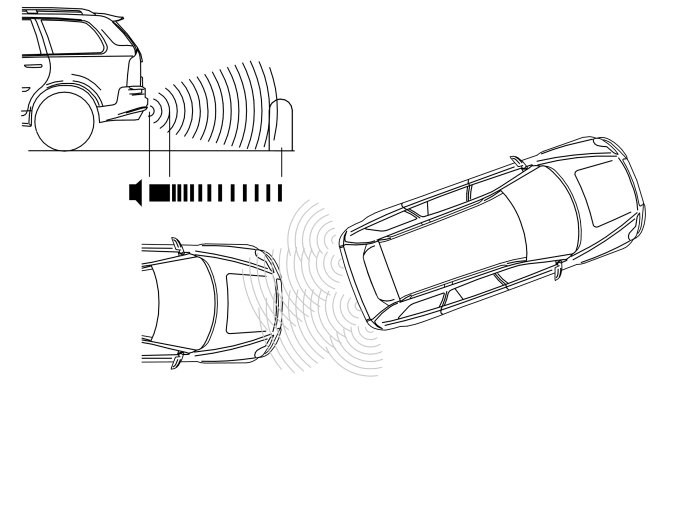

Parking assistance module (PAM), rear

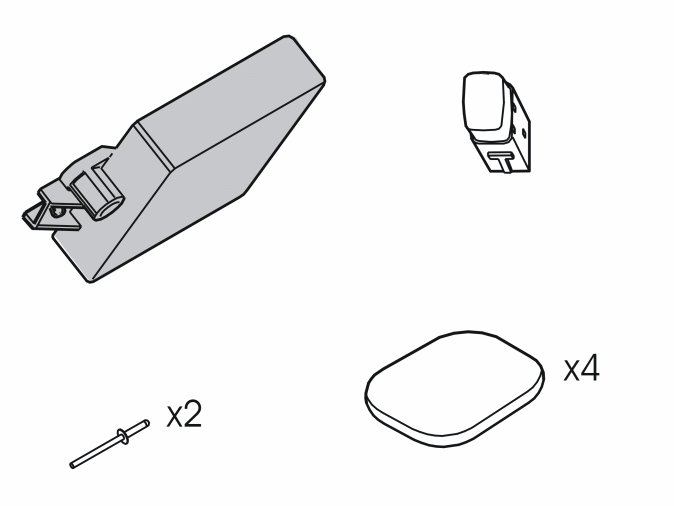

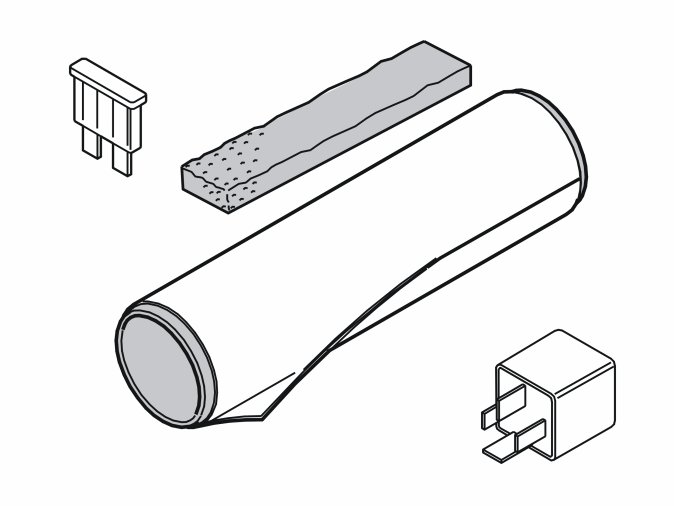

Note! This accessory is connected to the electrical system of the car. It requires software unique to the car.
Installing the sensors
- Turn the ignition key to position 0
- Disconnect the battery negative lead.
Note! Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.
- Clean the bumper. Use a mild soap solution.
Applies to cars with two rows of seats
- Fold up the rear centre floor hatch. If the floor hatch has a carrier bag holder on the underneath, it is secured by a strap on each of the shorter sides of the storage box. These straps must be undone
- Remove the storage box underneath and lift it out
- On two-wheel drive cars, remove the floor hatch completely by folding it back slightly and pulling it backwards out of its mountings.
Applies to cars with three rows of seats and the integrated carrier bag holder on the underside of the centre floor hatch
- Fold up the rear centre floor hatch
- Release the two straps on the panel underneath. Lift up the panel at the rear edge. Fold back the floor hatch towards the panel. Lift out the floor hatch and panel.
Applies to cars with three rows of seats without an integrated carrier bag holder
- Lift up the centre, rear floor hatch at the rear edge and lift it out.
- Remove the three screws in the battery holder. Lift the battery holder out
- Remove the cover from the battery.

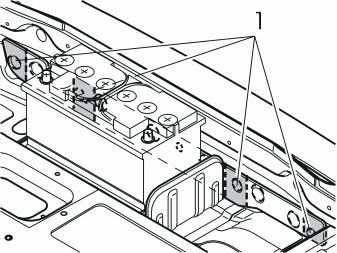

- Remove the four pre-punched sections (1) from the insulation panel in the rear cross member
- Remove the four nuts holding the bumper.

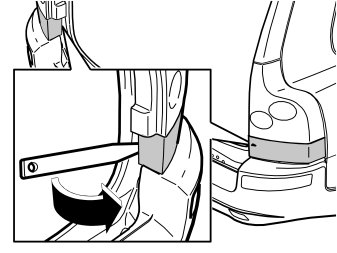

- Remove the panel under the rear lamps on the right and left-hand sides by carefully prying off. Use a weatherstrip tool.

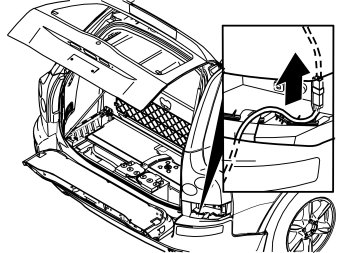

- Disconnect the connectors for the sidemarker lamps on the left and right-hand sides. The connectors must be left in place in their brackets.

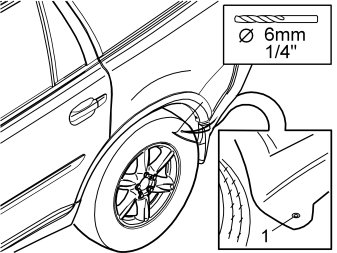

- Drill out the rivets in the rear edge of the wheel arch on the right and left-hand sides. Use a 6 mm (1/4" ) diameter drill bit
- Remove the remains of the rivets.

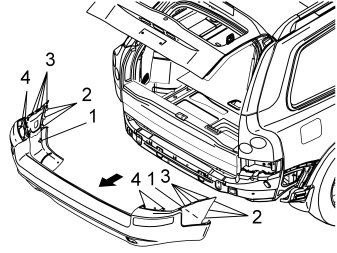

- Pull the ends of the bumper cover away from the body. Pull off the clips (1) at the bottom and continue up along the wing extensions and pull off the three vertically positioned clips (2)
- Pull out the ends some more until the four horizontally positioned clips (3) at the top of the wing extensions release
- Fold up the lower tailgate

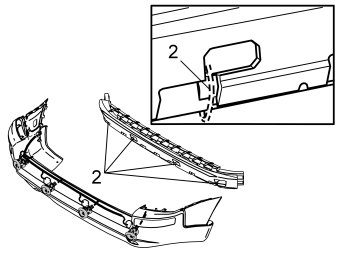

- Pull the bumper back so that the two clips (4) which are accessible from the space under the rear lamps release
- Remove the bumper.
- Place the bumper on a suitable underlay
- Clean the outside of the bumper

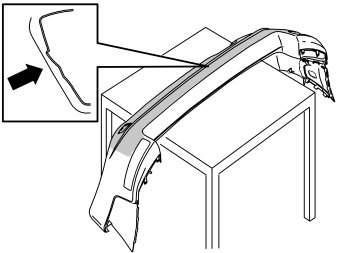

- Install the protective paper evenly distributed over the bumper.
Note! The paper protects the bumper and must be left in place throughout the operation.

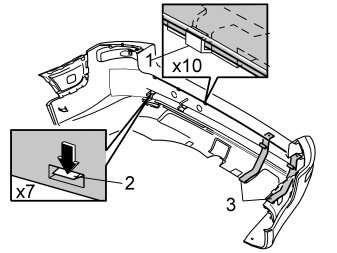

- Release the ten catches in the upper edge (1) of the bumper. Release the seven catches in the centre (2) of the bumper
- Detach the two stays (3) from the lower edge of the bumper cover. Remove the rear section and the foam rubber from the bumper cover.

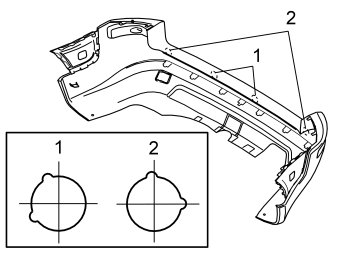

- If necessary, clean the inside of the bumper cover to locate the four markings where the holes for the sensor holders will be drilled

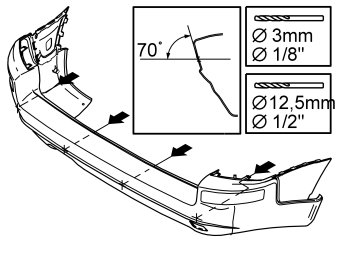

- Pre-drill the holes. Use a 3 mm (1/8") diameter drill bit. Drill out the holes. Use a 12.5 mm (1/2") diameter drill bit.
Note! Ensure that the drill is horizontal when drilling.

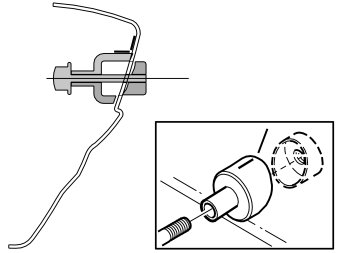

- Take the 27.5 mm (1 1/16") diameter hole cutter (P/N 8671170). Install the hole cutter in the holes; with the screw and the counterhold on the inside and the cutting section on the outside as illustrated. Ensure that both parts of the hole cutter are correctly positioned against the surface of the bumper cover before starting to make holes
- Expand the holes
- The mark on the tool must be pointed upwards and correspond to the centre marking on the cover.
Note! Clean the threads and surfaces of the tool after cutting each hole.
- File out the two semi-circles marked around each hole. Use a small round file. These ensure that each sensor is correctly positioned and does not rotate. The two sensor holders which will be in the centre (1) are the same. The two sensor holders which will be positioned to the sides (2) are different from each other and from the sensors in the centre. The catches on the holders also have text indicating the correct location in the bumper.
Note! The marking may be difficult to see. Carefully check that each sensor holder is correctly positioned.
- Ensure that the edge of the holes are smooth. File the holes if necessary
- Remove the protective paper around the holes
- Take the sensor holders from the kit. Press them into the correct positions in the bumper cover. Press the sensor holders firmly into place. Check that all the catches have engaged.

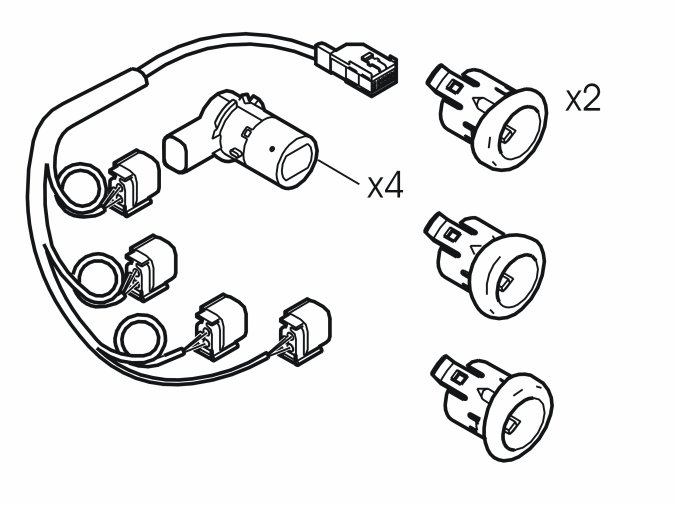

- Take the sensors and the cable harness from the kit
- Connect the connectors on the cable harness to the connectors on the sensors. There must be a click which confirms that the catch has engaged

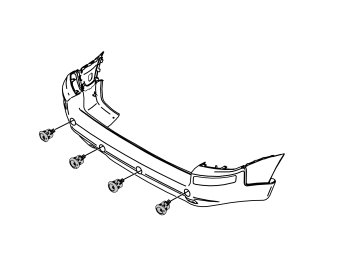

- Press the sensors into place with the cable harness in the relevant holder so that the connector is pointing to the left as illustrated.
- Place the four cables from the sensors so that they are in the vertical cut-outs (2) in the foam rubber
- Press the rear section with the foam rubber into place in the bumper cover. Check that all the catches have engaged and that the stay has engaged around the bottom of the bumper cover.
Points 17-22 apply to cars with tow hitches
Note! On cars with tow hitches, the cable harness for the sensors must be moved: This is to prevent damage from rubbing against the rear edge of the mounting at the sides of the tow hitch.

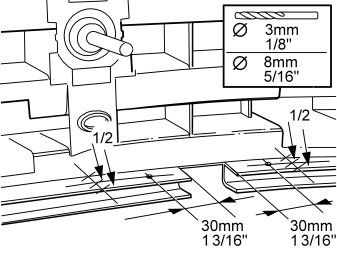

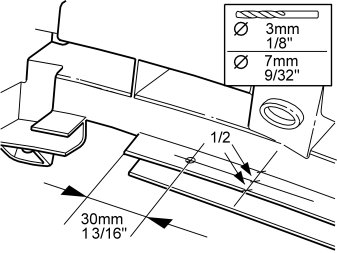

- Measure up to drill the cable lead-in in the upper of the rear section plates as illustrated
- Pre-drill using a 3 mm (1/8") diameter drill bit. Then drill out the hole to a diameter of 7 mm (9/32").

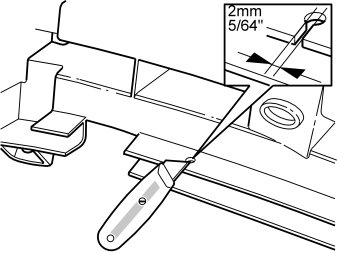

- Cut a 2 mm (5/64") wide groove through the plate leading in to the hole.
- Measure up to drill the lead-in in the upper plate in the rear section on the left and right-hand sides of the cut-out as illustrated
- Pre-drill using a 3 mm (1/8") diameter drill bit. Then drill out the hole to a diameter of 8 mm (5/16").

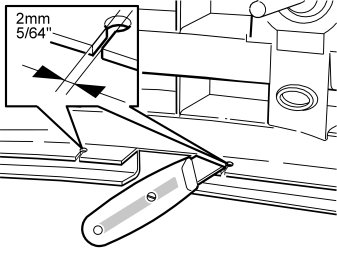

- Cut a 2 mm (5/64") wide groove through the plate leading in to the hole
- Repeat the operation on the other side of the cut-out.
Cable routing on the left-hand side of the bumper
- Press up the tabs on the plates and insert the cable in the holes drilled earlier. Position the cable as illustrated

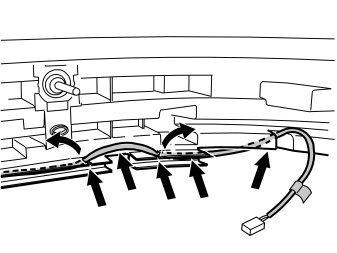

- Route the cable to the right-hand side of the existing cable duct as before.
Cable routing on the right-hand side of the bumper
- Press up the tab on the plate. Insert the cable in the previously drilled hole. Position the cable as illustrated.
Applies to all models

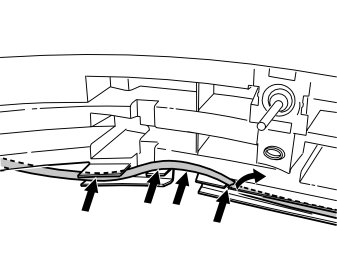

- Press the large cable harness for the sensors into place in the existing cable duct (1) in the bottom of the rear section.

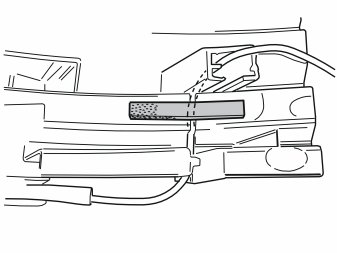

1. Take the piece of foam tape from the kit. Install the foam tape over the cable lead-in on the right-hand side of the rear section of the bumper so that the cable does not fall out.
- Remove the left-hand floor hatch (1).
- Remove the folding side panel from the left-hand side in the cargo compartment.
- Remove the expanded polystyrene seal on the left-hand side in the rear cross member under the left-hand side floor hatch. Do not damage the seal, it will be used again.
- Fold up the lower tailgate

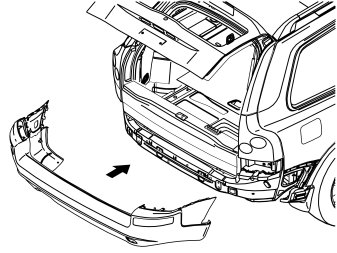

- Reinstall the bumper. Insert the cable from the sensors in the large rectangular hole to the left in the rear cross member and then on to the hole where the expanded polystyrene seal was located. Ensure that the wiring for the sidemarker lamps is in the correct grooves in the spaces under the tail lamps
- Press the four clips for the bumper into place above the sidemarker lamps on the body. Then secure all the clips for the ends to the body
- Fold down the lower tailgate
- Tighten the bumper using the four nuts. Tighten to 16 Nm (12 lbf.ft.)
- Take the new pieces of insulation and reinstall them above the holes for the bumper
- Connect the connectors to the sidemarker lamps
- Reinstall the covers under the tail lamps
- Rivet the bumper into place at the rear edges of the wheel arches on both sides. Use the rivets from the kit.
Installing the parking assistance module (PAM)
Points 29-33 apply to four wheel drive cars, and all cars from model year 2005-
Note! The relay does not need to be installed on four-wheel drive cars.

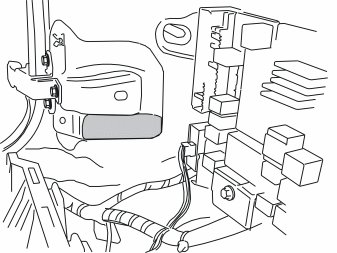

- Clean the flat surface on the panel behind the control module where the Velcro strips will be pressed into place. Use a mixture of 30% windscreen washer fluid and 70% water
- Wipe dry.

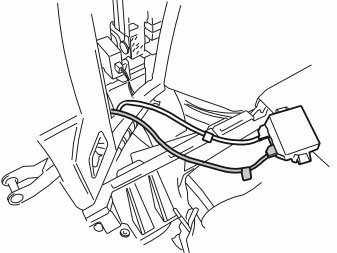

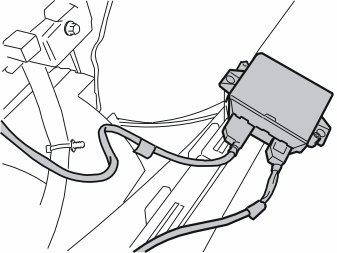

- Connect the control module to the pre-routed cable harness. Use the black connector from the existing cable harness
- Connect the cable harness from the sensors to the control module.

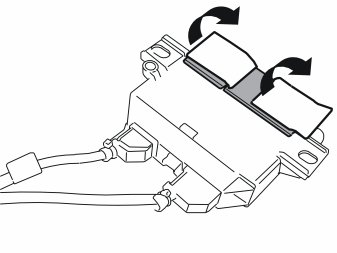

- Remove the backing from the Velcro strips.

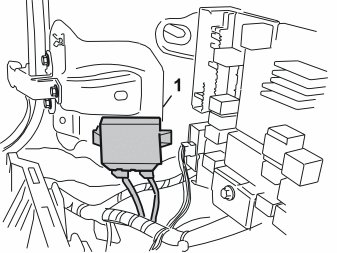

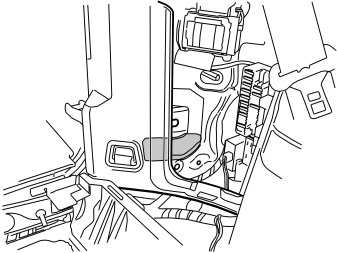

- Press the control module firmly into place on the flat surface behind the panel as illustrated.
The visible left side of the control module must be at the same height as the edge of the plate (1).
- Reinstall the expanded polystyrene seal together with the cable harness from the sensors in the hole in the rear cross member.
Installing the parking assistance module (PAM) and relay
Points 34-43 apply to two wheel drive cars up to and including model year -2004
- Pull off the rubber strip at the rear edge of the door opening to the left-hand rear door opposite the left C-post panel
- Carefully pry off the left-hand C-post panel sides at the top. Use a plastic weatherstrip tool. Then pull until the three clips on the inside release. Do not damage the headlining or the panel
- Remove the panel by pulling upwards slightly and unhooking it from the side panel.
- Remove the covers and the screws underneath for the rear headlining
- Carefully pry off the panel at the rear edge. Use a plastic weatherstrip tool
- Pull the rear edge of the panel downwards until the four clips on the top release
- If the car has lighting in the panel, disconnect the connector
- Pull the panel backwards to release it.
- Carefully pull off the D-post panel. Start at the top edge then pull down until the three clips on the inside release. Do not damage the panel
- Disconnect the connector on the D-post panel (if the car has a loudspeaker in the D-post, the connector is in the loudspeaker)
- Remove the panel by pulling upwards slightly and unhooking it from the side panel.

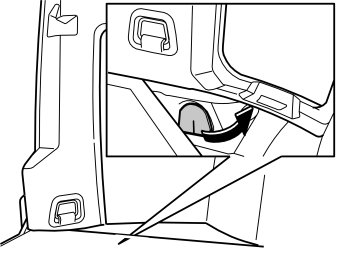

Illustration A shows the removal of the cover for the load securing eyelets
- Fold out the load securing eyelet
- Insert a scriber with an angled tip into the hole in the top of the cover
- Turn the scriber so that the angled tip engages in the reverse of the cover (1). Pull the cover off.
Illustration B applies to cars with two rows of seats
Illustration C applies to cars with three rows of seats
- Remove the two screws (2) from under the cover
- Remove the covers (3) over the front mountings for the left-hand side panel. Pry the covers off. Use a plastic weatherstrip tool or a small screwdriver
- Remove the screws (4)
- Remove the clip (5) at the bottom of the storage compartment in the panel (Applies to cars with three rows of seats)
- Pull out the panel slightly at the top edge so that the clips on the inside release. Remove the panel by pulling it straight upwards.
- Clean the flat surface where the Velcro strips will be applied. Use a mixture of 30% windscreen washer fluid and 70% water
- Wipe dry.
- Connect the control module to the pre-routed cable harness. Use the black connector from the existing cable harness
- Connect the cable harness from the sensors to the control module.
- Remove the backing from the Velcro strips.
- Press the control module firmly into place on the flat surface, with the wiring positioned behind the existing thick cable harness as illustrated.
The left side of the control module must be at the same height as the edge of the plate (1).
- Reinstall the expanded polystyrene seal together with the cable harness from the sensors in the hole in the rear cross member.

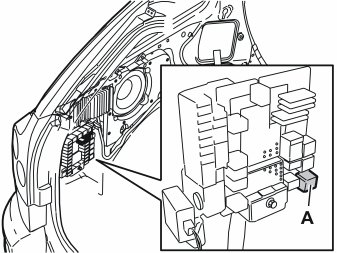

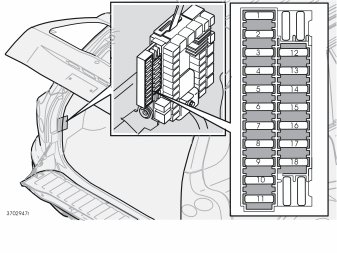

- Take the relay from the kit. Install the relay in position MA1 in the lower front corner of the fuse holder.
Installing the switch
- Applies to cars from model year 2005-: Proceed directly to point 45.
- Only applies to cars up to and including model year -2004: Install a 20A fuse from the kit in position 15 in the rear fuse holder.
Illustration A
- Remove the blind cover plug from the 12V socket
- Take a scriber with an angled tip
- Insert the angled end of the scriber in the joint on the underneath of the surround for the switch unit.
Illustration B
- Carefully pull out the surround using the scriber along the underneath of the surround. The surround is secured by three mounting lugs at the top and lower edges. Do not damage the surround
- Place the surround to one side.
Hint: The surround with four button spaces can be replaced by a surround with seven button spaces if necessary. This surround is purchased separately.
The switch can be installed in any location.
- Remove the switch blank. Install the new switch (1)
- Reinstall the surround and the blind cover plug for the 12V socket.
Applies only to two wheel drive cars up to and including model year -2004
Reinstall:
- the left-hand side panel using the screws and cover. Tighten the screws in the load securing eyelets. Tighten to 24 Nm (18 lbf.ft.)
- the covers for the load securing eyelets
- The D-post panel with the connector
- the connector for the rear roof lighting (if applicable)
- the rear headlining
- the C-post panel.
Finishing work
- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall the left-hand folding panel and the left floor hatch
- Reinstall the floor hatches and the storage compartment
- Program the software according to the service information in VIDA.
