Electrical Diagrams

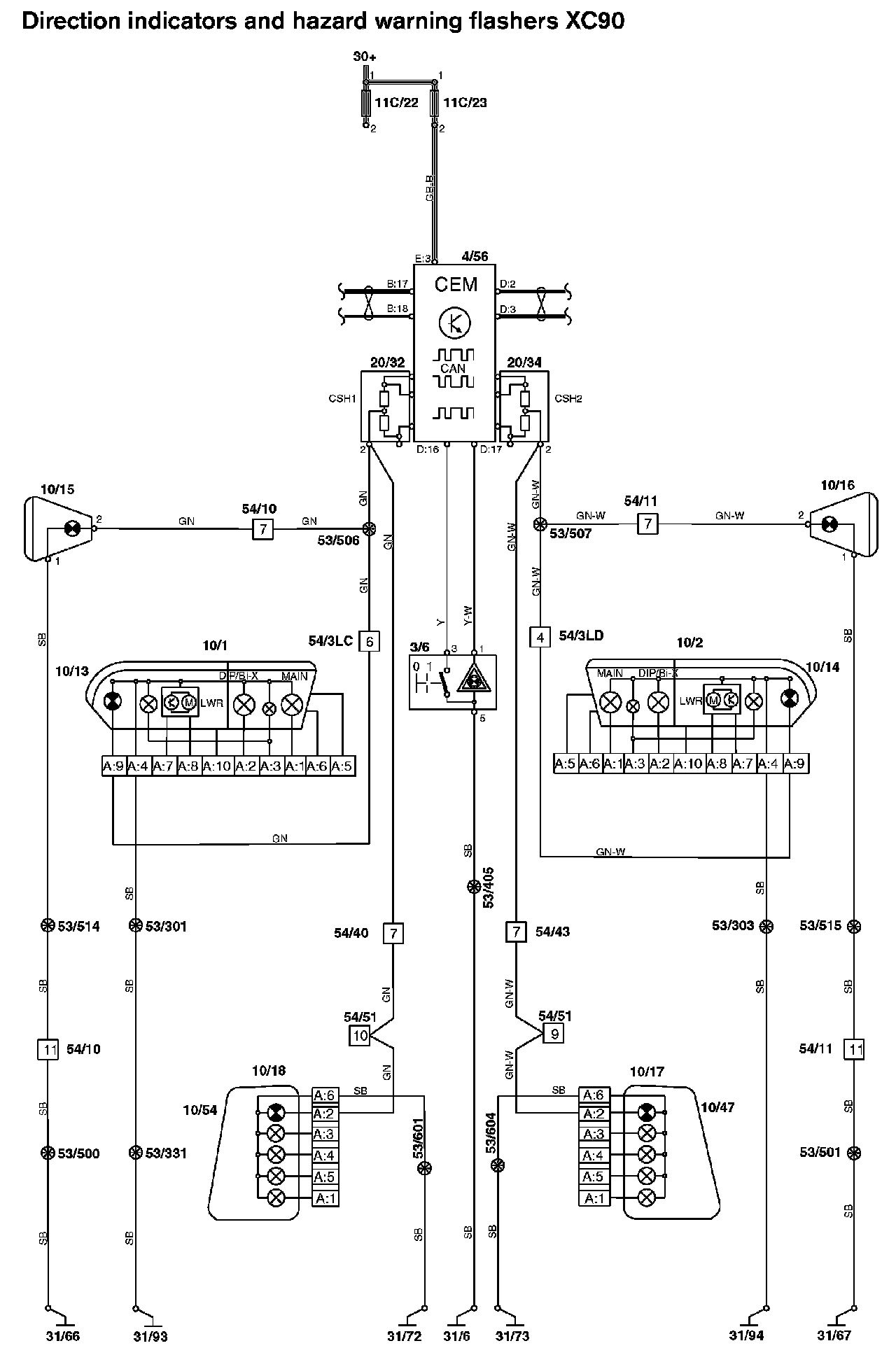

Direction Indicators and Hazard warning Flashers

Direction Indicators And Hazard Warning Flashers:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
