Programming and Relearning

Sunroof module (SRM), calibrating

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Calibration

Calibrating the sunroof module (SRM)




The sunroof must be closed.
Ignition in position I.

1

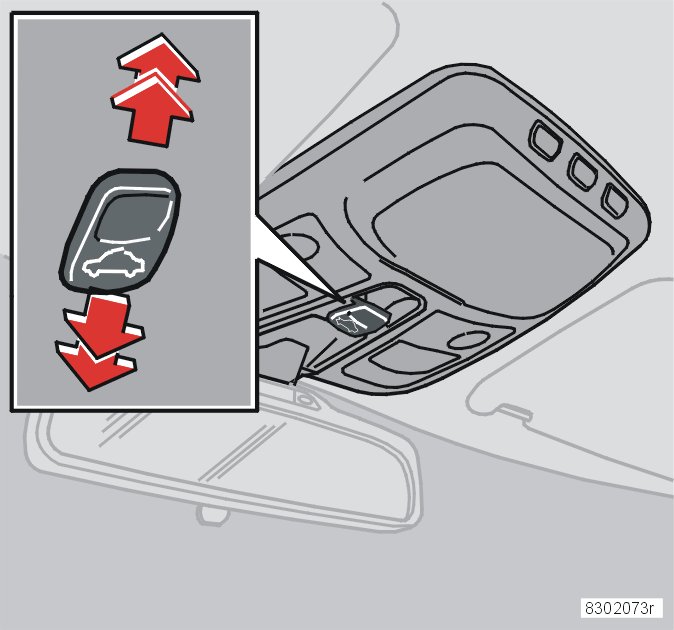

Press the sun roof switch so that the sunroof is in the tilt position.
Release the switch.

2
Press the switch (in the tilt position) again for at least 5 seconds so that the sunroof flickers.
Release the switch.
The calibration is complete.

Note! If the sun roof has not moved to the correct position, carry out calibration again.

Hint: If the sunroof has still not moved to the correct position:
Press the sunroof switch so that the sunroof moves to the rearmost position (completely open).
Release the switch.
Press the switch (in the completely open position) in again for at least 5 seconds so that the sunroof flickers.
Release the switch.
Close the sunroof and carry out calibration again. See steps 1 and 2 above.
