Signal Specification, Subwoofer Module (SUB)

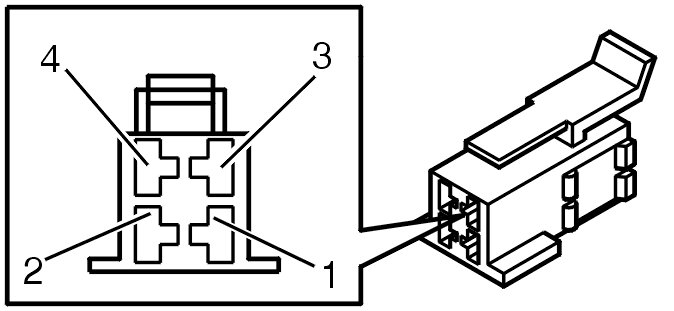

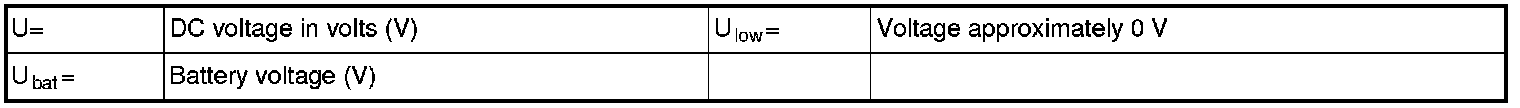

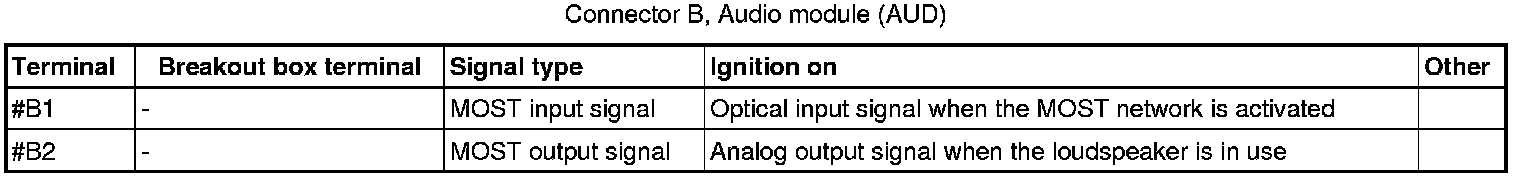

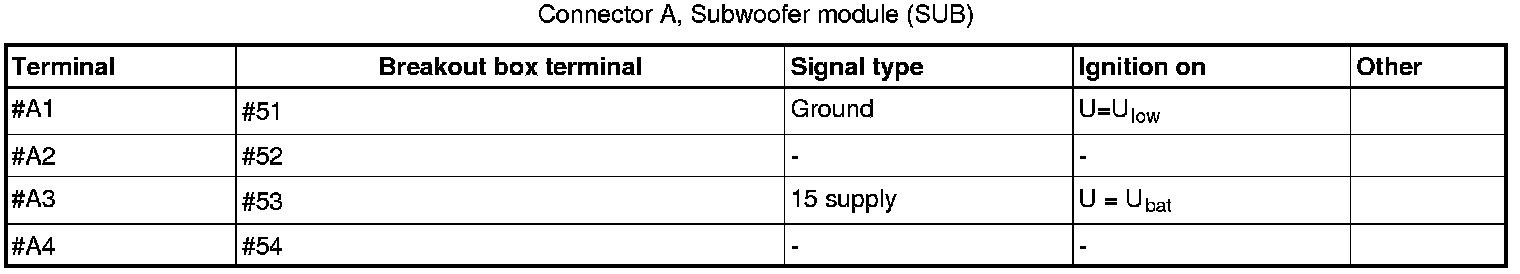

Signal specification

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
