System Overview

System overview

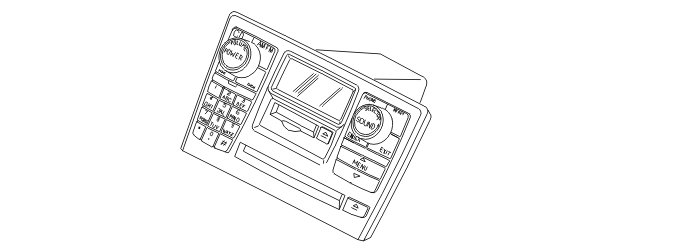

Infotainment control module (ICM)




The infotainment control module (ICM) acts as a gateway between the CAN and MOST networks. It also acts as the master control module in the MOST network and checks the other control modules. The infotainment control module (ICM) consists of the following components:
- display/printed circuit board
- left-hand keypad
- right-hand keypad
- remote controls (up to two units).
The infotainment control module (ICM) controls functions run on the MOST network via its user interface. The command is transmitted from the infotainment control module (ICM) to the other control modules in the network. These implement the requested functions, for example sound playback, changing sound sources and radio settings. The infotainment control module (ICM) also controls the Security on MOST function.
For information about the functions controlled by the infotainment control module (ICM) but implemented by other control modules in the MOST network, see Design and Function for each control module and for the MOST network.
The infotainment control module (ICM) is in the center console. The control module is removed from the center console for replacement. The keypad unit and display/printed circuit board can be replaced separately. These are removed by detaching the front panel on the infotainment control module (ICM).
The infotainment control module (ICM) communicates with other control modules via CAN and MOST communication. MOST communication is via a fiber optic communication link.
The control module checks activations and input and output signals via an integrated diagnostic system. A diagnostic trouble code (DTC) is stored if the infotainment control module (ICM) detects a fault.
Any diagnostic trouble codes (DTCs) are stored in the control module memory. This information can be read off using VIDA via the data link connector (DLC) in the car.
A simple way to ensure that the infotainment control module (ICM) is powered and grounded is to check that the button lighting on the infotainment control module (ICM) is lit when the ignition key is in position I or II. The infotainment control module (ICM) is powered and grounded if the button lighting activates.
For further information, also see Signal specifications.

Signals

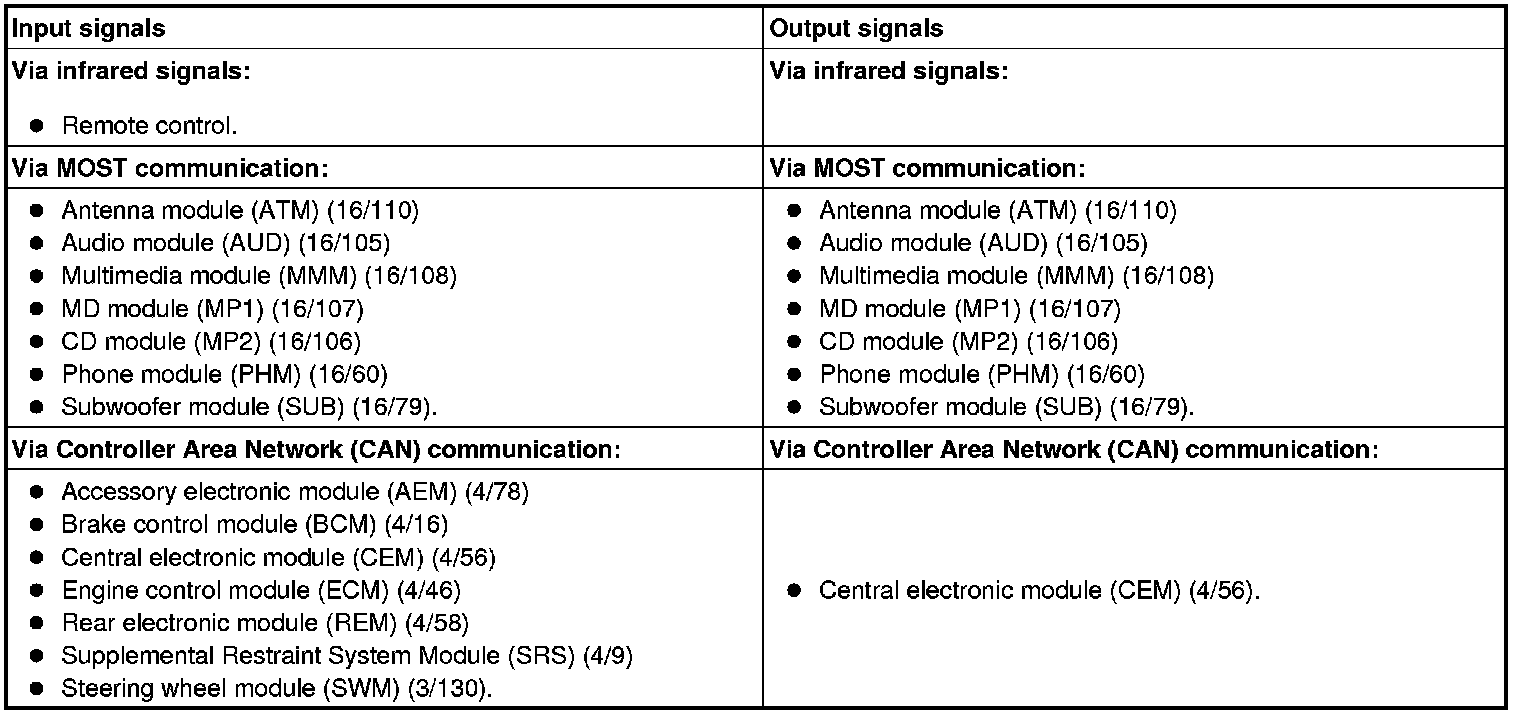

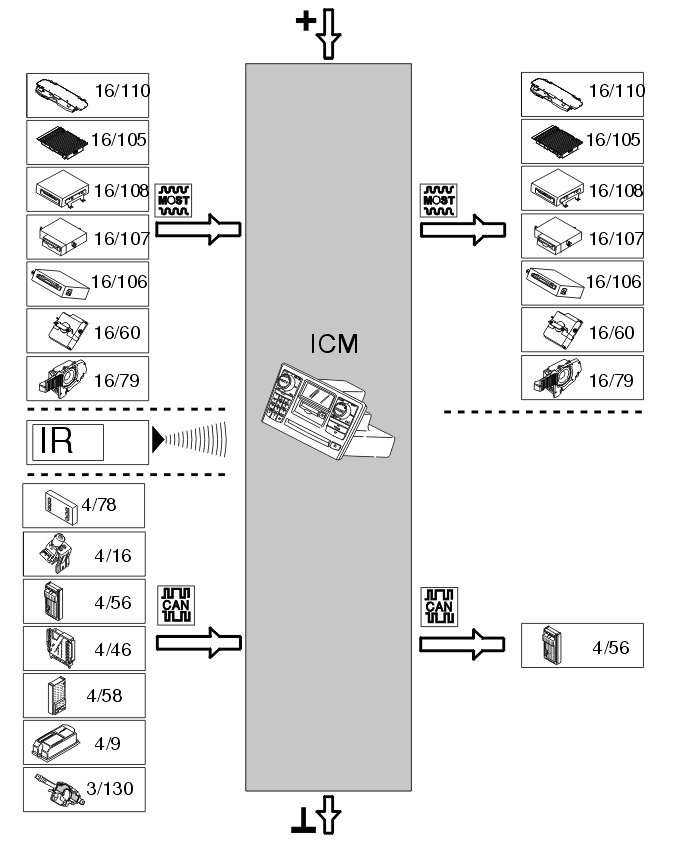

The following table summarizes the input signals to and output signals from the infotainment control module (ICM). The signal types are divided into infrared signals, MOST communication and CAN communication. The illustration below displays the same information with the Volvo component designations.
