Antitheft Motion Sensor: Locations

Alarm components

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Alarm components

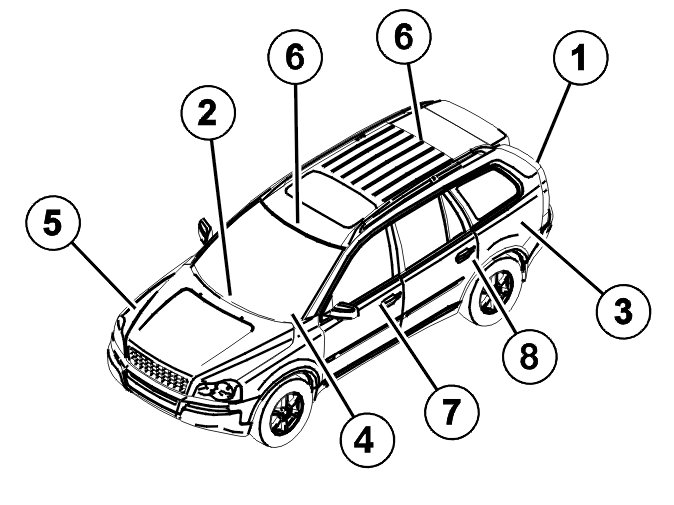

Location Of Components (Alarm Components):

Lock and alarm components
1. Lock mechanism, trunk lid and switch, cargo compartment lighting
2. Sun sensor and alarm LED
3. Level sensor for the alarm
4. Immobilizer antenna unit
5. Siren
6. Volume sensor, alarm
7. Front door lock mechanism
8. Lock unit rear door.
