Rear Door Window Glass: Service and Repair

Window, rear side door, replacing

Replacing the side window
Open the window half way.

Remove:
- the door panel. See Panel, rear side door, replacing Panel, Rear Side Door, Replacing
- the run-off profile. See Run-off profile and bracket Run-Off Profile And Bracket.

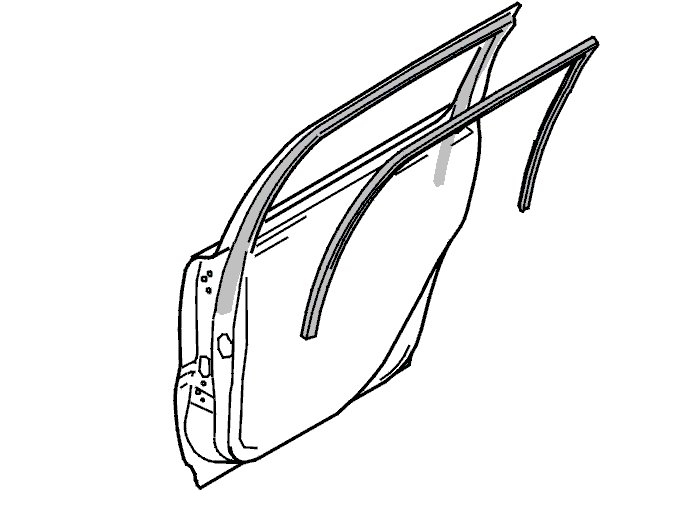

- the weatherstrip around the window.
(Removed internally in the door).
- Drill out the two blind rivets.




- Remove the screw holding the guide rail.
(The lower screw in the illustration.).

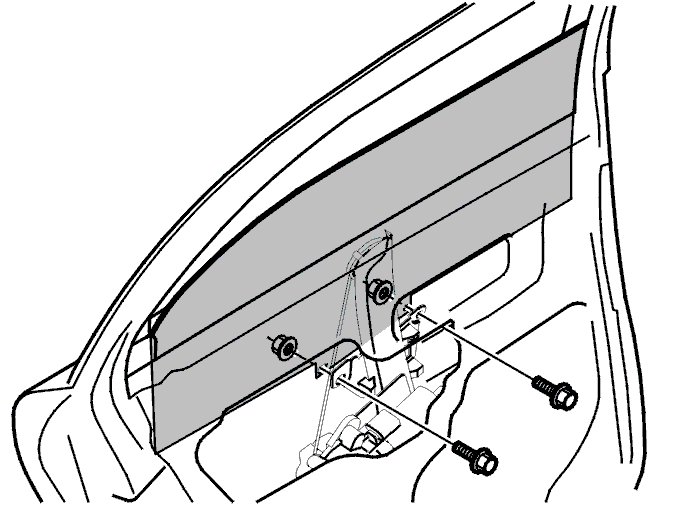

Remove the two screws and nuts.
Lift the window out through the window opening.

Install:
In reverse order.
